315 - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

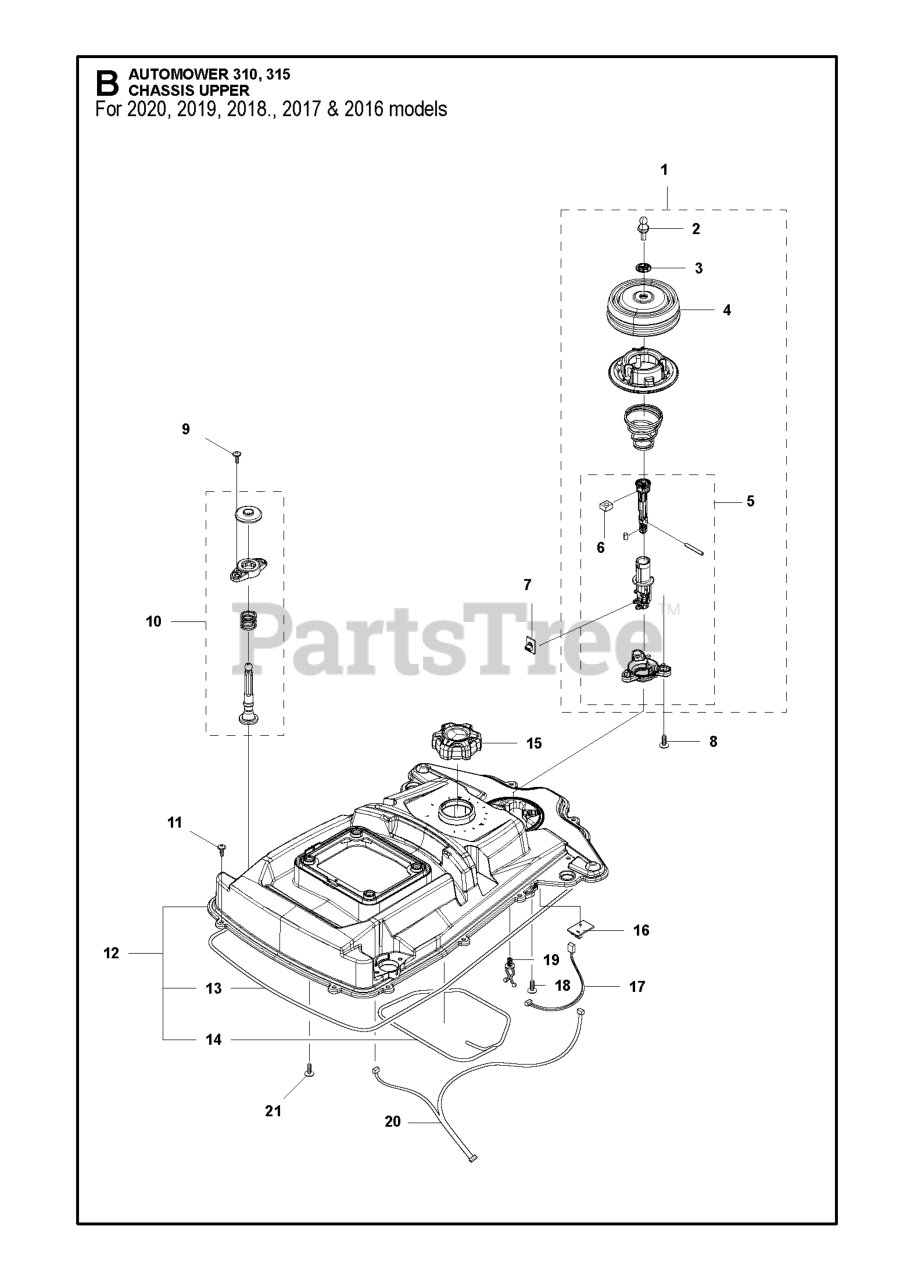

CHASSIS UPPER Parts Diagram

  • Title

1

Husqvarna 581620903

JOYSTICK KIT

Note: Joystick KIT Front

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580526701

STUD SNAPLOC

Note: Stud

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 579525701

WASHER JOYSTICK

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 579474601

BELLOWS LIFT-COLLISION

Note: Bellows

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 587448802

JOYSTICK KIT

Note: Joystick ASSY

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 592852301

PRINTED CIRCUIT ASSY PCBA LIFT

Note: PCBA Lift Sensor

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 594058601

JOYSTICK ASSY REAR

Note: Joystick KIT Rear

$22.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587448902

CHASSIS KIT

Note: Chassis KIT

$74.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574874709

SEALING STRIP P 15 CHASSI LOW

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 574874708

SEALING STRIP P15 UPPER
(Superseded to 588616101)

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585281401

KNOB HEIGHT ADJUSTMENT

Note: Knob

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 592909501

PRINTED CIRCUIT ASSY COLLISION

Note: PCBA Collision Sensor

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585208501

LOOM LIFT, COLLISION

Note: Loom Lift-Collision

$11.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder Twist Lock

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588797801

WIRING ASSY HMI

Note: Loom

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days
