315 - Husqvarna Automower Robotic Lawn Mower (Original) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

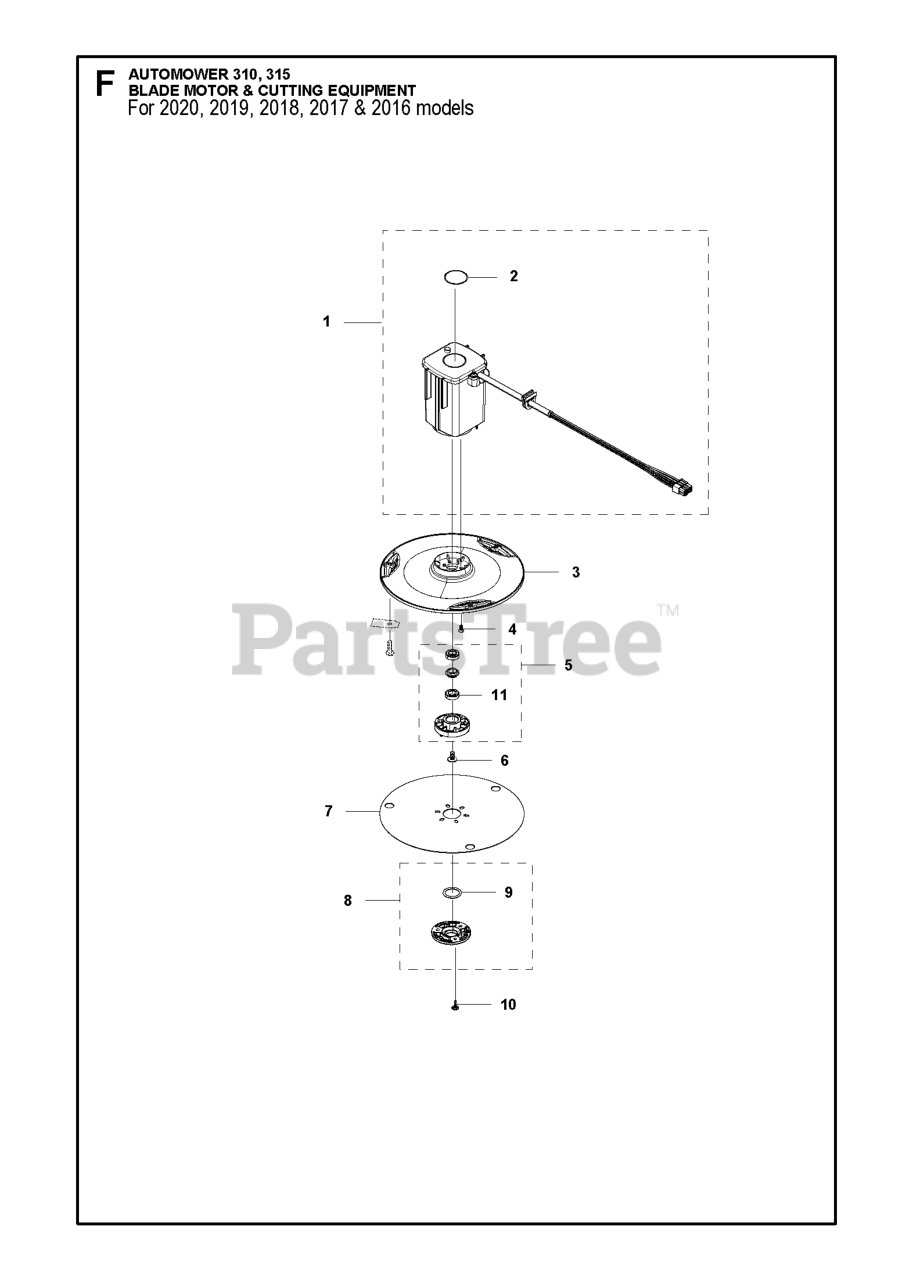

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

1

Husqvarna 501843701

MOTOR ASSY

Note: Motor ASSY

$170.99

$

Usually ships in 3-10 days

0

2

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter

$51.99

$

Usually ships in 3-10 days

0

3

Husqvarna 597422201

NEEDS DESCRIPTION
(Superseded to 531177401)

Note: From Serial number 200602356-

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 585296902

NEEDS DESCRIPTION

Note: From Serial number 1838XXXX-2006XXXXX

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 585296901

CUTTING DISC CUTTING WIDTH 22

Note: Up to Serial number 1837XXXXX

$17.99

$

In Stock, only 1 left!

0

4

Husqvarna 590508701

SCREW HEXAGON SOCKET BUTTON HE

Note: Screw

$3.99

$

In Stock, only 3 left!

0

5

Husqvarna 588421702

BEARING HOUSING ASSY

Note: Bearing Housing ASSY

$26.99

$

In Stock, only 3 left!

0

6

Husqvarna 535076001

SCREW

Note: Screw

$4.99

$

In Stock, Qty 17

0

7

Husqvarna 598794801

NEEDS DESCRIPTION

Note: From Serial number 200602356-

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585297001

SKID PLATE

Note: Up to Serial number 2006XXXXX

$17.99

$

In Stock, only 2 left!

0

8

Husqvarna 587449601

COVER KIT BEARING

Note: Bearing Cover

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 585297501

O-RING 20X2,5 MM

Note: O-Ring

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

11

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

11

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$319.99

$

Usually ships in 3-10 days

0
