315 - Husqvarna Automower Robotic Lawn Mower (2017-01) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

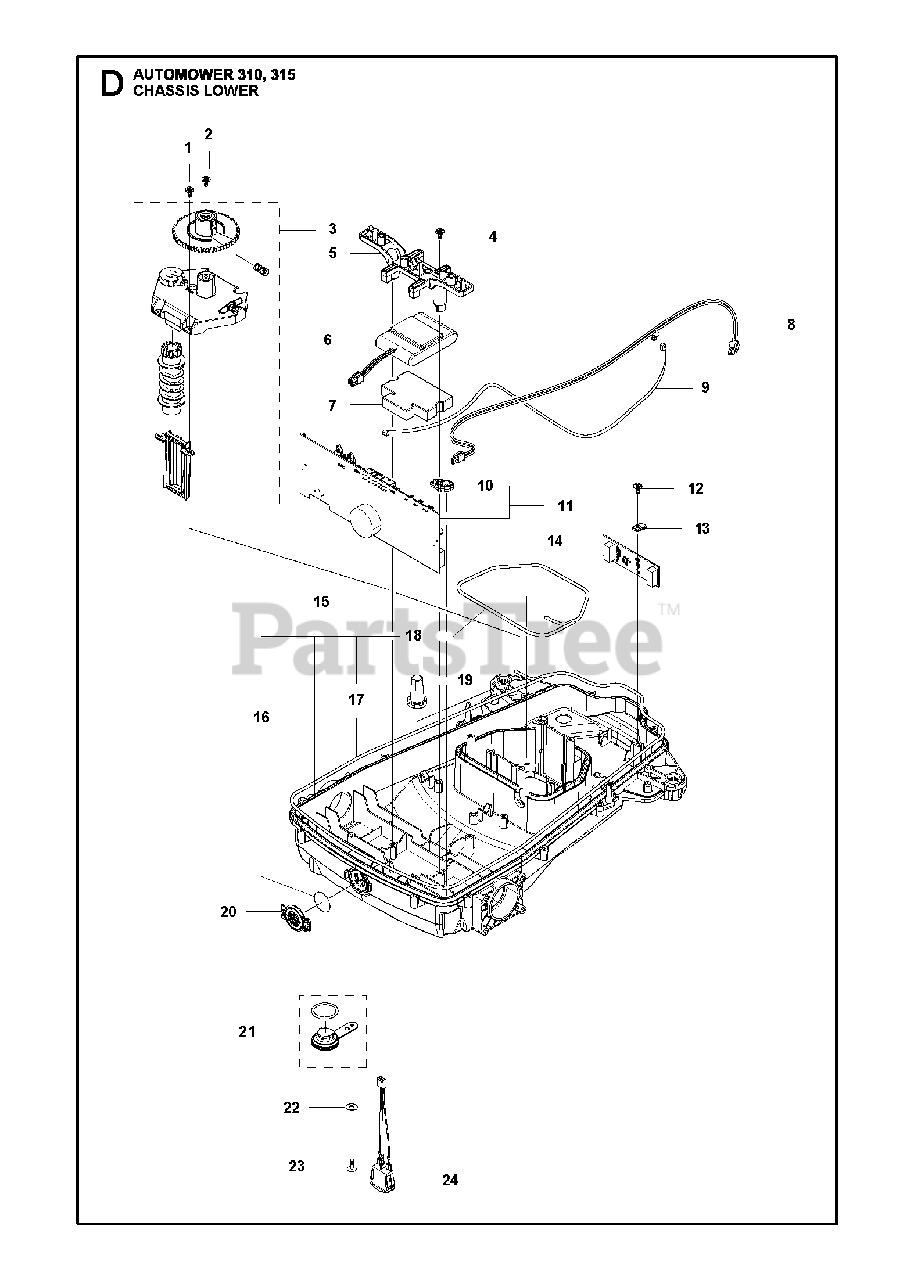

CHASSIS LOWER Parts Diagram

  • Title
1

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501106601

Cover Kit

Note: Cover KIT

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585304701

HOLDER BATTERY
(Superseded to 589498001)

Note: Holder Battery

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 584852801

BATTERY
(Superseded to 589586201)

Note: Battery

$170.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587249601

WEIGHT CENTER

Note: Weight

$26.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585539001

LOOM CHARGING LINK

Note: Loom Charging

$

$

Not available

9

Husqvarna 579708201

LOOM LOOP SENSOR

Note: Loom Loop Sensor

$13.99

$

Usually ships in 3-10 days

0

10

Husqvarna 585538301

CLIP PCB

Note: Clips

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 588779003

PCB MAIN BOARD
(Superseded to 592851801)

Note: Main Board

$262.99

$

Usually ships in 3-10 days

0

12

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 588903001

PRINTED CIRCUIT ASSY LOOP SENS
(Superseded to 592852701)

Note: Sensor Board

$62.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587449201

CHASSIS KIT LOWER
(Superseded to 587449202)

Note: Chassis Lower KIT

$109.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter

$51.99

$

Usually ships in 3-10 days

0

17

Husqvarna 574874709

SEALING STRIP P 15 CHASSI LOW

Note: Sealing Strip (1 pcs 5 mm)

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 574874708

SEALING STRIP P15 UPPER
(Superseded to 588616101)

Note: Sealing Strip (1 pcs 5 mm)

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 586342601

COLUMN FRONT

Note: Pillar

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 586038901

COVER AIR FILTER
(Superseded to 586038902)

Note: Cover Filter

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581621202

PLUG KIT

Note: Plug KIT

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 734113741

WASHER

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 579708701

LOOM ON/ OFF

Note: Loom On-Off

$34.99

$

Usually ships in 3-10 days

0
