315 - Husqvarna Automower Robotic Lawn Mower (2015-03) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

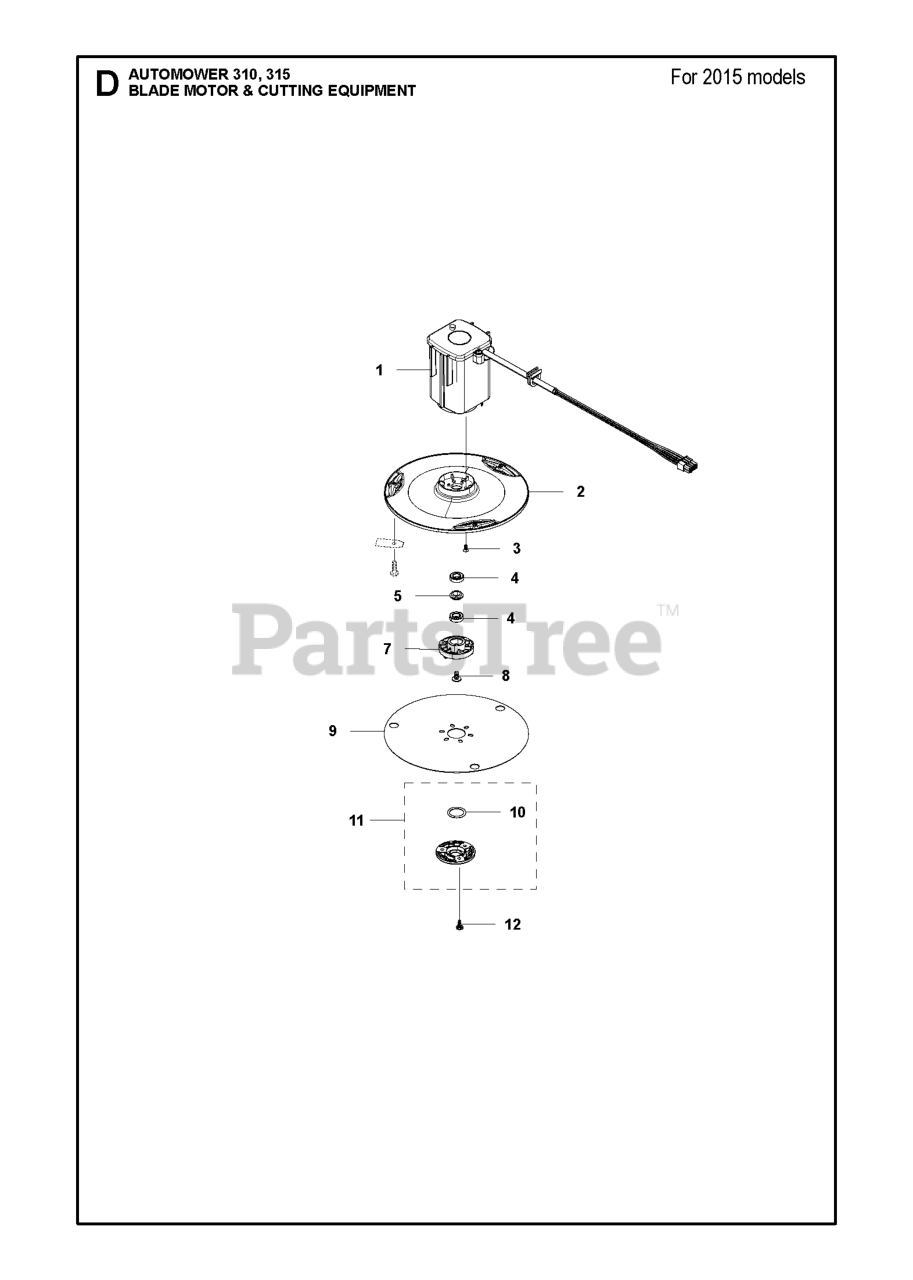

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title
1

Husqvarna 501843701

MOTOR ASSY

$170.99

$

Usually ships in 3-10 days

0

4

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 585297501

O-RING 20X2,5 MM

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

2

Husqvarna 585296901

CUTTING DISC CUTTING WIDTH 22

$17.99

$

In Stock, only 1 left!

0

9

Husqvarna 585297001

SKID PLATE

$17.99

$

In Stock, only 2 left!

0

3

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 587449601

COVER KIT BEARING

$11.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 17

0

5

Husqvarna 585297701

SLEEVE 10X5 MM

$

$

Not available

7

Husqvarna 585573301

BEARING HOUSING SKID PLATE

$

$

Not available

4

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$319.99

$

Usually ships in 3-10 days

0
