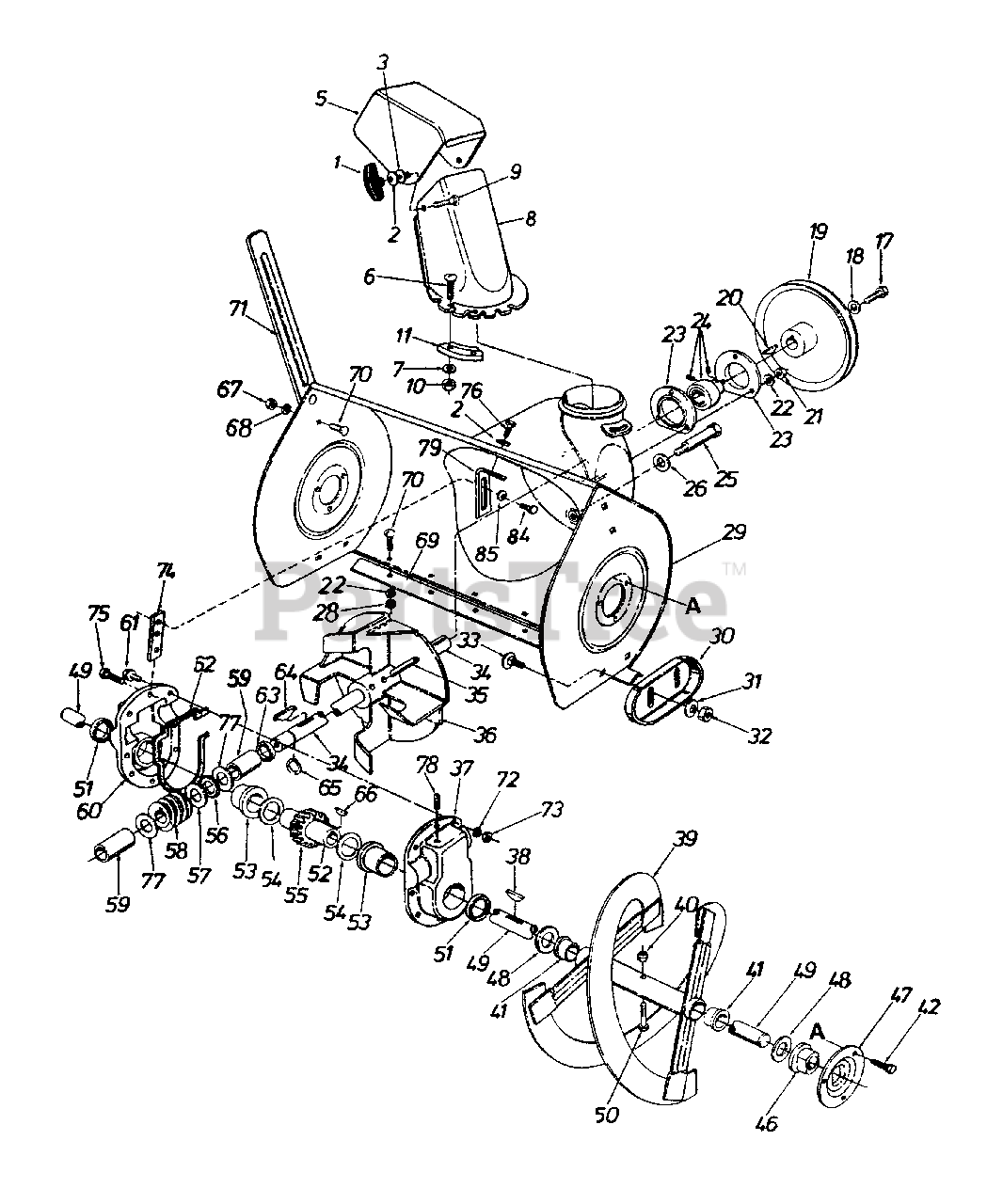

315-980I000 - MTD Snow Thrower (1995) Main Housing Assembly Parts Diagram

Snow Thrower

Main Housing Assembly Parts Diagram

  • Title

1

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0242

Bell. Washer .345 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0231

Flat Washer .344 I.D. x 1.125 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

5

MTD 731-0846B

Upper Black Plastic Chute
(Superseded to 731-0846C)

$52.99

$

In Stock, only 3 left!

0

6

MTD 710-0255

Truss Mach Scr 1/4-20 x .75
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0142

Flat Washer .281 I.D. .50 O.D. x .063

$4.99

$

In Stock, Qty 20+

0

8

MTD 731-0840B

Lower Black Plastic Chute
(Superseded to 931-0840B)

$84.99

$

Usually ships in 3-6 days

0

9

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0107

Hex . Cent. L-Nut 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

MTD 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0371

Hex Screw 5/16-18 x .88
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

18

MTD 736-0242

Bell. Washer .345 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

19

MTD 756-0243

1/2" V-Pulley .875 I.D. x 10.12 O.D.

$94.99

$

Usually ships in 3-6 days

0

20

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4 Dia. HT

$4.99

$

In Stock, Qty 12

0

21

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0119

L-Wash 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 05244

Bearing Housing
(Superseded to 05244B)

$23.99

$

Usually ships in 3-6 days

0

24

MTD 741-0185

Self-Aligning Bearing .875 I.D.
(Superseded to 941-0185)

$66.99

$

In Stock, only 1 left!

0

25

MTD 711-0640

Belt Keeper Studs 3/8-16 x 2.75

$7.99

$

Usually ships in 3-6 days

0

26

MTD 736-0105

Bell-Washer .400 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 705-5133A

30" Snowthrower Housing Ass'y.

Variations

MTD 705-5133A-0638

No Longer Available HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

MTD 705-5134A

33" Snowthrower Housing Ass'y.

Variations

MTD 705-5134A-0637

No Longer Available HOUSING AS - POWDER BLACK (0637)

$

$

Not available

MTD 705-5134A-0638

No Longer Available HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

30

MTD 784-5038A

Reversible Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

31

MTD 736-0105

Bell-Washer .400 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-0342

Hex Jam Nut 3/8-16
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

33

MTD 710-0790

Carriage Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

34

MTD 738-0276

Blower Axle

$102.99

$

Usually ships in 3-6 days

0

35

MTD 715-0118

Spring Spiral Pin Heavy 5/16 Dia. x 1.7

$12.99

$

In Stock, Qty 7

0

36

MTD 05812

Blower Fan Ass'y. Complete

Variations

MTD 05812-0637

No Longer Available FAN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 717-0297

Gear Housing Half LH
(Superseded to 753-0889)

$

$

Not available

38

MTD 714-0135

#91 Woodruff Key 1/4 x 3/4 Dia.

$4.99

$

In Stock, only 2 left!

0

39

MTD 705-5211

Spiral Ass'y. L.H. - 33"
(Superseded to 684-04195-0637)

$

$

Not available

39

MTD 705-5210

Spiral Ass'y. R.H. - 33"
(Superseded to 705-5210A-0637)

$

$

Not available

39

MTD 705-5207A

Spiral Ass'y. L.H. - 30"
(Superseded to 684-04193)

Variations

MTD 705-5207A-0498

SPIRAL ASM-LH 30" - OLD CUB YELLOW (0498)

$226.99

$

In Stock, only 1 left!

0

MTD 705-5207A-0637

SPIRAL ASM-LH 30" - POWDER BLACK (0637)

$226.99

$

In Stock, only 1 left!

0

MTD 705-5207A-0662

SPIRAL ASM-LH 30" - OYSTER GRAY (0662)

$226.99

$

In Stock, only 1 left!

0

MTD 705-5207A-0638

SPIRAL ASM-LH 30" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5207A-0674

SPIRAL ASM-LH 30" - YARDMAN YELLOW (0674)

$

$

Not available

$187.99

$

Usually ships in 3-6 days

0

39

MTD 705-5206A

Spiral Ass'y. R.H. - 30"
(Superseded to 684-04192)

Variations

MTD 705-5206A-0498

SPIRAL ASM - OLD CUB YELLOW (0498)

$215.99

$

Usually ships in 3-6 days

0

MTD 705-5206A-0637

SPIRAL ASM-RH 30" - POWDER BLACK (0637)

$215.99

$

Usually ships in 3-6 days

0

MTD 705-5206A-0638

SPIRAL ASM-RH 30" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5206A-0662

SPIRAL ASM-RH 30" - OYSTER GRAY (0662)

$

$

Not available

MTD 705-5206A-0674

SPIRAL ASM-RH 30" - YARDMAN YELLOW (0674)

$

$

Not available

$174.99

$

Usually ships in 3-6 days

0

40

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

41

MTD 741-0494

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

42

MTD 710-0726

Hex Wash. HD AB Tap Scr. 5/16 x .75

$4.49

$

In Stock, Qty 20+

0

46

MTD 741-0192

Flange Bearing w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

47

MTD 05845

Bearing Housing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 1 left!

0

48

MTD 736-0250

Flat Washer

$4.49

$

In Stock, Qty 20+

0

49

MTD 738-0733B

Spiral Axle - 30"

$

$

Not available

49

MTD 738-0491

Spiral Axle - 33"

$

$

Not available

50

MTD 710-0891

Shear Bolt 5/16-18 x 1.75

$7.49

$

In Stock, Qty 10

0

51

MTD 721-0146

Oil Seal 1.50 I.D. Garlock (76 x 6223)
(Superseded to 921-0146)

$12.99

$

Usually ships in 3-6 days

0

52

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

MTD 741-0182

Flange Bearing

$

$

Not available

54

MTD 736-0266

Flat Washer 1.5 I.D. x 2.0 O.D. x .03
(Superseded to 936-0266)

$

$

Not available

55

MTD 717-1425

Double Threaded Worm Gear
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

56

MTD 741-0184

Thrust Bearing .88 I.D. x 1.44 O.D. x .078

$16.99

$

Usually ships in 3-6 days

0

57

MTD 736-0291

Flat Washer .88 I.D. x 1.4 O.D. x .125

$11.99

$

Usually ships in 3-6 days

0

58

MTD 717-0299

Worm Gear L.H. Double Thread
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

59

MTD 741-0217

Sleeve Bearing .875 I.D.
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

60

MTD 717-0298

Gear Housing Half - R.H.
(Superseded to 753-0889)

$

$

Not available

61

MTD 710-0376

Hex Scr. 5/16 x 1.00

$3.99

$

In Stock, Qty 20+

0

62

MTD 721-0144

Cork & Rubber Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

63

MTD 721-0145

Oil Seal for .875 I.D. Garlock (76 x 6133)
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

64

MTD 714-0126

#9 HI-Pro Key 3/16 x 3/4 Dia. HT

$4.99

$

In Stock, Qty 12

0

65

MTD 716-0111

Snap Ring for .875 Dia. Shaft

$6.99

$

In Stock, only 4 left!

0

66

MTD 714-0135

#91 Woodruff Key 1/4 x 3/4 Dia.

$4.99

$

In Stock, only 2 left!

0

67

MTD 712-0267

Hex Nut 5/16-18 Optional Parts
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

68

MTD 736-0119

L-Wash. 5/16 I.D. Optional Parts
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

69

MTD 705-5103

Shave Plate - 30"

Variations

MTD 705-5103-0637

No Longer Available BAR SCRAPE - POWDER BLACK (0637)

$

$

Not available

$

$

69

MTD 05378

Shave Plate - 33"
(Superseded to 05378-0637)

Variations

MTD 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

70

MTD 710-0260

Carr. Bolt 5/16 x 18 x .62" Lg. Optional Parts
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

71

MTD 05139A

Drift Cutter Optional Parts
(Superseded to 790-00181-0637)

Variations

MTD 05139A-0498

BLADE-GUIDE (DRIFT - OLD CUB YELLOW (0498)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0665

BLADE-GUIDE (DRIFT - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0674

BLADE-GUIDE (DRIFT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0716

BLADE-GUIDE (DRIFT - CUB YELLOW-99 (0716)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

72

MTD 736-0271

Shakeproof Spring Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

73

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

74

MTD 784-5075

Gear Housing Support Plate 1 x 3/16

$

$

Not available

75

MTD 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

76

MTD 710-0726

Hex Wash. HD AB Tap Scr. 5/16 x .75

$4.49

$

In Stock, Qty 20+

0

77

MTD 736-0291

Flat Washer .88 I.D. X 1.4 O.D. x .125

$11.99

$

Usually ships in 3-6 days

0

78

MTD 737-0175

Plastic Vented Plug 1/4-18 Pipe Thread

$6.99

$

In Stock, only 4 left!

0

79

MTD 784-5076

Gear Housing Support Bracket 1 x 3/16
(Superseded to 784-5076-0637)

Variations

MTD 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

80

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

84

MTD 710-0412

Hex Scr. 1/4-28 x .75

$5.99

$

In Stock, Qty 9

0

85

MTD 736-0270

Bell. Washer.25 I.D. x .88 O.D. x .062

$3.99

$

In Stock, Qty 20+

0

85

MTD 717-0296

Worm Gear Box Ass'y.

$

$

Not available

MTD 737-0168

Gear Case Lubricant; Shell Alvania, 4oz.
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 13

0
