315-150-000 - MTD Snow Thrower (1995) Engine & V-Belt Parts Diagram

Snow Thrower

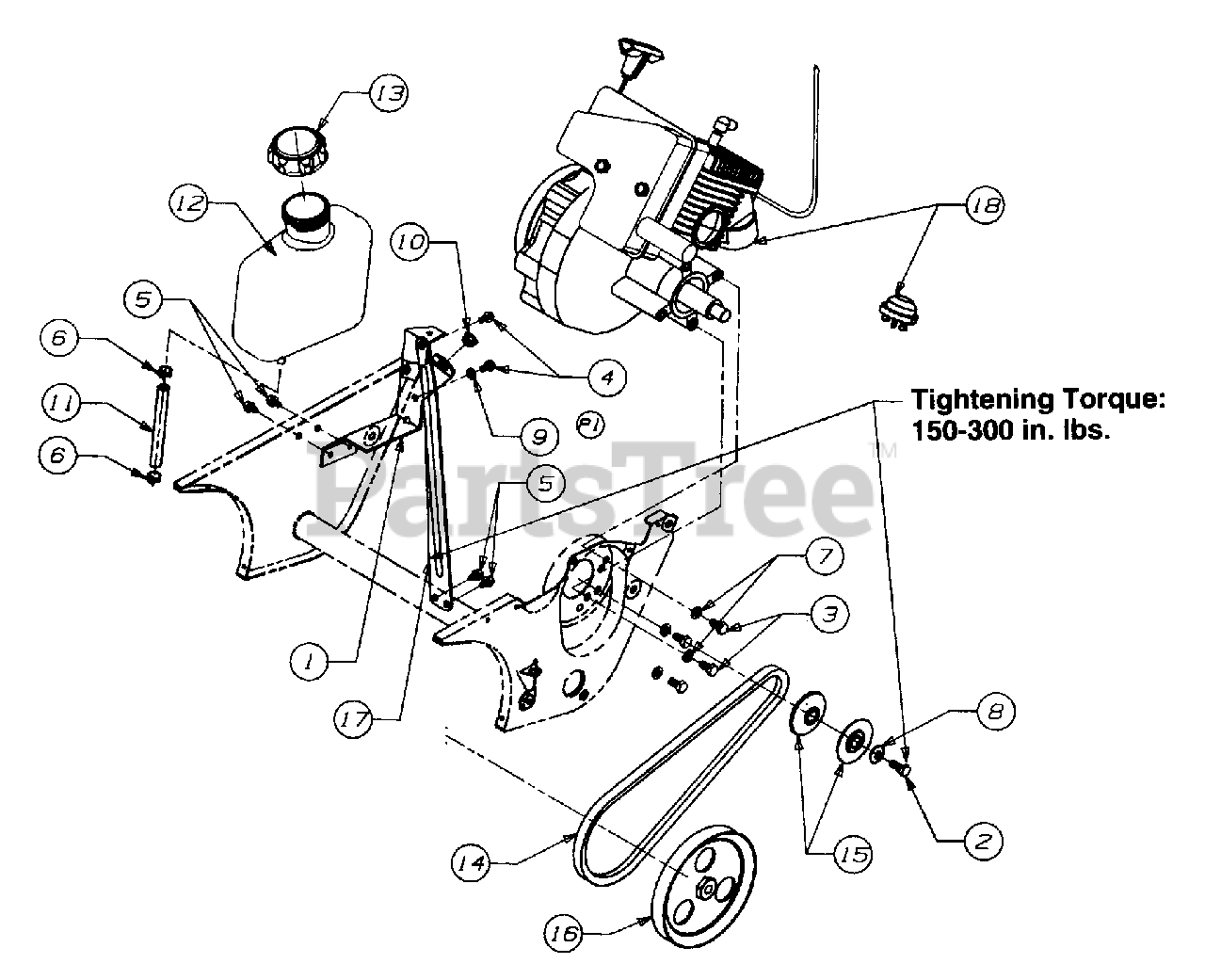

Engine & V-Belt Parts Diagram

  • Title

1

MTD 705-5139

Bracket Tank Support

$

$

Not available

2

MTD 710-0157

Screw Hex

Note: Tightening Torque: 150-300 in. lbs.

$4.49

$

In Stock, Qty 18

0

3

MTD 710-0237

Screw Hex

$4.49

$

In Stock, only 1 left!

0

4

MTD 710-0599

Screw Hex Wash SF

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0892

Screw Hex
(Superseded to 910-0892)

$

$

Not available

6

MTD 726-0205

Clamp Hose

$3.99

$

In Stock, Qty 18

0

7

MTD 736-0119

Washer Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 736-0242

Washer Bell

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0329

Washer Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

MTD 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

11

MTD 751-0535-16

Hose-Fuel Line (16")
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

12

MTD 751-0540

Tank Gas (2 Qt.)
(Superseded to 751-0540A)

$

$

Not available

13

MTD 751-0603

Cap Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

14

MTD 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

15

MTD 756-0416B

Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

16

MTD 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0

17

MTD 784-5603

Brace-Gas Tank

Note: Tightening Torque: 150-300 in. lbs.

Variations

MTD 784-5603-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

18

Obtain From Engine Mfgr.

$

$

Not available
