315-140-131 - Huskee Snow Thrower (1995) (Tractor Supply) Engine & V-Belt Parts Diagram

Snow Thrower

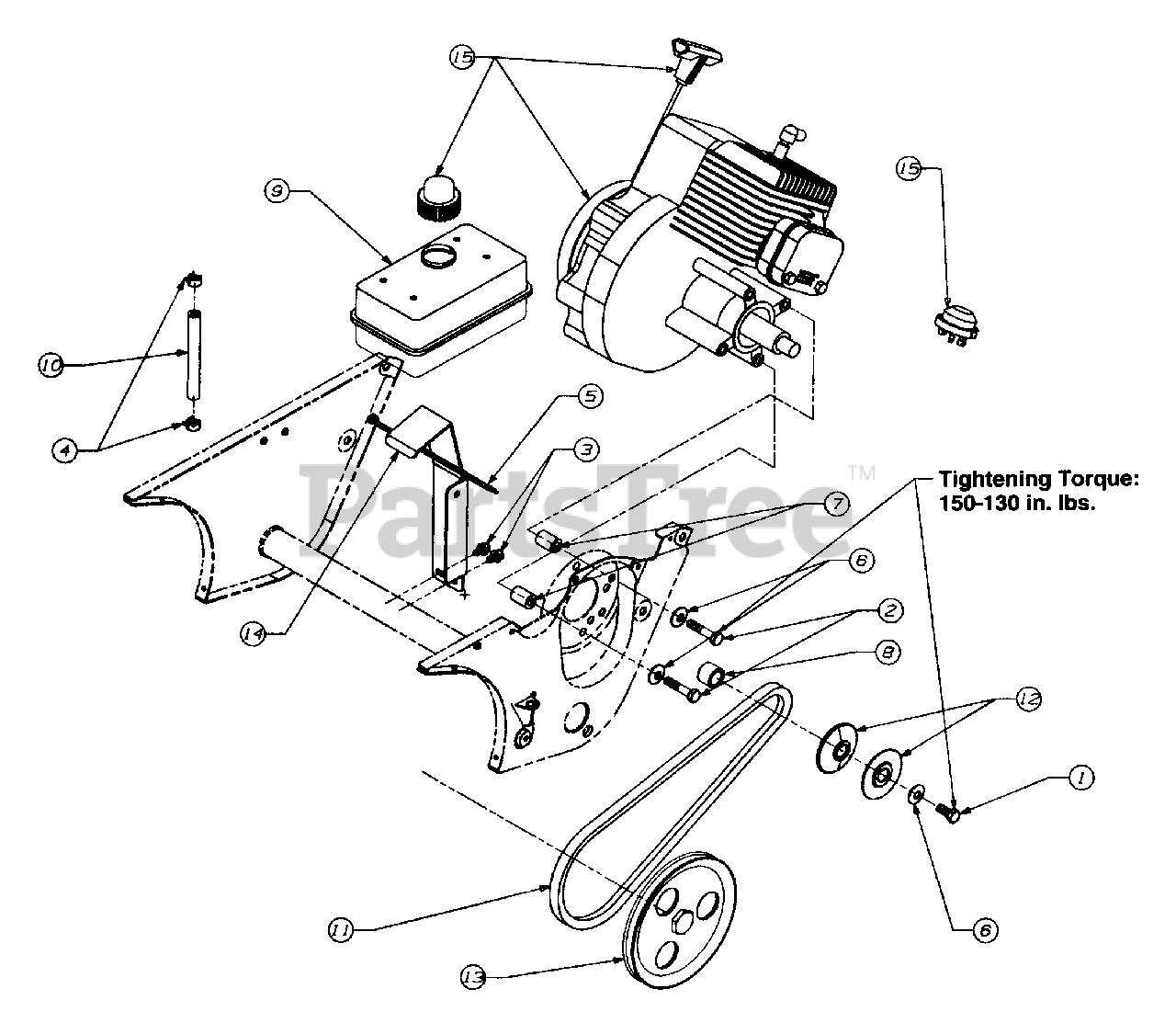

Engine & V-Belt Parts Diagram

  • Title

1

MTD 710-0157

Screw Hex

Note: Tightening Torque: 150-130 in. lbs.

$4.49

$

In Stock, Qty 18

0

2

MTD 710-0442

Screw Hex
(Superseded to 710-0805A)

Note: Tightening Torque: 150-130 in. lbs.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0892

Screw Hex
(Superseded to 910-0892)

$

$

Not available

4

MTD 726-0205

Clamp Hose

$3.99

$

In Stock, Qty 20+

0

5

MTD 726-0225

Tie Cable

$

$

Not available

6

MTD 736-0242

Washer Bell

$4.49

$

In Stock, Qty 20+

0

7

MTD 750-0589

Spacer
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

8

MTD 750-0716

Spacer
(Superseded to 750-0716A)

$

$

Not available

9

MTD 751-0352

Tank-Gas (1 Qt.)
(Superseded to TC-32660A)

$

$

Not available

10

MTD 751-0535-12

Hose-Fuel Line (12")
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

11

MTD 754-0367

V-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

12

MTD 756-0416B

Pulley Half V
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

13

MTD 756-0550

Pulley

$

$

Not available

14

MTD 784-5177

Bracket Engine Support

Variations

MTD 784-5177-0637

No Longer Available BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

15

Obtain From Engine Mfgr.

$

$

Not available
