315-140-000 - MTD Snow Thrower (1995) Cover & Dash Parts Diagram

Snow Thrower

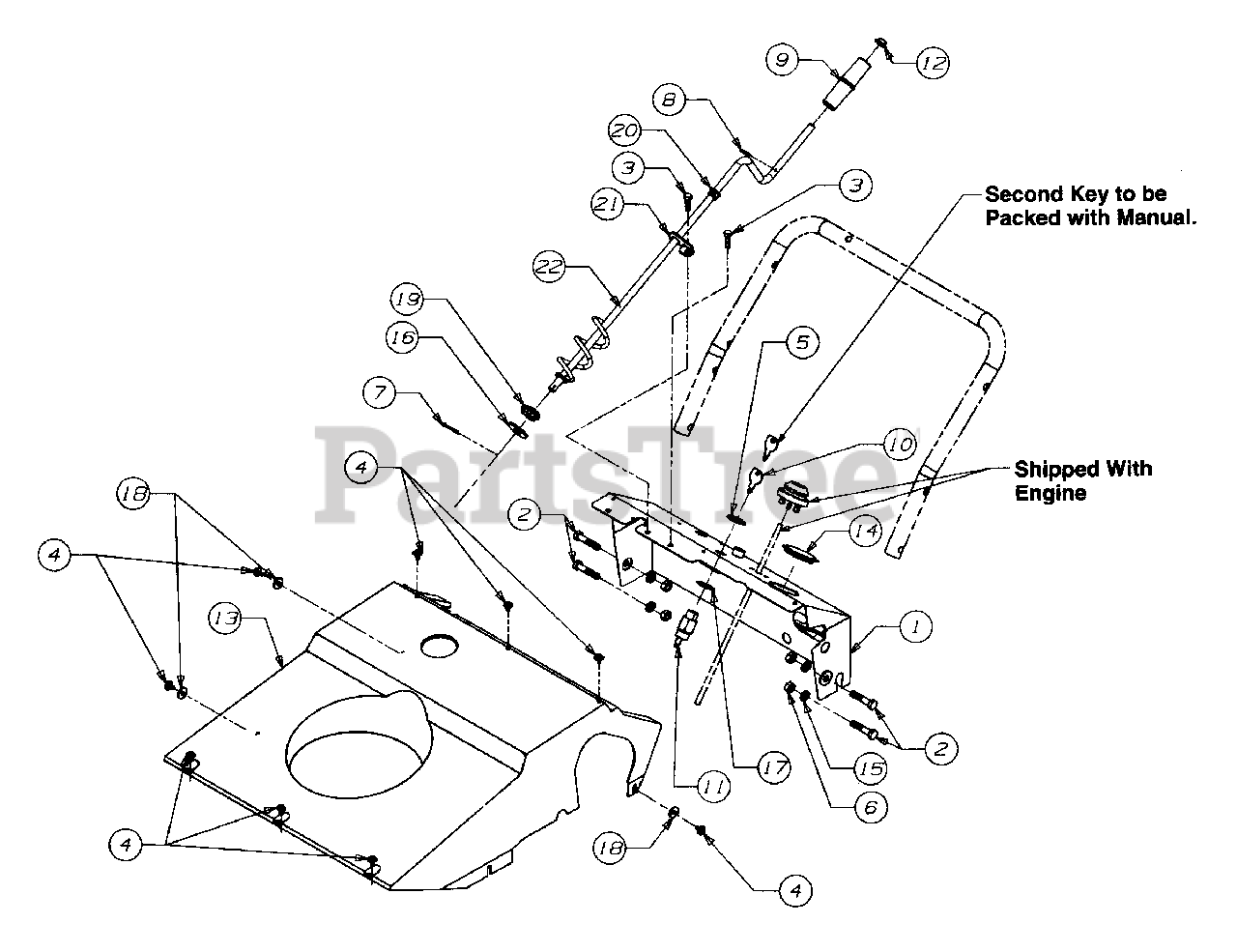

Cover & Dash Parts Diagram

  • Title

1

MTD 684-0056

Dash-21"

Variations

MTD 684-0056-0498

No Longer Available PANEL-DASH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0056-0629

PANEL-DASH - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0056-0637

PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

MTD 684-0056-0638

No Longer Available PANEL-DASH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0056-0662

Dash-21" - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 710-0442

Screw-Hex
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0895

Screw-Hex Tap

$6.49

$

Usually ships in 3-6 days

0

4

MTD 710-1268

Screw-Hex Tap

$4.49

$

In Stock, only 2 left!

0

5

MTD 712-0252

Nut Hex

$5.99

$

Usually ships in 3-6 days

0

6

MTD 712-0267

Nut-Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0507

Pin-Cotter

$4.49

$

In Stock, only 2 left!

0

8

MTD 715-0138

Pin Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

9

MTD 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 5

0

10

MTD 725-0201

Key-Ignition
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

11

MTD 725-1425

Switch-Key
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

12

MTD 726-0100

Nut Push

$4.49

$

In Stock, only 1 left!

0

13

MTD 731-0702

Shroud

$

$

Not available

14

MTD 731-0732

Plug

$

$

Not available

15

MTD 736-0119

Washer Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 736-0133

Washer Flat

$5.49

$

In Stock, Qty 7

0

17

MTD 736-0225

Washer Internal Lock

$4.49

$

In Stock, only 2 left!

0

18

MTD 736-0400

Washer Flat

$5.49

$

In Stock, Qty 12

0

19

MTD 741-0403

Bushing Hex

$

$

Not available

20

MTD 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

MTD 784-5178A

Bracket Chute Crank

$

$

Not available

22

MTD 784-5344

Crank Ass'y. Chute

$

$

Not available
