31451 - Toro Snow Pup Electric Snow Thrower (SN: 008000001 - 008999999) (1968) MAIN FRAME PARTS LIST Parts Diagram

Snow Pup Electric Snow Thrower

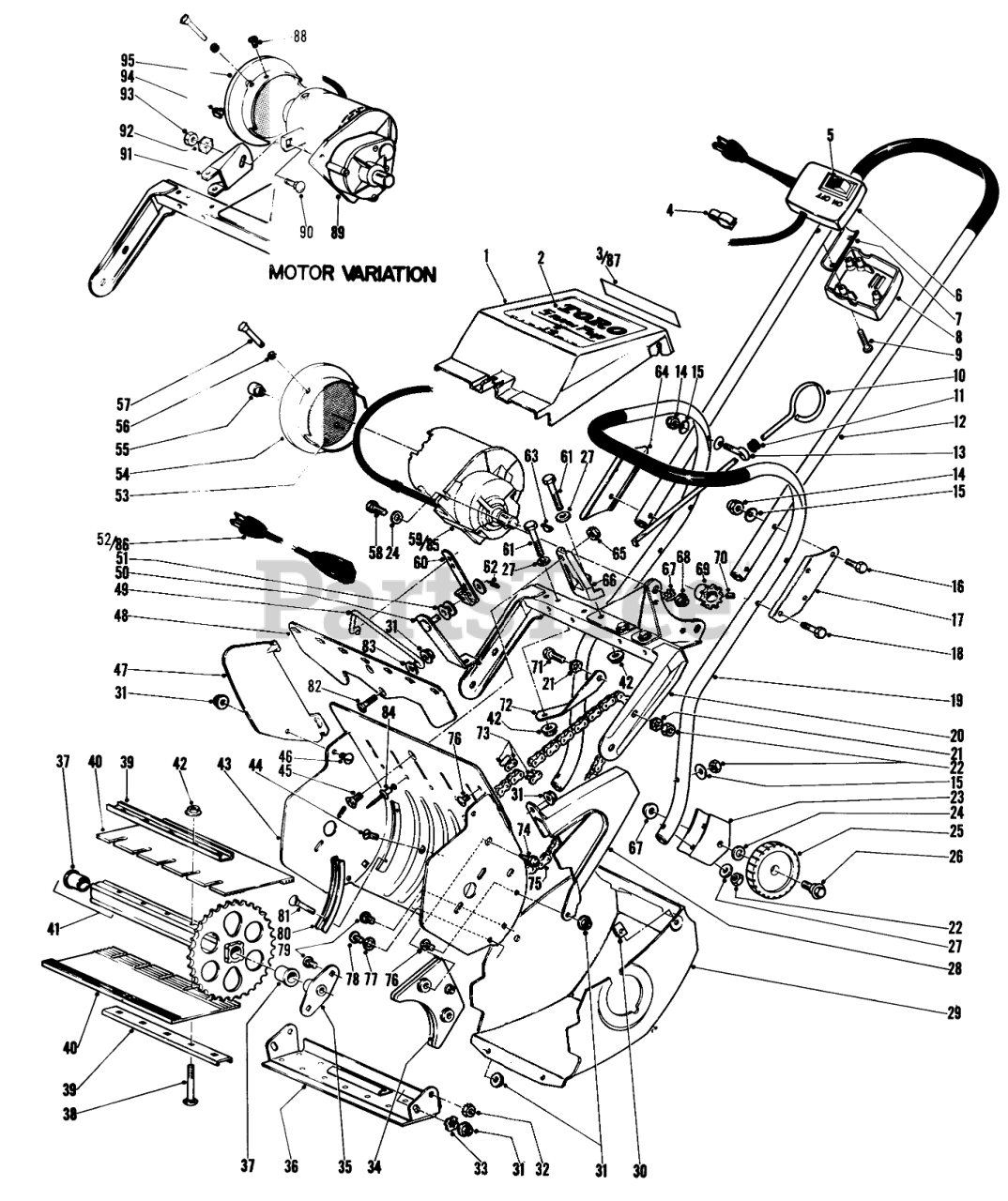

MAIN FRAME PARTS LIST Parts Diagram

  • Title
1

Toro 5-3465

Shroud, Upper

$

$

Currently unavailable

2

Toro 5-3430

Decal

$

$

Currently unavailable

3

Toro 5-3446

Decal

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Toro 5-3447

Switch-Single Throw

$

$

Currently unavailable

6

Toro 5-3450

Switch Housing, Upper

$

$

Currently unavailable

7

Toro 5-3448

Insert, Switch Housing

$

$

Currently unavailable

8

Toro 5-3451

Switch Housing, Lower

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Toro 5-3371

Vane Adj. Rod

$

$

Not available

11

Toro 237-73

GROMMET

$

$

Not available

12

Toro 3-8499

Handle, Upper

$

$

Currently unavailable

13

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

14

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

15

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

16

$

$

Currently unavailable

17

Toro 3-7503

SPLICE PLATE

$

$

Not available

18

$

$

Currently unavailable

19

Toro 4-1629

Handle, Lower

$

$

Currently unavailable

20

Toro 5-3395

Frame Assembly

$

$

Currently unavailable

21

Toro 3290-257

Washer

$

$

Not available

22

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

23

Toro 3-9326

Bracket Wheel

$

$

Currently unavailable

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3-9322

Wheel

$

$

Not available

26

Toro 3-9323

Bolt-Shoulder

$

$

Currently unavailable

27

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3-7496

Chain Guard
(Superseded to 29-5780)

$

$

Not available

29

Toro 5-2104

Lower Shroud

$

$

Currently unavailable

30

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

31

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

32

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

33

Toro 3290-261

Washer

$

$

Currently unavailable

34

Toro 5-0997

Stripper

$

$

Not available

35

Toro 3-9273

Rotor Shaft Assy.

$

$

Not available

36

Toro 3-7491

Skid, Riveted Assy.
(Superseded to 37-1200)

$

$

Not available

37

Toro 3-9271

Bushing

$

$

Not available

38

$

$

Currently unavailable

39

Toro 3-7521

Reinforcing Strap

$

$

Currently unavailable

40

Toro 3-9325

Blade-Rotor

$

$

Not available

41

Toro 3-9272

Sprocket & Tube W.A. Incl. #37

$

$

Not available

42

Toro 3-7544

Nut
(Superseded to 32128-10)

$0.99

$

In Stock, Qty 20+

0

43

Toro 5-2081

Housing

$

$

Currently unavailable

44

$

$

Currently unavailable

45

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

46

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

47

Toro 3-9283

Vane
(Superseded to 52-7060)

$8.99

$

In Stock, Qty 20+

0

48

Toro 3-9276

Mount Vane

$

$

Not available

49

Toro 5-3381

Linkage Vane Adj.

$

$

Currently unavailable

50

Toro 5-3392

Vane Adj. Bracket

$

$

Currently unavailable

51

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 3-8519

100 Ft. Cord

$

$

Currently unavailable

53

Toro 5-3474

Filter Assy.

$

$

Currently unavailable

54

Toro 5-2103

Housing Filter

$

$

Currently unavailable

55

Toro 5-2097

Spacer

$

$

Currently unavailable

56

Toro 237-72

Grommet

$

$

Currently unavailable

57

Toro 5-2334

Oiler

$

$

Currently unavailable

58

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

59

Toro 5-3412

Motor

$

$

Currently unavailable

60

Toro 5-3372

Bracket-Vane Adj.
(Superseded to 28-7870)

$

$

Not available

61

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

62

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

63

$

$

Currently unavailable

64

Toro 3-7504

Plate-Splice

$

$

Not available

65

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

66

Toro 3-7477

Stiffener

$

$

Currently unavailable

67

Toro 3255-18

Lockwasher

$

$

Not available

68

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

69

Toro 3-9464

SPROCKET

$

$

Not available

70

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

71

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

72

Toro 5-2025

Bracket

$

$

Currently unavailable

73

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

74

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 7

0

75

Toro 3-7495

CHAIN

$166.99

$

Usually ships in 3-6 days

0

76

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

77

Toro 3-1032

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

78

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

79

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

80

Toro 3-7498

Handle Plate

$

$

Not available

81

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

82

Toro 32108-91

10-24X1-1/8 FLT HD MS

$

$

Currently unavailable

83

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

84

Toro 3290-278

RIVET
(Superseded to 3290-412)

$3.49

$

In Stock, only 4 left!

0

85

Toro 5-3477

Motor

Note: CANADIAN UNITS

$

$

Currently unavailable

86

Toro 4-1809

Cord-100 Ft.

Note: CANADIAN UNITS

$

$

Currently unavailable

87

Toro 5-3481

Decal

Note: CANADIAN UNITS

$

$

Currently unavailable

88

Toro 32104-9

Screw

Note: U.S. UNITS

$

$

Currently unavailable

89

Toro 5-3470

Motor

Note: U.S. UNITS

$

$

Currently unavailable

90

Toro 3230-2

BOLT-CARR

Note: U.S. UNITS

$1.49

$

Usually ships in 3-6 days

0

91

Toro 5-3473

Bracket Rear

Note: U.S. UNITS

$

$

Currently unavailable

92

Toro 3290-238

WASHER-LOCK

Note: U.S. UNITS

$3.49

$

Usually ships in 3-6 days

0

93

Toro 3217-6

NUT-HEX

Note: U.S. UNITS

$1.49

$

In Stock, Qty 12

0

94

Toro 3290-294

Clip Tinnerman

Note: U.S. UNITS

$

$

Currently unavailable

95

Toro 5-3471

Housing

Note: U.S. UNITS

$

$

Currently unavailable
