31451 - Toro Snow Pup Electric Snow Thrower (SN: 008000001 - 008999999) (1968) HOWARD ELECTRIC MOTOR Parts Diagram

Snow Pup Electric Snow Thrower

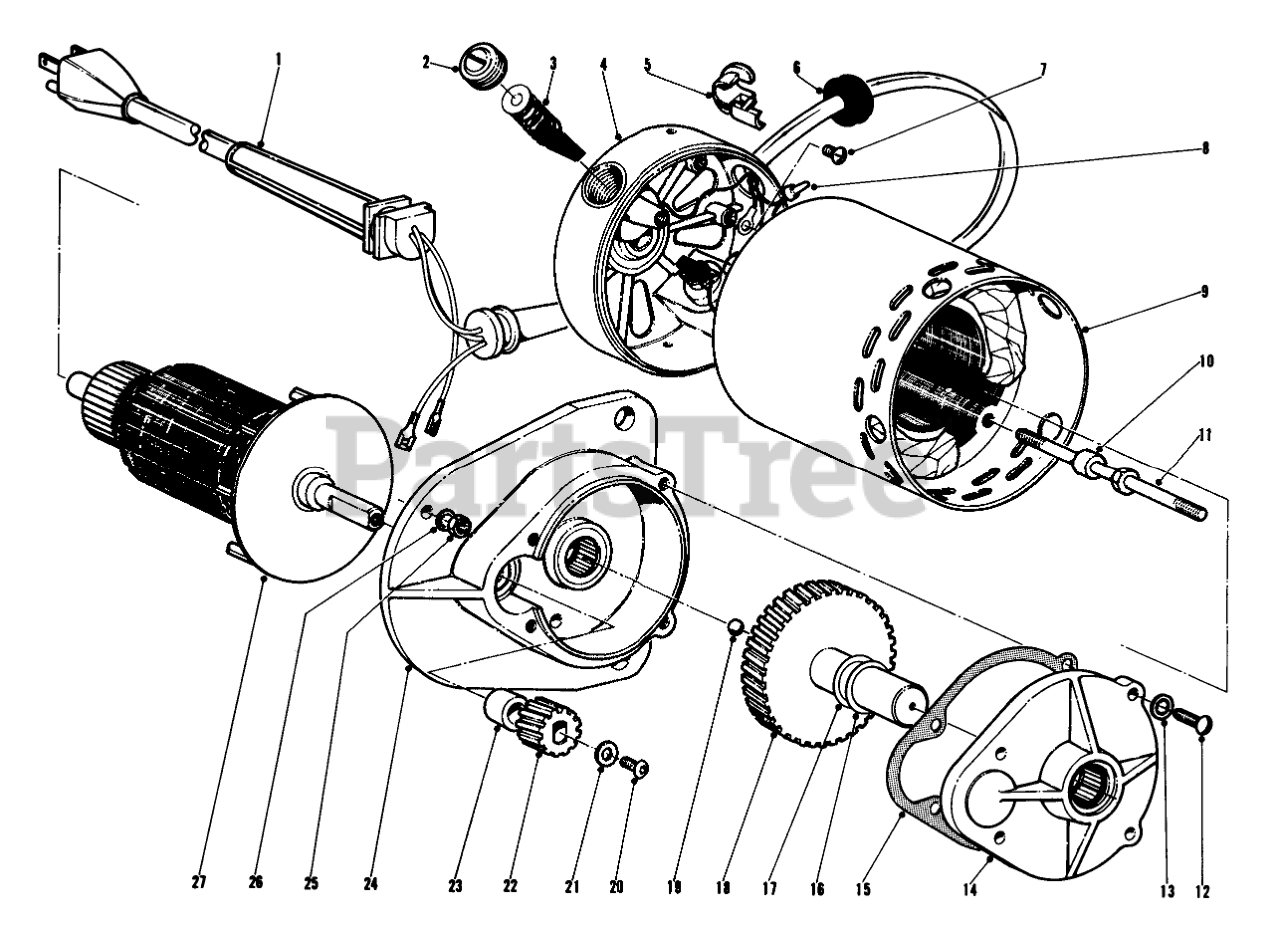

HOWARD ELECTRIC MOTOR Parts Diagram

  • Title

1

Toro 218-369

Cord

$

$

Currently unavailable

2

Toro 218-364

Cap, Brush

$

$

Currently unavailable

3

Toro 218-363

Brush Assembly

$

$

Currently unavailable

4

Toro 218-362

Brush End Housing Assy.

$

$

Currently unavailable

5

Toro 6-289-613

Strain Relief

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

6

Toro 218-350

Grommet

$

$

Currently unavailable

7

Toro 6-730-619

Screw

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

8

Toro 6-161-007

Terminal

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

9

Toro 4-260-010

Frame & Field Assembly

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

10

Toro 6-868-714

Spacer

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

11

Toro 6-908-899

Stud

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

12

Toro 3250-4

SCREW

$

$

Not available

13

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

14

Toro 218-367

Gear Cover Housing

$

$

Currently unavailable

15

Toro 218-366

Gasket

$

$

Currently unavailable

16

Toro 6-869-907

Washer

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

17

Toro 6-869-908

Washer

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

18

Toro 2-399-020

Gear & Output Shaft Assy.

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

19

Toro 255-1

Ball

$

$

Not available

20

Toro 6-732-543

Screw

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

21

Toro 6-868-725

Washer

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

22

Toro 6-260-530

Pinion

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

23

Toro 6-868-985

Spacer

Note: Parts listed for identification only. Obtain from your local Howard dealer.

$

$

Currently unavailable

24

Toro 218-365

Gear Housing Assembly

$

$

Currently unavailable

25

Toro 3220-10

Nut

$

$

Currently unavailable

26

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 218-368

Armature Assy.

$

$

Currently unavailable
