31412 - Toro Snow Pup Snow Thrower (SN: 005000001 - 005999999) (1975) MAGNETO NO. 610659 Parts Diagram

Snow Pup Snow Thrower

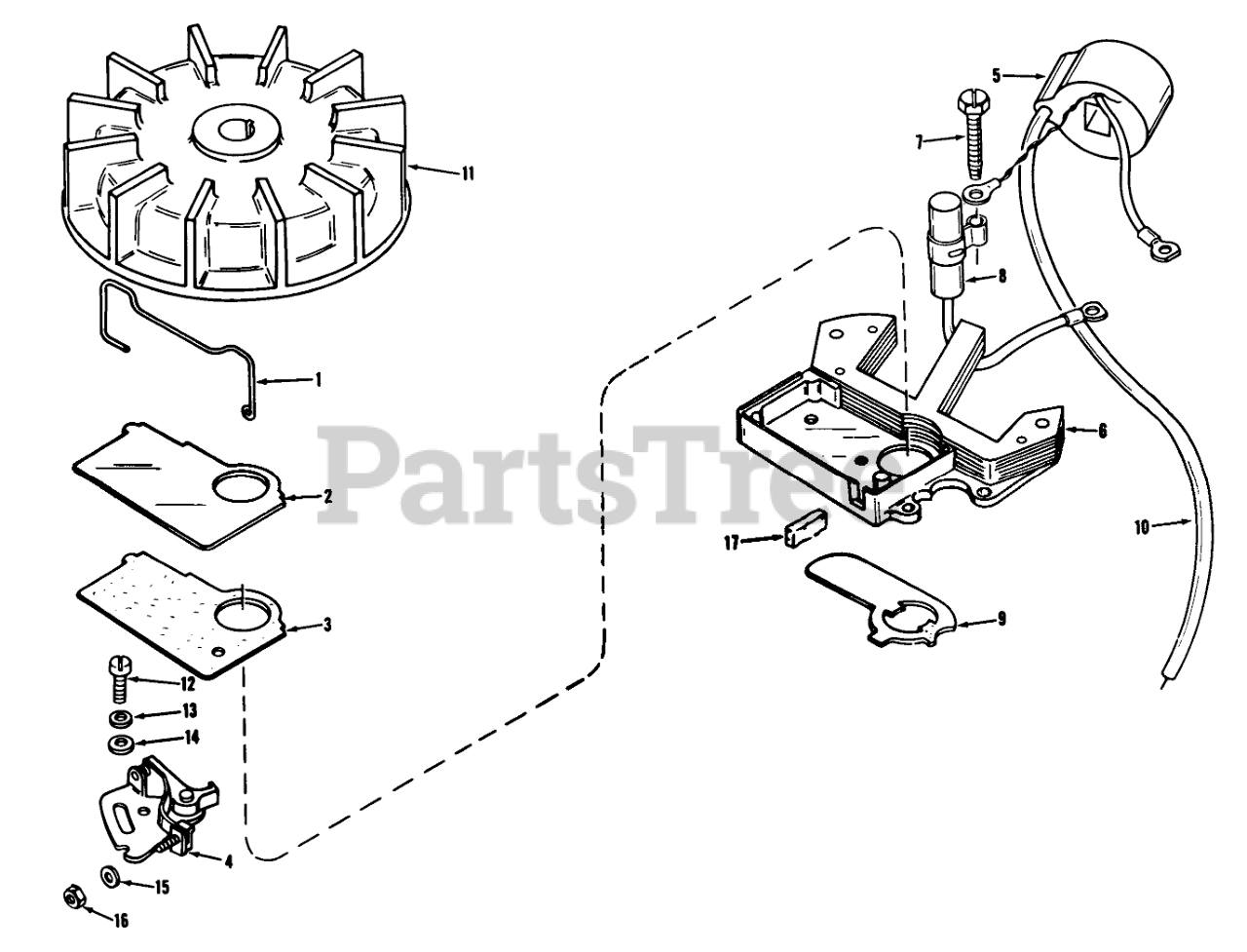

MAGNETO NO. 610659 Parts Diagram

  • Title

1

Tecumseh 610591

Dust Cover Spring

$

$

Currently unavailable

2

Tecumseh 610589

Dust Cover

$

$

Currently unavailable

3

Tecumseh 610590

Dust Cover Gasket

$

$

Currently unavailable

4

Tecumseh 610587

Hose-Primer 209543

$31.99

$

Usually ships in 3-12 days

0

5

Tecumseh 610657

Coil Assy.

$

$

Currently unavailable

6

Tecumseh 610585

Gasket 209542

$

$

Currently unavailable

7

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

8

Tecumseh 610588

Condenser Assy.

$16.99

$

Usually ships in 3-12 days

0

9

Tecumseh 610594

Sealing Washer

$

$

Currently unavailable

10

Tecumseh 610658

STRAP S
(Superseded to 30554)

$

$

Not available

11

Tecumseh 610660

RETAINER WASHER(SET OF 10)

$

$

Currently unavailable

12

Tecumseh 610249

Fuel Hose
(Superseded to 29181)

$

$

Not available

13

Tecumseh 610251

Fuel Tank

$

$

Currently unavailable

14

Tecumseh 610274

Flatwasher

$

$

Currently unavailable

15

Tecumseh 610385

Washer

$

$

Not available

16

Tecumseh 610408

DECAL

$

$

Currently unavailable

17

Tecumseh 610592

Cam Felt

$

$

Currently unavailable

Tecumseh 610656

"L" Bracket 210670

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable
