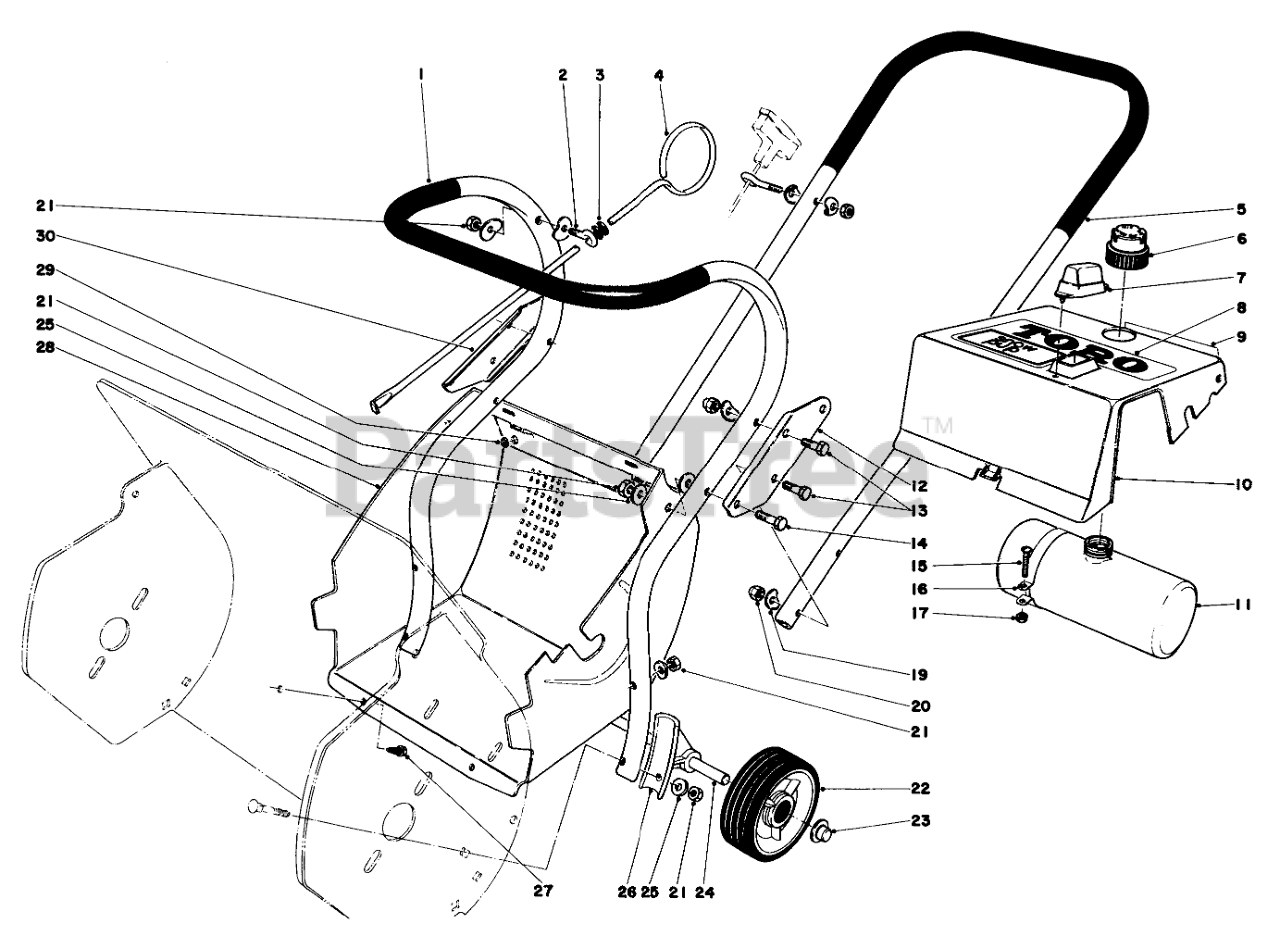

31412 - Toro Snow Pup Snow Thrower (SN: 002000001 - 002999999) (1972) UPPER MAIN FRAME Parts Diagram

Snow Pup Snow Thrower

UPPER MAIN FRAME Parts Diagram

  • Title
1

Toro 11-6030

Lower Handle
(Superseded to 33-4480)

$

$

Not available

2

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

3

Toro 237-73

GROMMET

$

$

Not available

4

Toro 5-3371

Vane Adj. Rod

$

$

Not available

5

Toro 11-6220

Upper Handle

$

$

Not available

6

Toro 11-5400

Cap, Gas
(Superseded to 42-0680)

$

$

Not available

7

$

$

Not available

8

Toro 11-8240

Decal

$

$

Currently unavailable

9

Toro 5-3435

Decal

$

$

Currently unavailable

10

Toro 11-8260

Shroud, Upper (Incl. Ref. Nos. 7, 8 & 9)

$

$

Currently unavailable

11

Toro 8-9830

Gas Tank Assembly (Incl . Ref . No. 6 & No .18)
(Superseded to 42-3970)

$

$

Not available

12

Toro 3-7503

SPLICE PLATE

$

$

Not available

13

Toro 321-26

Capscrew
(Superseded to 321-7)

$5.49

$

In Stock, only 1 left!

0

14

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

15

Toro 3251-12

10-24 X 1 RND HD MS

$0.99

$

Usually ships in 3-6 days

0

16

Toro 2412-24

1/2 GAS TANK CLAMP

$

$

Not available

17

Toro 32107-6

NUT-SQ

$

$

Currently unavailable

19

Toro 3-7507

Washer

$

$

Currently unavailable

20

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

21

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

22

Toro 11-5440

Wheel
(Superseded to 115440-01)

$

$

Not available

23

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

24

$

$

Not available

25

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 11-5420

Wheel Bracket

$

$

Not available

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 5-2459

Lower Shroud (Incl. Ref. No. 29)

$

$

Not available

29

Toro 3290-351

SNO PUP PLATED EYELET

$

$

Not available

30

Toro 3-7504

Plate-Splice

$

$

Not available

14

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0
