31411 - Toro Snow Pup Snow Thrower (SN: 009000001 - 009999999) (1969) LOWER MAIN FRAME Parts Diagram

Snow Pup Snow Thrower

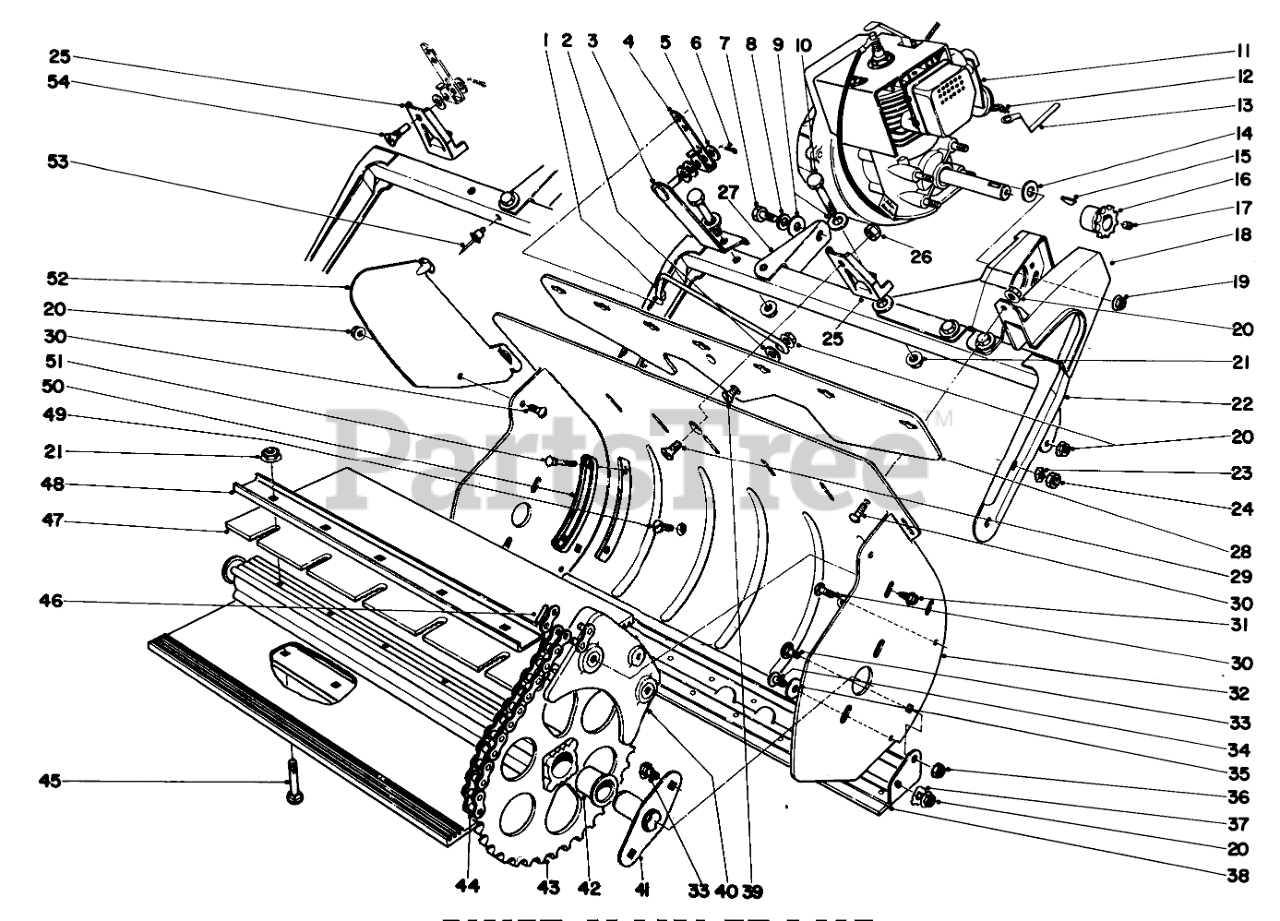

LOWER MAIN FRAME Parts Diagram

  • Title

1

Toro 5-3373

Linkage Vane Adj.

$

$

Currently unavailable

2

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 5-3372

Bracket-Vane Adj.
(Superseded to 28-7870)

$

$

Not available

6

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

10

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 221-290

Engine

$

$

Currently unavailable

12

Toro 3290-268

Cotter Pin

$

$

Not available

13

Toro 5-4337

Choke Strap

$

$

Not available

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3257-31

Key

$

$

Currently unavailable

16

Toro 3-9464

SPROCKET

$

$

Not available

17

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

18

Toro 3-7496

Chain Guard
(Superseded to 29-5780)

$

$

Not available

19

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

20

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

21

Toro 3-7544

Nut
(Superseded to 32128-10)

$0.99

$

In Stock, Qty 20+

0

22

Toro 5-3396

Frame Assy.

$

$

Not available

23

Toro 3290-257

Washer

$

$

Not available

24

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

25

Toro 3-7477

Stiffener

$

$

Currently unavailable

26

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

27

Toro 3-7487

Bracket

$

$

Not available

28

Toro 3-9483

Mount-Vane

$

$

Not available

29

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

30

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

31

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 7

0

32

Toro 5-3386

Housing

$

$

Not available

33

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

34

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

35

Toro 3-1032

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

36

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

37

Toro 3290-261

Washer

$

$

Currently unavailable

38

Toro 54304

Skid Assy.

$

$

Currently unavailable

39

Toro 32108-91

10-24X1-1/8 FLT HD MS

$

$

Currently unavailable

40

Toro 5-0997

Stripper

$

$

Not available

41

Toro 3-9273

Rotor Shaft Assy.

$

$

Not available

42

Toro 3-9271

Bushing

$

$

Not available

43

Toro 3-9473

Sprocket & Tube (Incl. Ref. #42)

$

$

Not available

44

Toro 3-7495

CHAIN

$188.99

$

Usually ships in 3-6 days

0

45

Toro 3-7575

Bolt

$

$

Currently unavailable

46

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

47

Toro 3-9466

Blade-Rotor

$

$

Not available

48

Toro 3-9475

Strap-Reinforcing

$

$

Currently unavailable

49

Toro 32108-92

Screw

$

$

Currently unavailable

50

Toro 3-7498

Handle Plate

$

$

Not available

51

Toro 32294

Bolt-Carriage

$

$

Currently unavailable

52

Toro 3-9283

Vane
(Superseded to 52-7060)

$10.99

$

In Stock, Qty 20+

0

53

Toro 3290-278

RIVET
(Superseded to 3290-412)

$3.49

$

In Stock, only 4 left!

0

54

Toro 5-3426

Screw

$

$

Currently unavailable

Toro 4-1559

Loose Parts Kit

Note: Not llustrated.

$

$

Currently unavailable

1

Toro 5-3381

Linkage Vane Adj.

$

$

Currently unavailable

3

Toro 5-3392

Vane Adj. Bracket

$

$

Currently unavailable

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 221-289

Engine

$

$

Currently unavailable

22

Toro 5-3394

Frame Assembly

$

$

Currently unavailable

28

Toro 3-9276

Mount Vane

$

$

Not available

32

Toro 3-7486

Housing

$

$

Currently unavailable

38

Toro 54301

Skid Assy.

$

$

Currently unavailable

43

Toro 3-9272

Sprocket & Tube W.A. Incl. #37

$

$

Not available

47

Toro 3-9325

Blade-Rotor

$

$

Not available

48

Toro 3-7521

Reinforcing Strap

$

$

Currently unavailable
