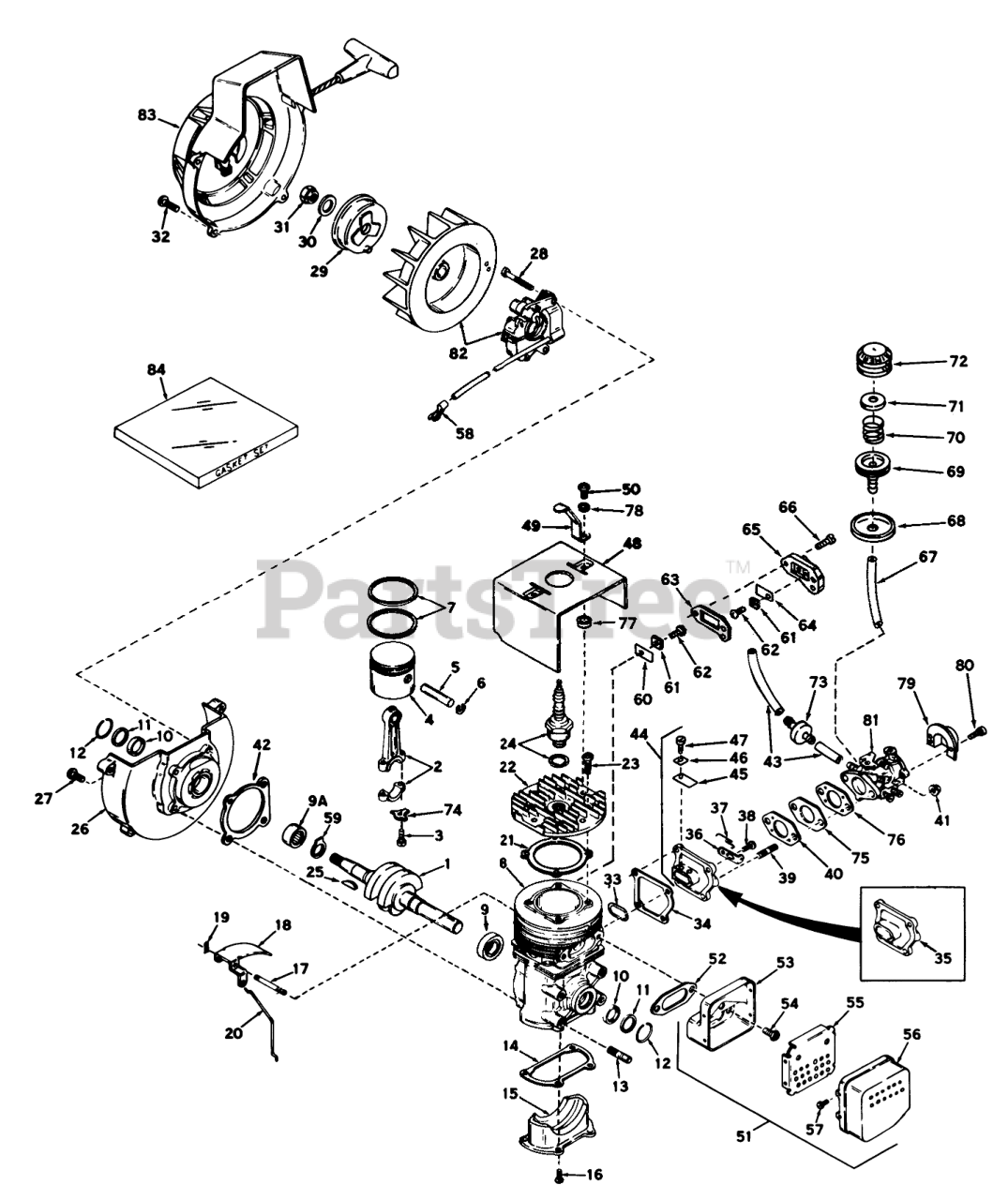

31411 - Toro Snow Pup Snow Thrower (SN: 008000001 - 008999999) (1968) ENGINE MODEL NO. AH-52 PARTS LIST Parts Diagram

Snow Pup Snow Thrower

ENGINE MODEL NO. AH-52 PARTS LIST Parts Diagram

  • Title

1

Tecumseh 290376

Crankshaft

$

$

Currently unavailable

2

Tecumseh 310212

Rod Assy., Connecting(Incl. Nos. 3 & 74)
(Superseded to 310212A)

$51.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 310206

Piston
(Superseded to 310227B)

$

$

Currently unavailable

5

Tecumseh 310140

Pin, Piston

$

$

Currently unavailable

6

Tecumseh 310128

Ring, Piston Pin Retaining

$

$

Currently unavailable

7

Tecumseh 310207

Ring Set, Piston
(Superseded to 310221)

$

$

Currently unavailable

8

Tecumseh 250195

Block Assy., Cylinder (Incl. Nos. 9, 10 thru 13 & 17)

$

$

Currently unavailable

9

Tecumseh 530133

Bearing Ball

$

$

Currently unavailable

9A

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510105

Seal, Crankshaft

Note: Indicates items included in Gasket Set No. 510264.

$2.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510106

Retainer, Crankshaft Seal
(Superseded to 510106A)

$3.99

$

Usually ships in 3-12 days

0

12

Tecumseh 510109

Spring, Crankshaft Seal
(Superseded to 510109A)

$3.99

$

Usually ships in 3-12 days

0

13

Tecumseh 650581

Stud

$

$

Currently unavailable

14

Tecumseh 510232

Cover-Rubber
(Superseded to 510270A)

Note: Indicates items included in Gasket Set No. 510264.

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 570370

Plate, Cover
(Superseded to 570370A)

$

$

Not available

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Tecumseh 490277

Vane Assy, Air

$

$

Currently unavailable

19

Tecumseh 490278

Clip,Air Vane

$

$

Currently unavailable

20

Tecumseh 490279

Link Governor

$

$

Currently unavailable

21

Tecumseh 510262

Gasket, Cylinder Head
(Superseded to 510274A)

Note: Indicates items included in Gasket Set No. 510264.

$1.99

$

In Stock, Qty 6

0

22

Tecumseh 250182

Screw

$

$

Currently unavailable

22

Tecumseh 250175

Screw
(Superseded to 250182)

$

$

Currently unavailable

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 610120

Plug, Spark (AC-47M)
(Superseded to 33636)

$5.49

$

In Stock, Qty 17

0

25

Tecumseh 650455

Key, Woodruff

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 350339

Base Assy., Shroud (Incl. Nos. 9A thru 12)

$

$

Currently unavailable

27

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650582

Screw

$

$

Currently unavailable

29

Tecumseh 590382

Cup, Starter

$12.99

$

Usually ships in 3-12 days

0

30

Tecumseh 29544

Washer, Flat

$

$

Currently unavailable

31

Tecumseh 650577

Nut, Flywheel
(Superseded to 650390)

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

33

Tecumseh 510233

Gasket, Port
(Superseded to 510277A)

Note: Indicates items included in Gasket Set No. 510264.

$3.99

$

Usually ships in 3-12 days

0

34

Tecumseh 510234

Gasket, Adapter Cover
(Superseded to 510277A)

Note: Indicates items included in Gasket Set No. 510264.

$3.99

$

Usually ships in 3-12 days

0

35

Tecumseh 570371

Cover, Adapter Type 1401C

$

$

Currently unavailable

36

Tecumseh 570372

Lever, Adjusting

$

$

Currently unavailable

37

Tecumseh 490267

Spring, Adjusting Lever

$3.99

$

Usually ships in 3-12 days

0

38

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 650527

Stud

$

$

Not available

40

Tecumseh 510229

Gasket, Carburetor 1/8" thick)
(Superseded to 510229A)

Note: Indicates items included in Gasket Set No. 510264.

$3.99

$

Usually ships in 3-12 days

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, Qty 7

0

42

Tecumseh 510239

Gasket, Shroud Base
(Superseded to 510239A)

Note: Indicates items included in Gasket Set No. 510264.

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

44

Tecumseh 470126

Plate Assy., Reed (Incl. Nos. 45, 46 & 47) Type 1450B
(Superseded to 570471)

$

$

Not available

45

Tecumseh 470127

Reed Type 1450B

$

$

Currently unavailable

46

Tecumseh 470128

Stop, Reed Type 1450B

$

$

Currently unavailable

47

Tecumseh 650609

Screw, Pan Flex Hd. type 1450B
(Superseded to 650654)

$1.99

$

In Stock, only 2 left!

0

48

Tecumseh 350364

Shroud, Cylinder

$

$

Currently unavailable

49

Tecumseh 610701

Lever, Stop
(Superseded to 30747)

$6.99

$

In Stock, only 3 left!

0

50

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

51

Tecumseh 390263A

Muffler Assy.
(Superseded to 390330)

$

$

Not available

52

Tecumseh 510230

Gasket-Muffler
(Superseded to 510207A)

Note: Indicates items included in Gasket Set No. 510264.

$5.49

$

Usually ships in 3-12 days

0

53

Tecumseh 390258

Base, Muffler
(Superseded to 390292A)

$

$

Currently unavailable

54

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 390259

Baffle Muffler
(Superseded to 390272)

$

$

Currently unavailable

56

Tecumseh 390267

Cover Muffler
(Superseded to 390330)

$

$

Not available

57

Tecumseh 650578

Screw

$1.99

$

In Stock, only 2 left!

0

58

Tecumseh 610700

Screw
(Superseded to 610813)

$

$

Not available

59

Tecumseh 530132

Washer, Thrust

$

$

Currently unavailable

60

Tecumseh 470136

Reed, Compression Release

$3.99

$

In Stock, only 2 left!

0

61

Tecumseh 470137

Plate, Reed Hold Down

$2.49

$

In Stock, only 1 left!

0

62

Tecumseh 650654

Screw

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 510263

Gasket, Compression Release
(Superseded to 510263A)

Note: Indicates items included in Gasket Set No. 510264.

$1.99

$

In Stock, only 4 left!

0

64

Tecumseh 470135

Reed, Compression Release

$5.49

$

In Stock, only 1 left!

0

65

Tecumseh 570437

Cover, Compression Release
(Superseded to 570437A)

$

$

Currently unavailable

66

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

67

Tecumseh 32180

Beam Assy.
(Superseded to 32180C)

$6.99

$

In Stock, Qty 11

0

68

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

69

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

70

Tecumseh 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Tecumseh 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Tecumseh 570442

Bulb, Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

73

Tecumseh 450228

Filter, Fuel

$

$

Currently unavailable

74

Tecumseh 650634

Washer, Tab

$

$

Currently unavailable

75

Tecumseh 570438

Spacer
(Superseded to 570438A)

$3.99

$

In Stock, only 1 left!

0

76

Tecumseh 510241

Gasket, Carburetor (1/16"thick)
(Superseded to 510241A)

Note: Indicates items included in Gasket Set No. 510264.

$4.49

$

In Stock, only 3 left!

0

77

Tecumseh 570441

Spacer

$

$

Currently unavailable

78

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

79

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

81

Tecumseh 631394

Carburetor
(Superseded to 631993)

$125.99

$

Usually ships in 3-12 days

0

82

Tecumseh 610659

BRACKET S

$

$

Currently unavailable

83

Tecumseh 590398B

Shroud & Starter Assy.

$

$

Currently unavailable

84

Tecumseh 510264

Gasket Set
(Superseded to 510264E)

$26.99

$

In Stock, only 1 left!

0
