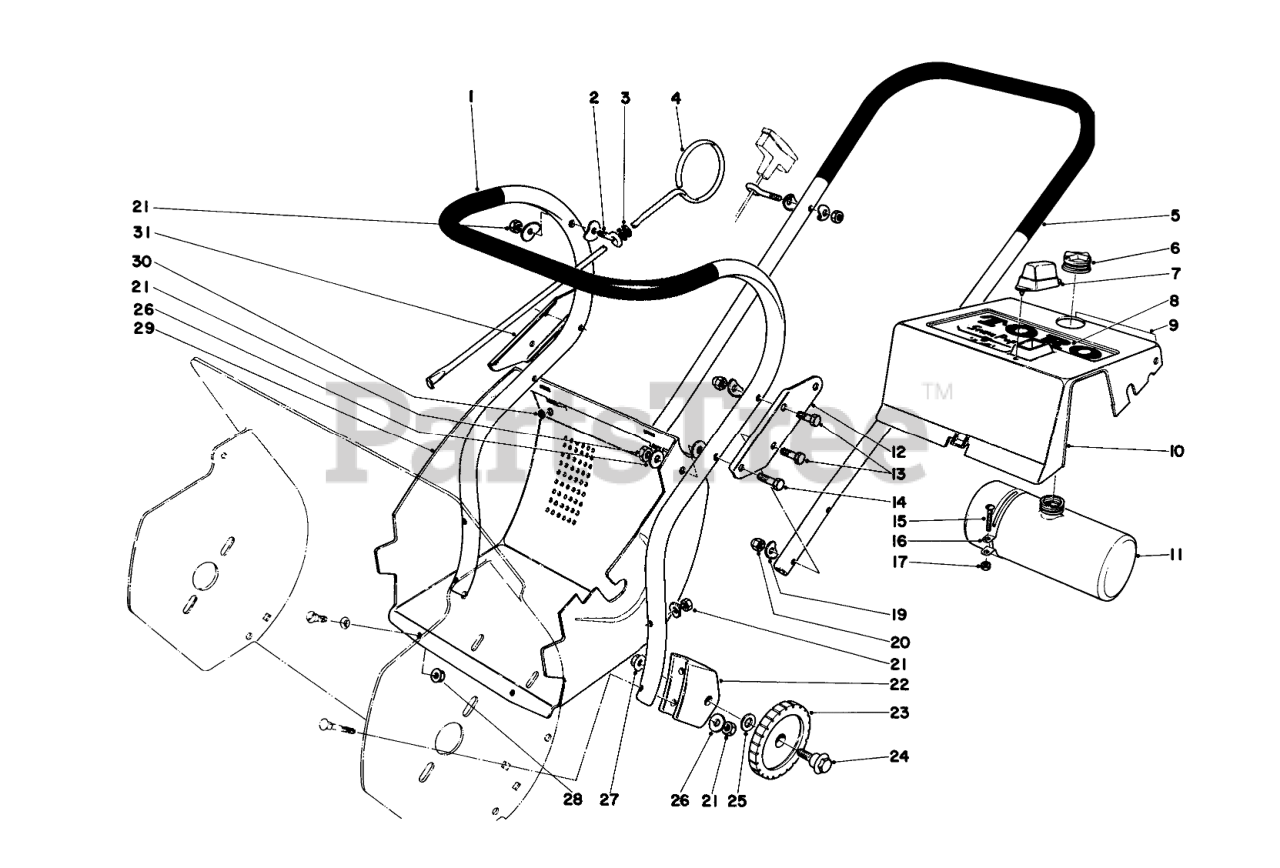

31411 - Toro Snow Pup Snow Thrower (SN: 001000001 - 001999999) (1971) UPPER MAIN FRAME Parts Diagram

Snow Pup Snow Thrower

UPPER MAIN FRAME Parts Diagram

  • Title

1

Toro 4-1479

Handle Lower
(Superseded to 33-4480)

$

$

Not available

2

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

3

Toro 237-73

GROMMET

$

$

Not available

4

Toro 5-3371

Vane Adj. Rod

$

$

Not available

5

Toro 4-1509

Handle Upper

$

$

Currently unavailable

6

Toro 222-17

Gas Cap
(Superseded to 42-0680)

$

$

Not available

7

Toro 5-0452

Boot

$

$

Not available

8

Toro 5-3428

Decal

$

$

Currently unavailable

9

Toro 5-3435

Decal

$

$

Currently unavailable

10

Toro 34949

Upper Shroud (Incl. Ref. #7)

$

$

Currently unavailable

11

Toro 8-9830

Gas Tank Assembly (Incl. Ref. #6 & 18)
(Superseded to 42-3970)

$

$

Not available

12

Toro 3-7503

SPLICE PLATE

$

$

Not available

13

Toro 321-26

Capscrew
(Superseded to 321-7)

$5.49

$

In Stock, only 1 left!

0

14

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

15

Toro 3251-12

10-24 X 1 RND HD MS

$0.99

$

Usually ships in 3-6 days

0

16

Toro 2412-24

1/2 GAS TANK CLAMP

$

$

Not available

17

Toro 32107-6

NUT-SQ

$

$

Currently unavailable

19

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

20

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

21

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

22

Toro 3-9326

Bracket Wheel

$

$

Currently unavailable

23

Toro 3-9322

Wheel

$

$

Not available

24

Toro 3-9323

Bolt-Shoulder

$

$

Currently unavailable

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

28

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

29

Toro 5-2459

Lower Shroud

$

$

Not available

30

Toro 3290-351

SNO PUP PLATED EYELET

$

$

Not available

31

Toro 3-7504

Plate-Splice

$

$

Not available

8

Toro 5-3427

Decal

$

$

Currently unavailable
