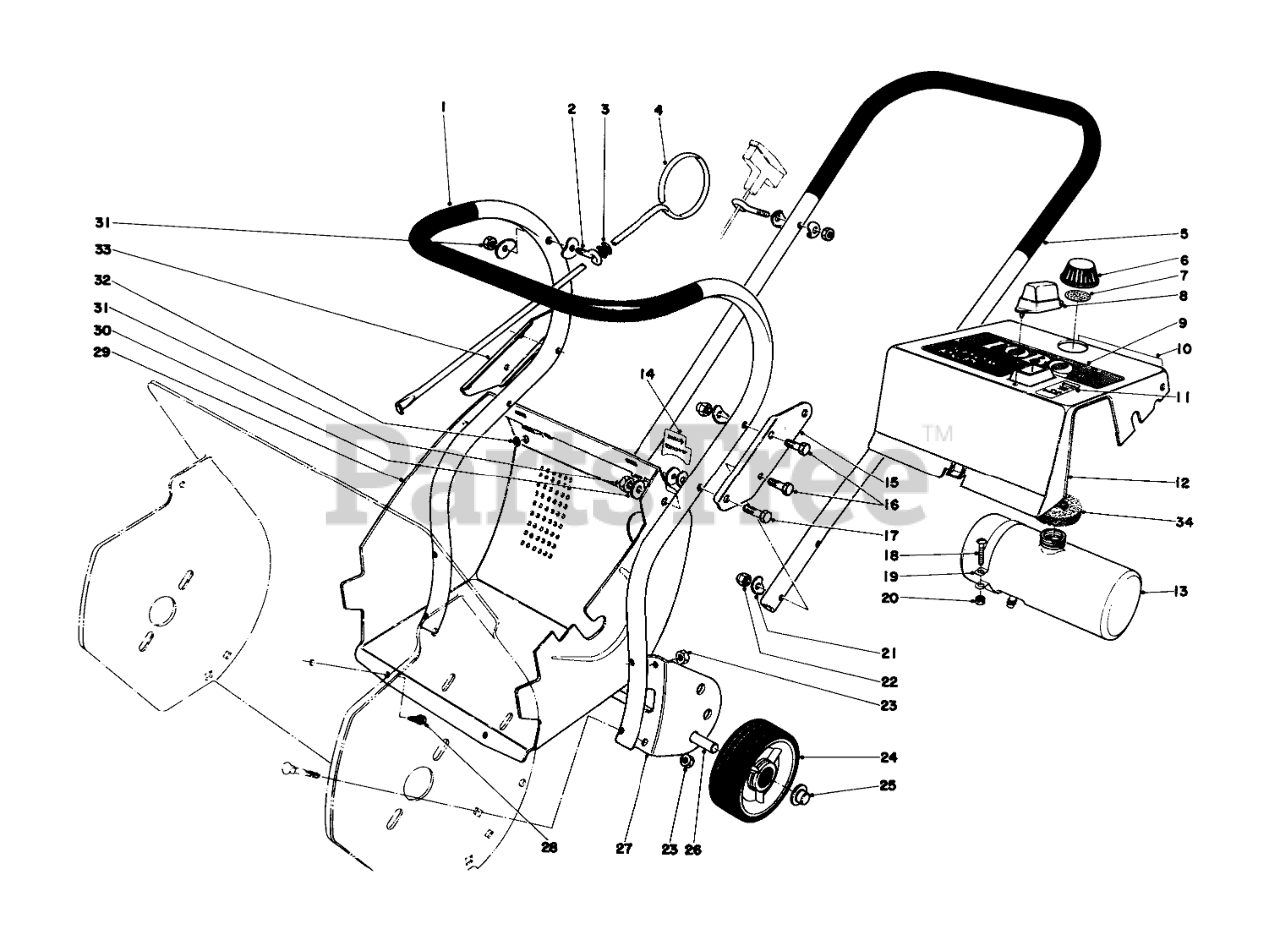

31405 - Toro Snow Pup Snow Thrower (SN: 007000001 - 007999999) (1977) UPPER MAIN FRAME Parts Diagram

Snow Pup Snow Thrower

UPPER MAIN FRAME Parts Diagram

  • Title
1

Toro 11-6030

Lower Handle
(Superseded to 33-4480)

$

$

Not available

2

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

3

Toro 237-73

GROMMET

$

$

Not available

4

Toro 5-3371

Vane Adj. Rod

$

$

Not available

5

Toro 11-6220

Upper Handle

$

$

Not available

6

Toro 23-4380

Gas Cap (Incl. Ref. #7)
(Superseded to 42-0680)

$

$

Not available

7

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

8

$

$

Not available

9

Toro 17-1830

Decal

$

$

Currently unavailable

10

Toro 25-6520

Decal-Fuel Mix

$

$

Not available

11

Toro 23-7280

Decal

$

$

Currently unavailable

12

Toro 25-6540

Shroud Upper (Incl. Ref. #8-11)

$

$

Not available

13

Toro 23-7880

Gas Tank Assembly (Incl. Ref. #6 & 7)
(Superseded to 42-3970)

$

$

Not available

14

Toro 23-7660

Decal

$

$

Not available

15

Toro 3-7503

SPLICE PLATE

$

$

Not available

16

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

17

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

18

Toro 3251-12

10-24 X 1 RND HD MS

$0.99

$

Usually ships in 3-6 days

0

19

Toro 2412-24

1/2 GAS TANK CLAMP

$

$

Not available

20

Toro 32107-6

NUT-SQ

$

$

Currently unavailable

21

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

22

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

23

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

24

Toro 11-5440

Wheel
(Superseded to 115440-01)

$

$

Not available

25

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

26

$

$

Not available

27

Toro 25-6930

Wheel Bracket

$

$

Not available

28

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Toro 5-2459

Lower Shroud (Incl. Ref. #32)

$

$

Not available

30

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

32

Toro 3290-351

SNO PUP PLATED EYELET

$

$

Not available

33

Toro 3-7504

Plate-Splice

$

$

Not available

34

Toro 25-1610

FOAM PAD

$

$

Not available
