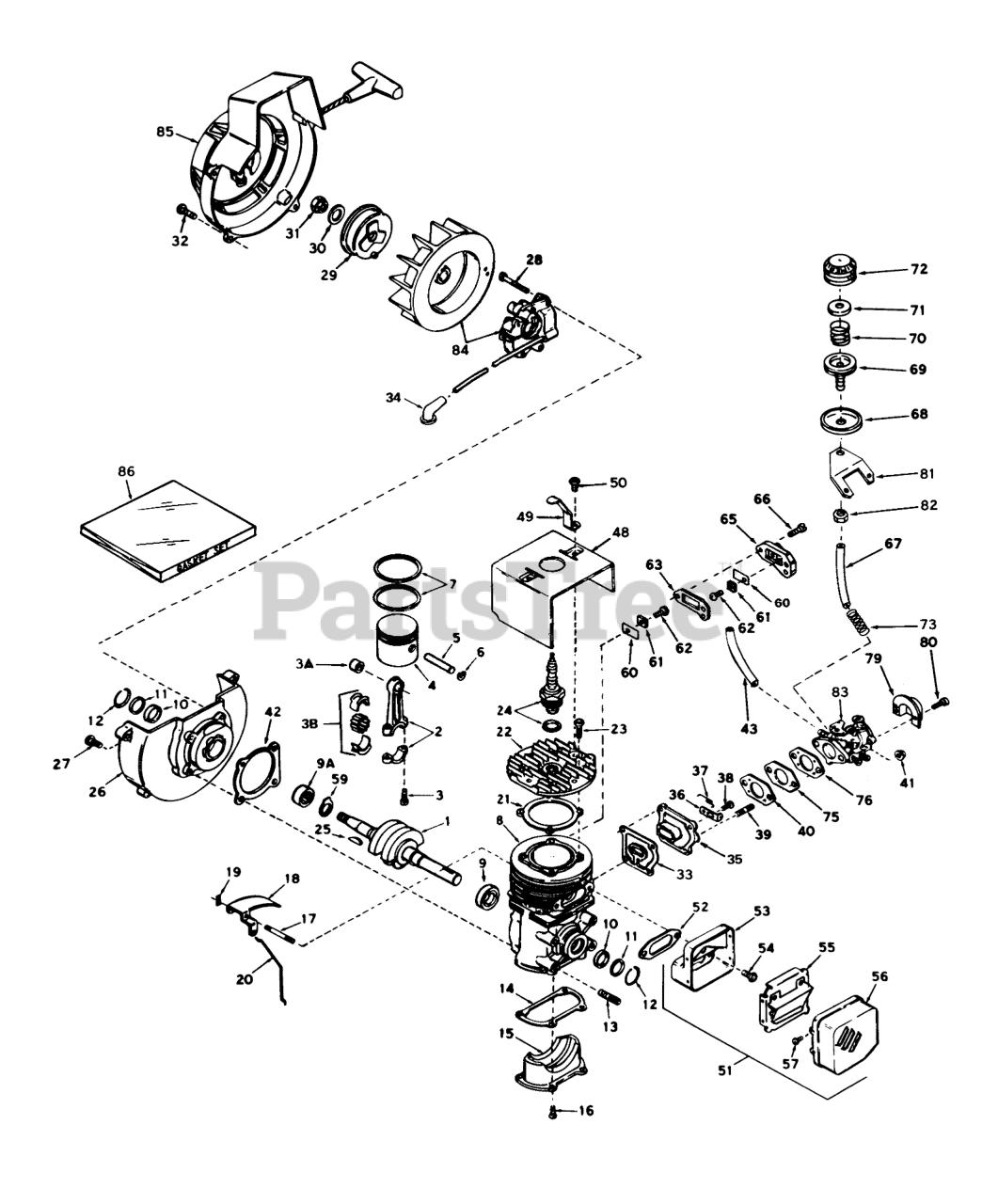

31405 - Toro Snow Pup Snow Thrower (SN: 006000001 - 006999999) (1976) ENGINE TECUMSEH MODEL NO. AH520 TYPE 1401J Parts Diagram

Snow Pup Snow Thrower

ENGINE TECUMSEH MODEL NO. AH520 TYPE 1401J Parts Diagram

  • Title

1

Tecumseh 290468

Crankshaft

$

$

Currently unavailable

2

Tecumseh 310244

Rod Assembly, Connecting (Incl. #3, 3A & 3B)

$

$

Currently unavailable

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530149

Bearing & Liner Set Needle

$27.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310230

Piston
(Superseded to 310283A)

$33.99

$

In Stock, only 1 left!

0

5

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 250195

Block Assembly, Cylinder (Incl. #9, 10-13 & 17)

$

$

Currently unavailable

9

Tecumseh 530133

Bearing Ball

$

$

Currently unavailable

9A

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510106

Retainer, Crankshaft Seal
(Superseded to 510106A)

$3.99

$

Usually ships in 3-12 days

0

12

Tecumseh 510109

Spring, Crankshaft Seal
(Superseded to 510109A)

$3.99

$

Usually ships in 3-12 days

0

13

Tecumseh 650581

Stud

$

$

Currently unavailable

14

Tecumseh 510270

Gasket, Cover
(Superseded to 510270A)

Note: Indicates items included in Gasket Set part no. 510264C.

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 570370

Plate, Cover
(Superseded to 570370A)

$

$

Not available

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Tecumseh 490277

Vane Assy, Air

$

$

Currently unavailable

19

Tecumseh 490278

Clip,Air Vane

$

$

Currently unavailable

20

Tecumseh 490279

Link Governor

$

$

Currently unavailable

21

Tecumseh 510262

Gasket, Cylinder Head
(Superseded to 510274A)

Note: Indicates items included in Gasket Set part no. 510264C.

$1.99

$

In Stock, Qty 6

0

22

Tecumseh 250182

Screw

$

$

Currently unavailable

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 17

0

25

Tecumseh 650455

Key, Woodruff

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 350339

Base Assembly, Shroud (Incl. #9A-12)

$

$

Currently unavailable

27

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650582

Screw

$

$

Currently unavailable

29

Tecumseh 590382

Cup, Starter

$12.99

$

Usually ships in 3-12 days

0

30

Tecumseh 29544

Washer, Flat

$

$

Currently unavailable

31

Tecumseh 650577

Nut, Flywheel
(Superseded to 650390)

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

33

Tecumseh 510277

Gasket, Port
(Superseded to 510277A)

Note: Indicates items included in Gasket Set part no. 510264C.

$3.99

$

Usually ships in 3-12 days

0

34

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, Qty 5

0

35

Tecumseh 570471

Adapter, Cover

$

$

Not available

36

Tecumseh 570372

Lever, Adjusting

$

$

Currently unavailable

37

Tecumseh 490267

Spring, Adjusting Lever

$3.99

$

Usually ships in 3-12 days

0

38

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 650527

Stud

$

$

Not available

40

Tecumseh 510229

Gasket, Carburetor 1/8" thick)
(Superseded to 510229A)

Note: Indicates items included in Gasket Set part no. 510264C.

$3.99

$

Usually ships in 3-12 days

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, Qty 7

0

42

Tecumseh 510239

Gasket, Shroud Base
(Superseded to 510239A)

Note: Indicates items included in Gasket Set part no. 510264C.

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

48

Tecumseh 350364

Shroud, Cylinder

$

$

Currently unavailable

49

Tecumseh 610725

Lever, Stop
(Superseded to 30747)

$6.99

$

In Stock, only 3 left!

0

50

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

51

Tecumseh 390294

Muffler Assembly (Incl. #53-57)

$

$

Currently unavailable

52

Tecumseh 510230

Gasket-Muffler
(Superseded to 510207A)

Note: Indicates items included in Gasket Set part no. 510264C.

$5.49

$

Usually ships in 3-12 days

0

53

Tecumseh 390292

Base-Muffler
(Superseded to 390292A)

$

$

Currently unavailable

54

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 390295

Baffle, Muffler

$

$

Currently unavailable

56

Tecumseh 390296

Cover, Muffler
(Superseded to 390260)

$

$

Currently unavailable

57

Tecumseh 650578

Screw

$1.99

$

In Stock, only 2 left!

0

59

Tecumseh 530132

Washer, Thrust

$

$

Currently unavailable

60

Tecumseh 470136

Reed, Compression Release

$3.99

$

In Stock, only 2 left!

0

61

Tecumseh 470137

Plate, Reed Hold Down

$2.49

$

In Stock, only 1 left!

0

62

Tecumseh 650654

Screw

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 510263

Gasket, Compression Release
(Superseded to 510263A)

Note: Indicates items included in Gasket Set part no. 510264C.

$1.99

$

In Stock, only 4 left!

0

65

Tecumseh 570437

Cover, Compression Release
(Superseded to 570437A)

$

$

Currently unavailable

66

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

67

Tecumseh 32180A

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, Qty 11

0

68

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

69

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

70

Tecumseh 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Tecumseh 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Tecumseh 570442

Bulb, Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

73

Tecumseh 570456

Spring, Primer line support

$

$

Currently unavailable

75

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

76

Tecumseh 510241

Gasket, Carburetor (1/16"thick)
(Superseded to 510241A)

Note: Indicates items included in Gasket Set part no. 510264C.

$4.49

$

In Stock, only 3 left!

0

79

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

81

Tecumseh 570480

Mounting Bracket, Primer

$

$

Currently unavailable

82

Tecumseh 650456

Hex nut

$1.99

$

In Stock, only 1 left!

0

83

Tecumseh 631654B

Carburetor (Incl. #76)
(Superseded to 631993)

$125.99

$

Usually ships in 3-12 days

0

84

Tecumseh 610659

BRACKET S

$

$

Currently unavailable

85

Tecumseh 590398B

Shroud & Starter Assy.

$

$

Currently unavailable

86

Tecumseh 510264C

GasketSet
(Superseded to 510264E)

$26.99

$

In Stock, only 1 left!

0

Tecumseh 710324B

Replacement Engine
(Superseded to 900368)

Note: Not illustrated

$

$

Currently unavailable
