314 H (1600158) - AGCO Lawn Tractor, 14hp Steering Gear Box Group (1505I21) Parts Diagram

Lawn Tractor, 14hp

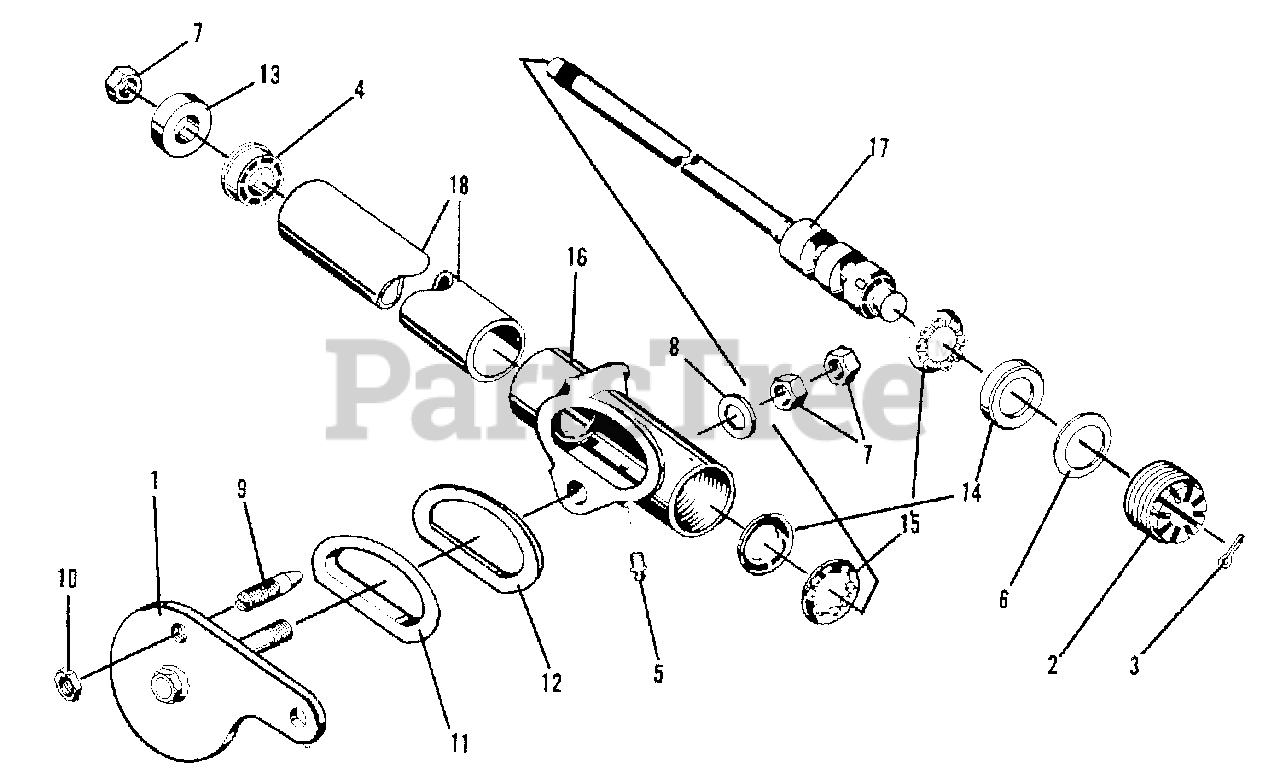

Steering Gear Box Group (1505I21) Parts Diagram

  • Title
-

Simplicity 1601821

GEAR ASSEMBLY, Steering (Includes Items 1-18)

$

$

Not available

1

Simplicity 1604116

LEVER & BOLT ASSEMBLY

$

$

Not available

2

Simplicity 1604117

PLUG, Adjustment

$

$

Not available

3

Simplicity 918449

PIN, Cotter, 1/8 x 1/2, Platted

$

$

Not available

4

$

$

Not available

5

Simplicity 1604120

FITTING, Grease

$

$

Not available

6

Simplicity 1604121

WASHER, Bellville

$

$

Not available

7

Simplicity 2822014

NUT, Jam, 5/8-18, Hex.

$

$

Not available

$

$

Not available

$

$

Not available

10

Simplicity 1604125

NUT, Adjacent

$

$

Not available

11

Simplicity 1604126

RETAINER, Seal

$

$

Not available

$

$

Not available

13

Simplicity 1604128

SEAL, Dust

$

$

Not available

14

Simplicity 1604129

CUP, Ball (Includes Item 15)

$

$

Not available

15

Simplicity 1604170

BALL & RETAINER

$

$

Not available

16

HOUSING (Not Serviced)

$

$

Not available

17

CAM (Not Serviced)

$

$

Not available

18

TUBE, Jacket (Not Serviced)

$

$

Not available
