314 (190-314-100) - Cub Cadet 38" Mulcher Mulcher Parts Diagram

38" Mulcher

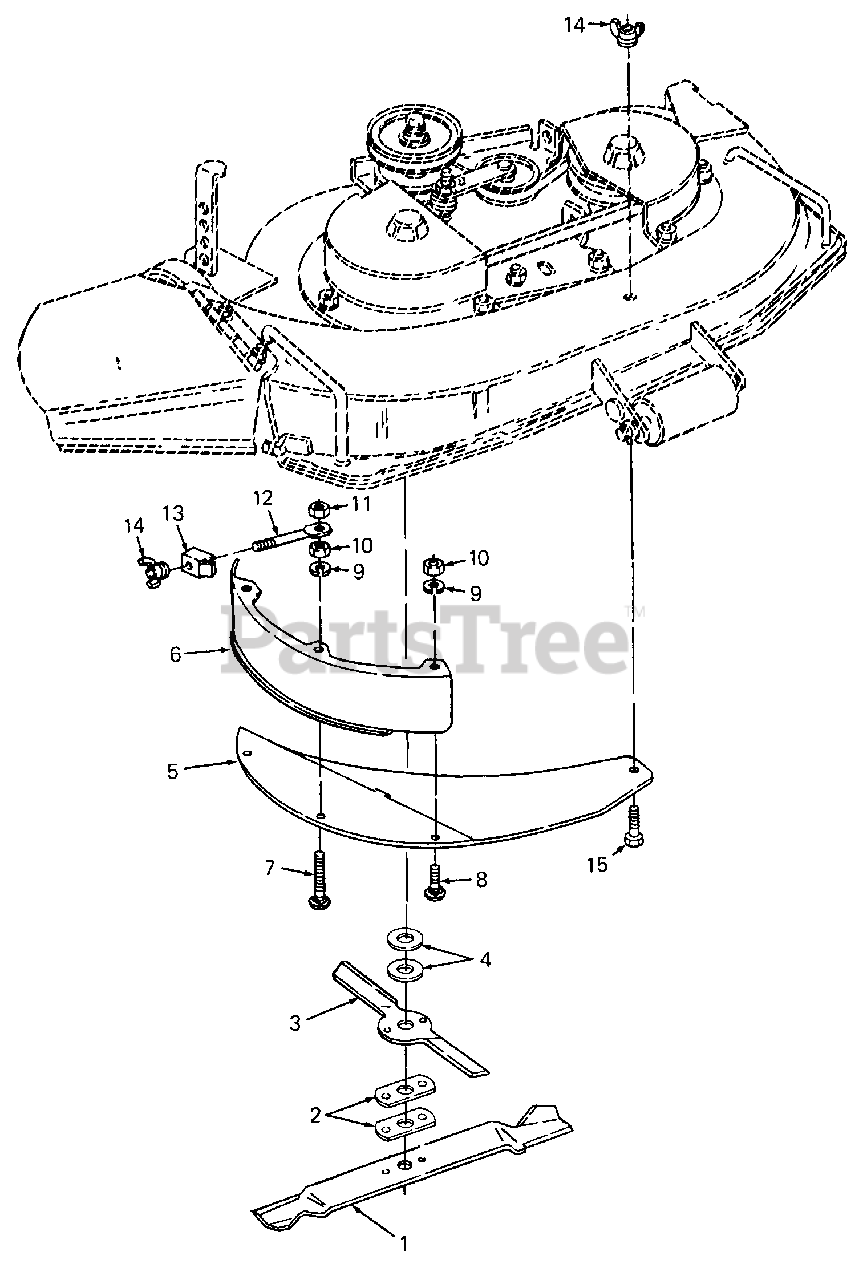

Mulcher Parts Diagram

  • Title

1

Cub Cadet 742-3009

Blade, Low Lift, 19.38 Lg
(Superseded to 759-3817)

$27.99

$

In Stock, Qty 15

0

2

Cub Cadet 703-2214

Adapter, Plate
(Superseded to 703-2214-0637)

Variations

Cub Cadet 703-2214-0637

PLATE-ADAPTER - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 742-3022

Blade, Mulcher, 12.5 Lg

Variations

Cub Cadet 742-3022-0637

MULCHING BLADE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 736-3014

Washer, Flat, .781 ID X 2.0 OD

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 783-0024

Baffle, Top Mulching
(Superseded to 783-0024-0637)

$

$

Not available

6

Cub Cadet 783-0025

Baffle, Side Mulching

$

$

Not available

7

Cub Cadet 710-0932

Bolt, Carriage, 1/4-20 X 1.0 Lg
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0134

Bolt, Carriage, 1/4-20 X .62 Lg

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

11

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

12

Cub Cadet 711-0957

Bolt, Retaining

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-0028

Bracket, Locking
(Superseded to 783-0028-0637)

Variations

Cub Cadet 783-0028-0637

Locking Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-0397

Nut, Nylon Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0
