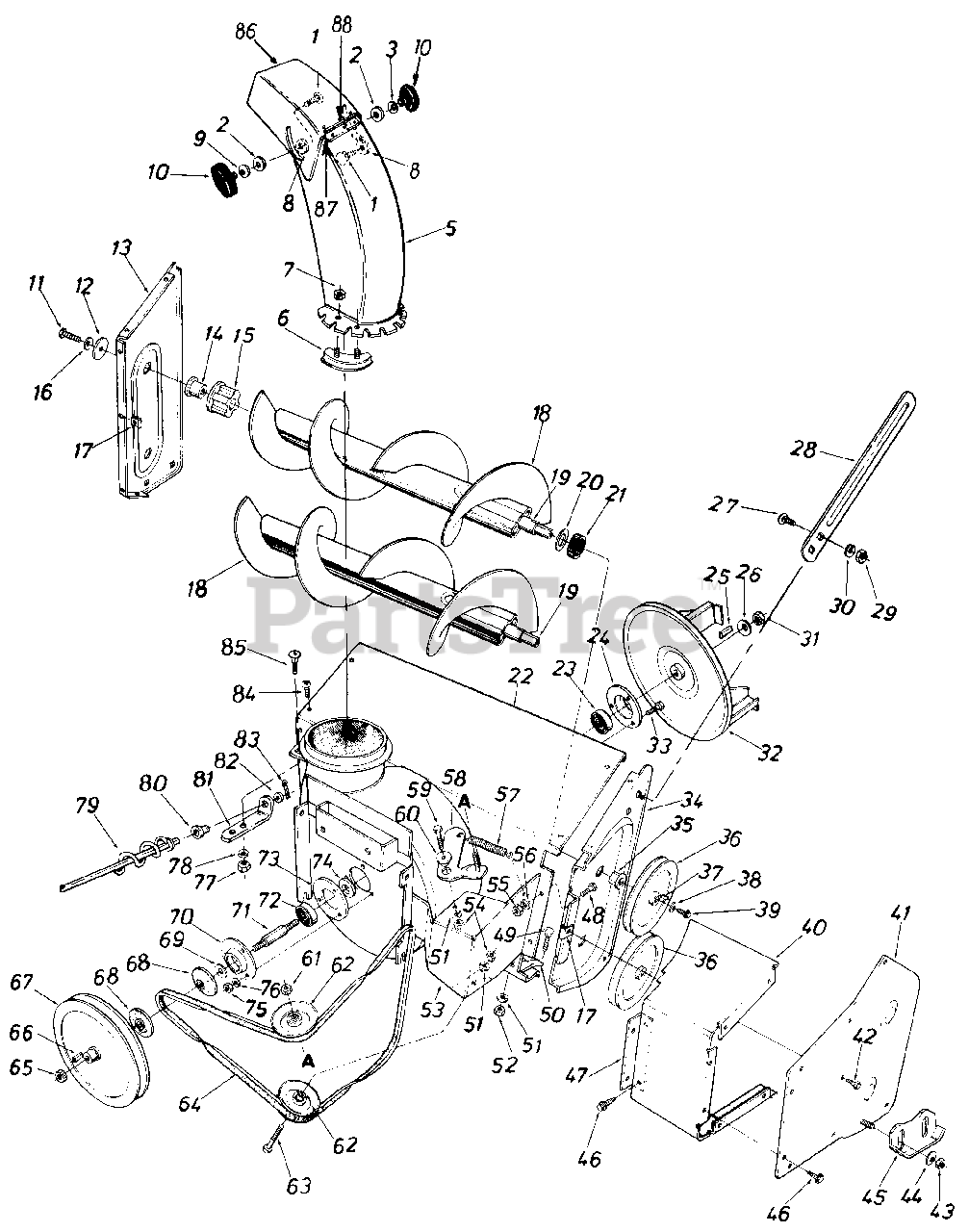

31380C - MTD Snow Thrower (1986) Snow Parts Diagram

Snow Thrower

Snow Parts Diagram

  • Title

1

MTD 710-0276

Carriage Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 11

0

2

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

3

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

5

MTD 731-0783

Blower Chute Ass'y.

$

$

Not available

6

MTD 05783

Chute Flange Keeper Ass'y.

$

$

Not available

7

MTD 712-0107

Hex Patch L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

MTD 736-0179

Fl-Wash 531 I.D. x 1.25" 0.D.

$4.99

$

In Stock, only 2 left!

0

9

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

10

MTD 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

11

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5)

$3.99

$

In Stock, Qty 5

0

12

MTD 736-0362

Fl-Wash. .32" I.D.

$4.49

$

In Stock, Qty 8

0

13

MTD 784-5256

Spiral Housing Plate L.H.

$

$

Currently unavailable

14

MTD 748-0310

Shaft Pin 1.0" O.D. x .94

$

$

Not available

15

MTD 741-0477

Tubing Support Brg.

$

$

Currently unavailable

16

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0377

Speed Clip 1/4-20

$

$

Currently unavailable

18

MTD 784-5277

Auger Ass'y. 22" x 6.0" Dia.

Note: (31340)

$

$

Not available

MTD 784-5278

Auger Ass'y. 24" x 6.0" Dia.

Note: (31350)

$

$

Currently unavailable

MTD 784-5279

Auger Ass'y. 28" x 6.0" Dia.

Note: (31380)

$

$

Not available

19

Part of Ref. No. 18

$

$

Not available

20

MTD 736-0401

Fl-Wash. .760" I.D. x 1.75" 0. D.

$

$

Not available

21

MTD 750-0678

Spacer 1.25" I.D. x 1.50" O.D x .58" Thk.

$

$

Currently unavailable

22

MTD 784-5259

22" Spiral Housing Ass'y.

Note: (31340)

$

$

Not available

MTD 784-5261

24" Spiral Housing Ass'y.

Note: (31350)

$

$

Not available

MTD 784-5263

28" Spiral Housing Ass'y.

Note: (31380)

$

$

Currently unavailable

23

MTD 741-0919

Ball-Brg. .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

24

MTD 08253

Bearing Housing 1.85" I.D.
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

25

MTD 714-0133

Sq. Key 3/16 x 1.50" Lg.

$4.99

$

In Stock, Qty 12

0

26

MTD 736-0317

Bell-Wash. .630" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

27

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

28

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

29

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

32

MTD 784-5274

11" Dia. Blower Fan Ass'y.

$

$

Not available

33

MTD 710-0736

Hex Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

34

MTD 784-5257

Spiral Housing Plate R.H.

$

$

Currently unavailable

35

MTD 741-0245

Hex Flange Brg. .751" I.D.
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

36

MTD 756-0477

3/8" V-Pulley 5/8" I.D. x 5.5" O.D.

$

$

Not available

37

MTD 714-0122

Sq. Key 3116" X .75" Lg.

$3.99

$

In Stock, Qty 20+

0

38

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

40

MTD 784-5253

Belt Cover Top

Note: (31340)

$

$

Not available

MTD 784-5254

Belt Cover Top

Note: (31350)

$

$

Currently unavailable

MTD 784-5255

Belt Cover Top

Note: (31380)

$

$

Currently unavailable

41

MTD 784-5290

Belt Cover Side Ass'y.

$

$

Currently unavailable

42

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

43

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

44

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

45

MTD 05002

Skid Shoe Kit
(Superseded to 05002-0637)

Variations

MTD 05002-0637

SLIDE SHOE - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

47

MTD 784-5275

Support Bracket

$

$

Currently unavailable

48

MTD 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

49

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

50

MTD 784-5287

Scraper Bar Kit 22"

Note: (31340)

$

$

Not available

MTD 784-5288

Scraper Bar Kit 24"

Note: (31350)

Variations

MTD 784-5288-0637

No Longer Available PLATE SHAV - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-5289

Scraper Bar Kit 28"

Note: (31380)

$

$

Not available

51

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

52

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

Part of Ref. No. 22

$

$

Not available

54

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 732-0494

Extension Spring .620" O.D. x3" Lg.

$

$

Currently unavailable

58

MTD 784-5286

Idler Bracket Ass'y.

$

$

Not available

59

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

60

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

61

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

62

MTD 756-0166

"V"-Idler 2.62" O.D.
(Superseded to 756-1035A)

$34.99

$

In Stock, only 3 left!

0

63

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

64

MTD 754-0296

V-Belt 3V x 58" Lg.
(Superseded to 954-0296)

Note: (31340)

$88.99

$

Usually ships in 3-6 days

0

MTD 754-0297

V-Belt 3V x 60" Lg.
(Superseded to 954-0297)

Note: (31350)

$

$

Not available

MTD 754-0298

V-Belt 3V x 64" Lg.

Note: (31380)

$

$

Not available

65

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

66

MTD 714-0122

Sq. Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

67

MTD 756-0478

518" "V"-Pulley .628" I.D. x 7.50" O.D.

$

$

Not available

68

MTD 756-0416

3/8" "V"-Pulley Half .625" I.D. x 2.25" O.D.
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

69

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" 0. D.

$4.49

$

In Stock, Qty 12

0

70

MTD 15297

Open Brg. Housing Ass'y.
(Superseded to 15297A)

$69.99

$

Usually ships in 3-6 days

0

71

MTD 738-0687

Fan Spindle

$

$

Not available

72

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

73

MTD 15296

Open Brg. Housing 1.85" I.D.
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

74

MTD 750-0674

Spacer .790" I.D. x 1.0" O.D.

$

$

Currently unavailable

75

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

77

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

79

MTD 05981

Chute Crank Ass'y. R.H. 39.0" Lg.

$

$

Not available

80

MTD 741-0475

Plastic Bushing .380" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

81

MTD 784-5123

Chute Crank Bracket
(Superseded to 784-5123-0637)

Variations

MTD 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

82

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

83

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

84

MTD 710-0286

Truss Mach. Scr. 1/4-20 X .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

85

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

86

MTD 731-0784

Upper Chute
(Superseded to 753-0831)

$

$

Not available

87

MTD 726-0234

Push Nut

$

$

Currently unavailable

88

MTD 711-0787

Chute Hinge Pin

$

$

Not available
