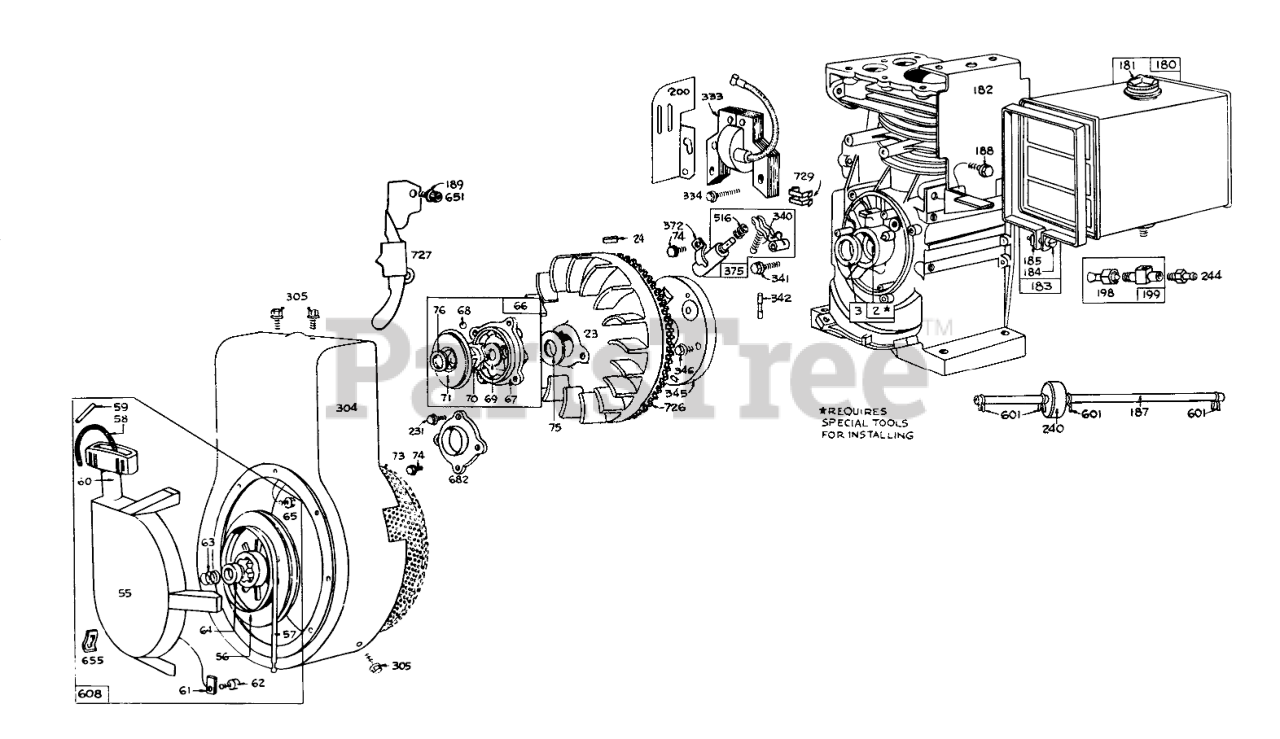

31320 (832) - Toro Snow Thrower (SN: 000200001 - 000299999) (1972) REWIND STARTER FOR BRIGGS & STRATTON MODEL NO. 170402, TYPE 1185-01 & MODEL NO. 190402, TYPE 0702-01 (7 H.P. SNOWTHROWER MODEL NO. Parts Diagram

Snow Thrower

REWIND STARTER FOR BRIGGS & STRATTON MODEL NO. 170402, TYPE 1185-01 & MODEL NO. 190402, TYPE 0702-01 (7 H.P. SNOWTHROWER MODEL NO. Parts Diagram

  • Title

2

Briggs & Stratton 295962

Bushing-Cylinder

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

23

Briggs & Stratton 299375

Flywheel

$156.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 295272

Housing-Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66564

Rope-Rewind Starter

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mtg.

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93106

Screw-Rewind Starter Housing Mounting
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 211383

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

69

Briggs & Stratton 66718

Washer-Thrust
(Superseded to 690271)

$8.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

180

Briggs & Stratton 290816

Tank Assy.,Fuel

$

$

Not available

181

Briggs & Stratton 297866

Cap-Fuel Tank
(Superseded to 791545)

$

$

Not available

182

Briggs & Stratton 221935

Bracket-Fuel Tank

$22.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291367

Strap Assy, Fuel Tank

$60.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw-Machine Fil. Hd.
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut-Square
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 299942

Pipe-Fuel
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

189

Toro 09366

Washer-Lock

$

$

Not available

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet-Fuel Tank
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 93064

Screw
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

244

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 390516

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 298968

Armature Assembly

$

$

Not available

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

345

Briggs & Stratton 222170

Cover-Breaker Point

$10.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93014

Screw
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 295001

Starter Assy, Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

651

Briggs & Stratton 92034

Screw

$

$

Not available

655

Briggs & Stratton 221014

Anchor Spring

$5.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield

$4.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 299543

Gear, Flywheel Ring (Includes Mounting Parts)

$204.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 221940

Guard-Ring Gear
(Superseded to 690490)

$14.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

CIip-Wire

$3.49

$

Usually ships in 2-12 days

0
