31320 (832) - Toro Snow Thrower (SN: 000200001 - 000299999) (1972) ENGINE BRIGGS & STRATTON MODEL NO. 170402, TYPE 1185-01 (7 H.P. SNOWTHROWER MODEL NO. 31760) Parts Diagram

Snow Thrower

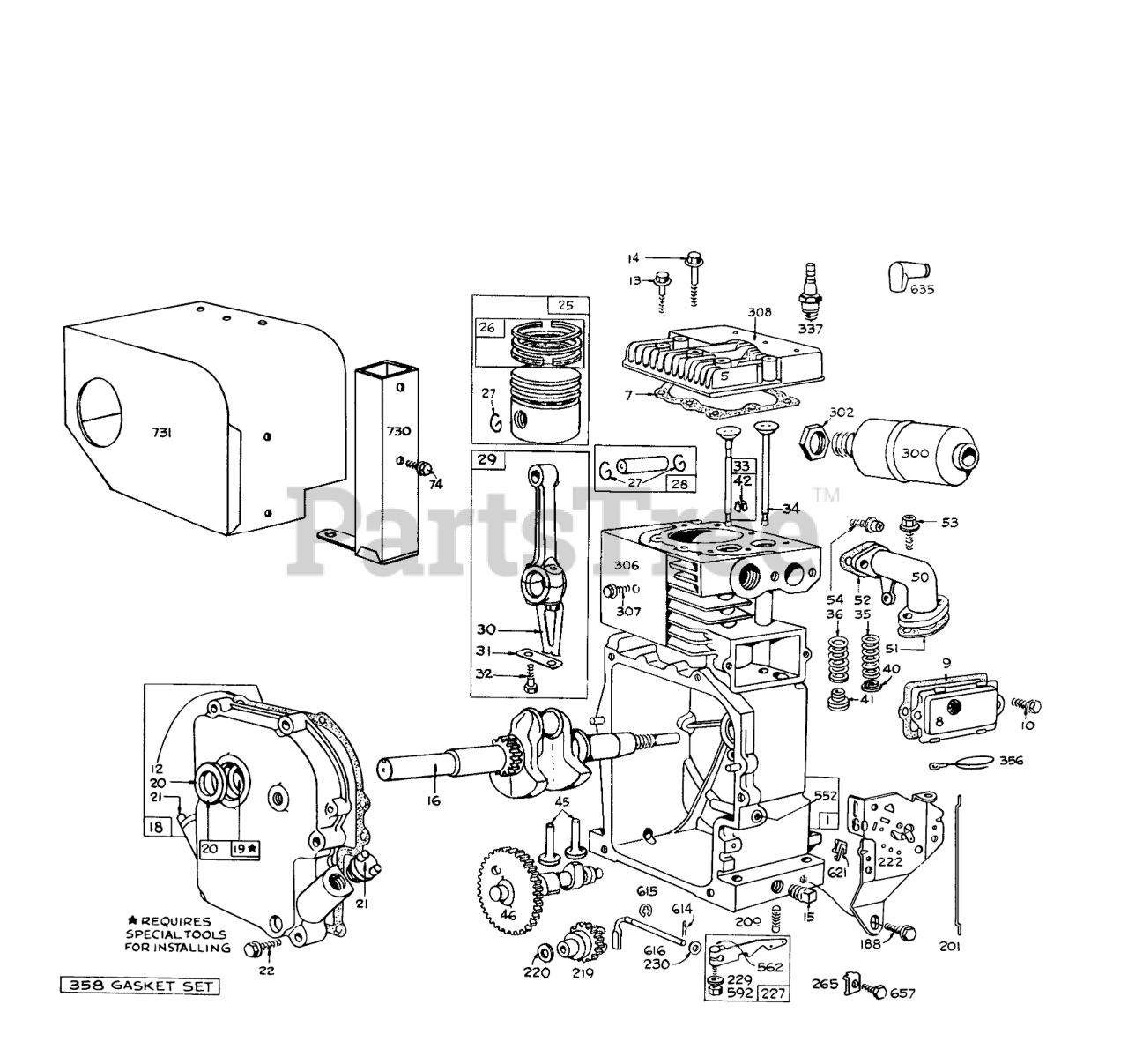

ENGINE BRIGGS & STRATTON MODEL NO. 170402, TYPE 1185-01 (7 H.P. SNOWTHROWER MODEL NO. 31760) Parts Diagram

  • Title

1

Toro 390399

Cylinder Assembly

$

$

Currently unavailable

5

Briggs & Stratton 211592

Head-CyIinder

$91.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 270430

Gasket-Cylinder Hd.
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577.

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 390321

Breather Assembly
(Superseded to 495724)

$122.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93536

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 27750

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577.

$8.99

$

In Stock, Qty 7

0

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577.

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93210

Screw-Cylinder Head
(Superseded to 93210GS)

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 93211

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 260315

Crankshaft
(Superseded to 492455)

$213.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 299167

Cover Assy.-Crankcase
(Superseded to 496982)

$100.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295964

Bushing

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 298423

Seal-OiI
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 299573

Piston Assembly-Std.
(Superseded to 499907)

$

$

Not available

Briggs & Stratton 299566

Piston Assy.-.010" O.S.
(Superseded to 499908)

$

$

Not available

Briggs & Stratton 299567

Piston Assy.-.020" O.S.
(Superseded to 499909)

$149.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 299568

Piston Assembly .030" O.S. PISTON RING SETS: Note: For Chrome Piston Ring Set-std. size-order Part No. 299743.
(Superseded to 499910)

$

$

Not available

26

Toro 299569

Ring Set-Piston-Std. Consists of:

$

$

Currently unavailable

Toro 211636

Ring, Piston, Comp., Center, Std.

$

$

Currently unavailable

Toro 211635

Ring,Piston,Oil,Std.

$

$

Currently unavailable

Toro 299570

Yoke Bushing

$

$

Currently unavailable

Toro 211650

Ring,Piston,Comp.,Center,.010" O.S.
(Superseded to 705730)

$

$

Not available

Toro 211651

Ring Piston, Oil, .010" O.S.

$

$

Currently unavailable

Toro 299571

Ring Set-Piston-.020" O.S. Consists of:

$

$

Currently unavailable

Toro 211654

Ring-Piston, Comp., Center, .020" O.S.
(Superseded to 743078)

$

$

Not available

Toro 211655

Ring-Piston, Oil, .020" O.S.

$

$

Currently unavailable

Toro 299572

Ring Set-Piston-.030" O.S. Consists of:

$

$

Currently unavailable

Toro 211658

Ring-Piston, Comp., Center, .030" O.S.

$

$

Not available

Toro 211659

Ring-Piston, Oil, .030" O.S.

$

$

Currently unavailable

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Toro 95840

Pin Assy.-Piston-Std.

$

$

Currently unavailable

Briggs & Stratton 295841

Pin-Piston (.005" O.S.)

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 295838

Rod Assy.-Connecting

$

$

Not available

30

Briggs & Stratton 220837

Dipper-Connecting Rod
(Superseded to 692339)

$10.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 220811

Lock-Conn. Rod Screw

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92659

Screw Conn. Rod
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390419

Valve-Exhaust
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

VaIve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210728

Gear-Cam
(Superseded to 691167)

$

$

Not available

50

Briggs & Stratton 210705

Elbow-Intake

$

$

Not available

51

Briggs & Stratton 65647

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 299577.

$4.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 65647

Gasket-Intake Elbow

Note: Included in Carburetor Overhaul Kit-Part No. 295938.

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 27828

Gasket-Intake Elbow
(Superseded to 27828S)

Note: Included in Gasket Set-Part No. 299577.

$4.99

$

In Stock, Qty 6

0

53

Briggs & Stratton 93128

Screw-Carburetor Mounting
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 1 left!

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

201

Briggs & Stratton 260872

Link-Governor

$

$

Not available

209

Briggs & Stratton 260695

Spring
(Superseded to 796260)

$4.99

$

In Stock, Qty 15

0

219

Briggs & Stratton 297656

Gear-Governor

$

$

Not available

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 390670

Plate-Gov. Control

$

$

Not available

227

Briggs & Stratton 299165

Lever Assy.-Governor

$13.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Clamp-Casing

$3.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

300

Briggs & Stratton 294599

Muffler-Exhaust
(Superseded to 294599S)

$16.99

$

In Stock, only 1 left!

0

302

Briggs & Stratton 91242

Locknut-Muffler
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

306

Briggs & Stratton 221898

Screw-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 221901

Cover-Cylinder Head

$9.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 298809

Plug Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 299500

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

552

Briggs & Stratton 230843

Bushing-Governor Shaft

$5.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 230842

Crank-Governor
(Superseded to 231070)

$9.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 11

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

730

Briggs & Stratton 299384

Stack-Air

$21.99

$

Usually ships in 2-12 days

0

731

Briggs & Stratton 299391

Hood-Snow
(Superseded to 492291)

$

$

Not available
