31320 (832) - Toro Snow Thrower (SN: 000200001 - 000299999) (1972) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

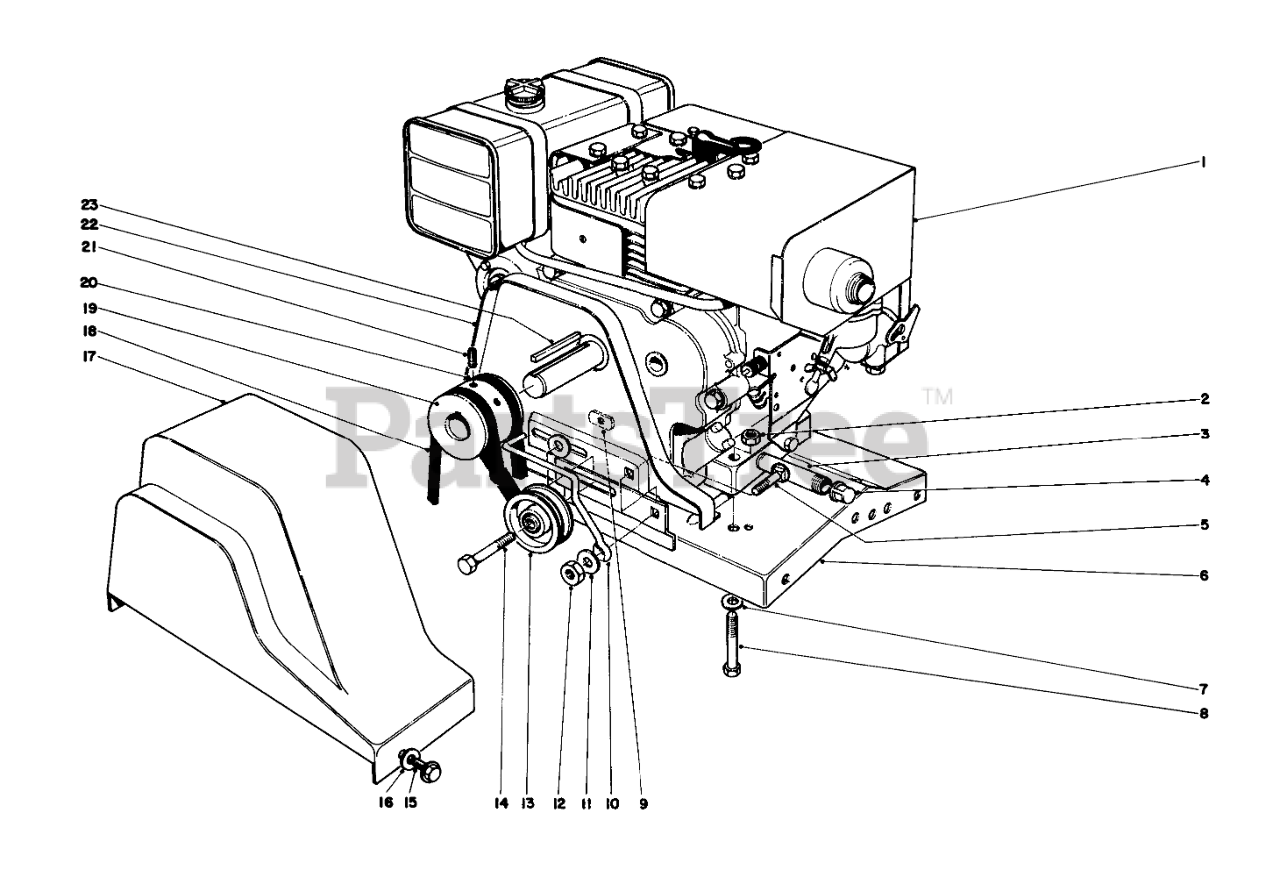

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-397

Engine (5 HP)

$

$

Currently unavailable

Toro 221-396

Engine (7 HP)

Note: Not illustrated

$

$

Currently unavailable

2

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 289-20

NIPPLE-PIPE

$

$

Not available

4

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

5

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

6

Toro 11-7100

Engine Base

$

$

Currently unavailable

7

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

9

Toro 32141-116

Weldnut

$

$

Currently unavailable

10

Toro 8-8830

BELT GUIDE

$

$

Not available

11

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

13

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

14

Toro 3211-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

15

Toro 32140-81

Screw, Self-tapping
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 6

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 8-8840

Belt Guard
(Superseded to 17-6550)

$

$

Not available

18

Toro 10-0230

V-Belt
(Superseded to 26-9670)

$28.99

$

In Stock, only 2 left!

0

19

Toro 11-9110

Pulley
(Superseded to 21-4100)

$

$

Not available

20

Toro 5-9760

V-Belt
(Superseded to 17-6540)

$29.99

$

In Stock, only 4 left!

0

21

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

22

Toro 8-8580

Belt Guard

$

$

Currently unavailable

23

Toro 5-0930

KEY

$

$

Not available

Toro 10-4260

Starter Kit Domestic (Opt.)

Note: Not illustrated

$

$

Currently unavailable

Toro 10-4280

Starter Kit Canada Optional

Note: Not illustrated

$

$

Currently unavailable
