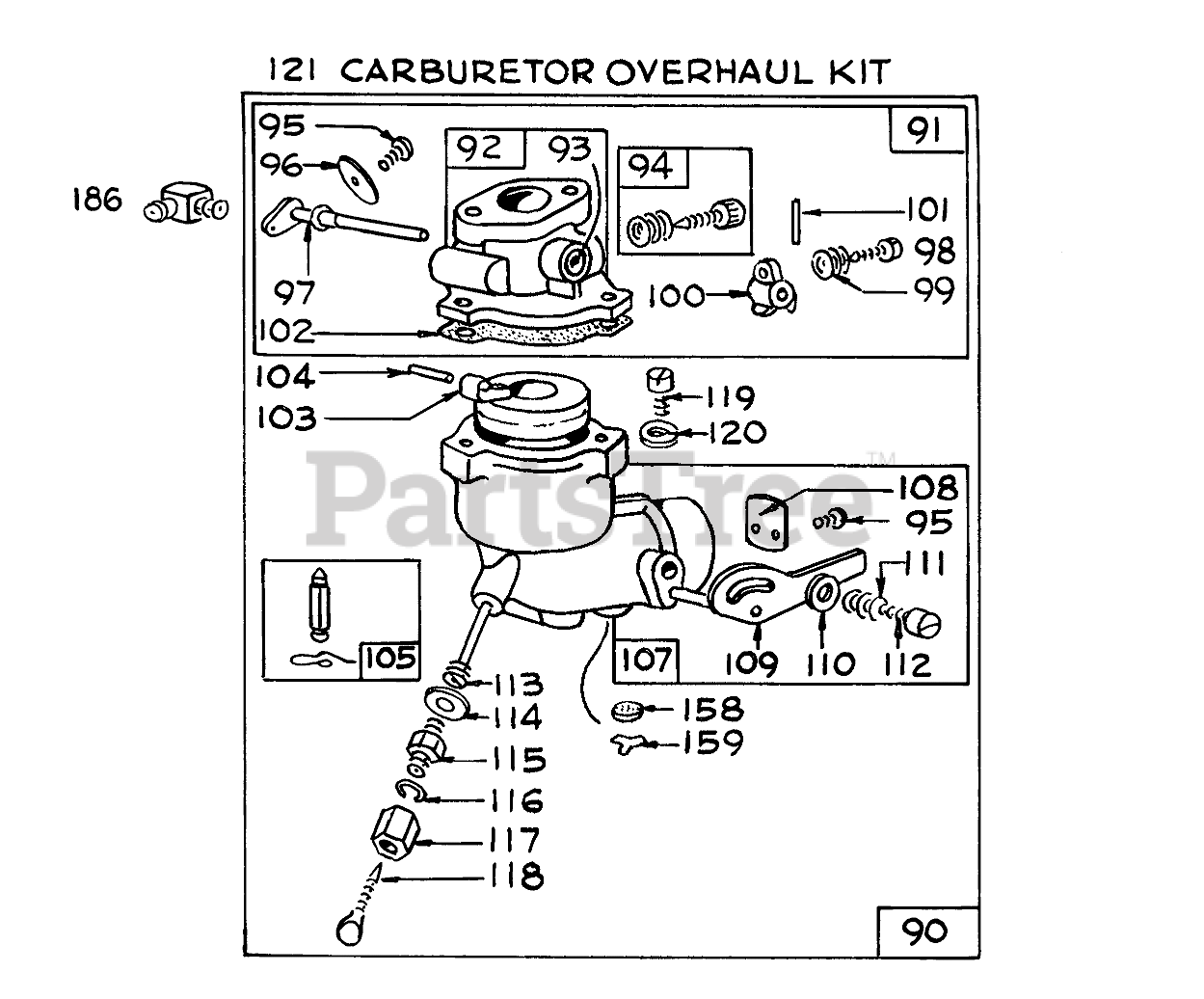

31320 (832) - Toro Snow Thrower (SN: 000200001 - 000299999) (1972) CARBURETOR FOR BRIGGS & STRATTON MODEL NO. 170402, TYPE 1185-01 (7 H.P. SNOWTHROWER MODEL NO. 31760) Parts Diagram

Snow Thrower

CARBURETOR FOR BRIGGS & STRATTON MODEL NO. 170402, TYPE 1185-01 (7 H.P. SNOWTHROWER MODEL NO. 31760) Parts Diagram

  • Title

90

Briggs & Stratton 299169

Carburetor Assembly
(Superseded to 390323)

$

$

Not available

91

Briggs & Stratton 299171

Body Assembly, Upper Carb.
(Superseded to 390404)

$123.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 295858

Body-Upper Carburetor
(Superseded to 390404)

$123.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93038

Screw, Throttle Valve Mtg. Sem
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 62940

Value-Throttle
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Body

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$4.49

$

In Stock, Qty 14

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 299170

Body Assy., Lower Carb.

$128.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 221835

Valve-Choke

$8.49

$

In Stock, only 2 left!

0

109

Briggs & Stratton 298875

Shaft & Lever, Choke
(Superseded to 391987)

$9.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Choke Lever
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 390395

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$

$

Not available

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$6.49

$

In Stock, only 1 left!

0

115

Toro 23117

Retainer-Needle Valve

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$

$

Currently unavailable

116

Briggs & Stratton 68677

Latch Bar

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$3.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 23118

Nut-Needle Valve Pkng.
(Superseded to 5023118)

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$7.99

$

Usually ships in 2-12 days

0

118

Toro 230009

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 295938

$

$

Currently unavailable

119

Briggs & Stratton 90746

Screw-Machine. Fil.Hd.
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

120

Briggs & Stratton 92290

Washer-Lock
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 295938

Carburetor Overhau Kit

$31.99

$

In Stock, Qty 20+

0

158

Briggs & Stratton 27590

Filter-Carburetor Drain

$6.49

$

In Stock, only 1 left!

0

159

Briggs & Stratton 220521

Retainer, Carb. Drain Filter

$

$

Not available

186

Briggs & Stratton 67218

Connector-Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0
