31304 - Toro Snow Hound Snow Thrower (SN: 004000001 - 004999999) (1974) ENGINE H35-45228G TECUMSEH PRODUCTS COMPANY Parts Diagram

Snow Hound Snow Thrower

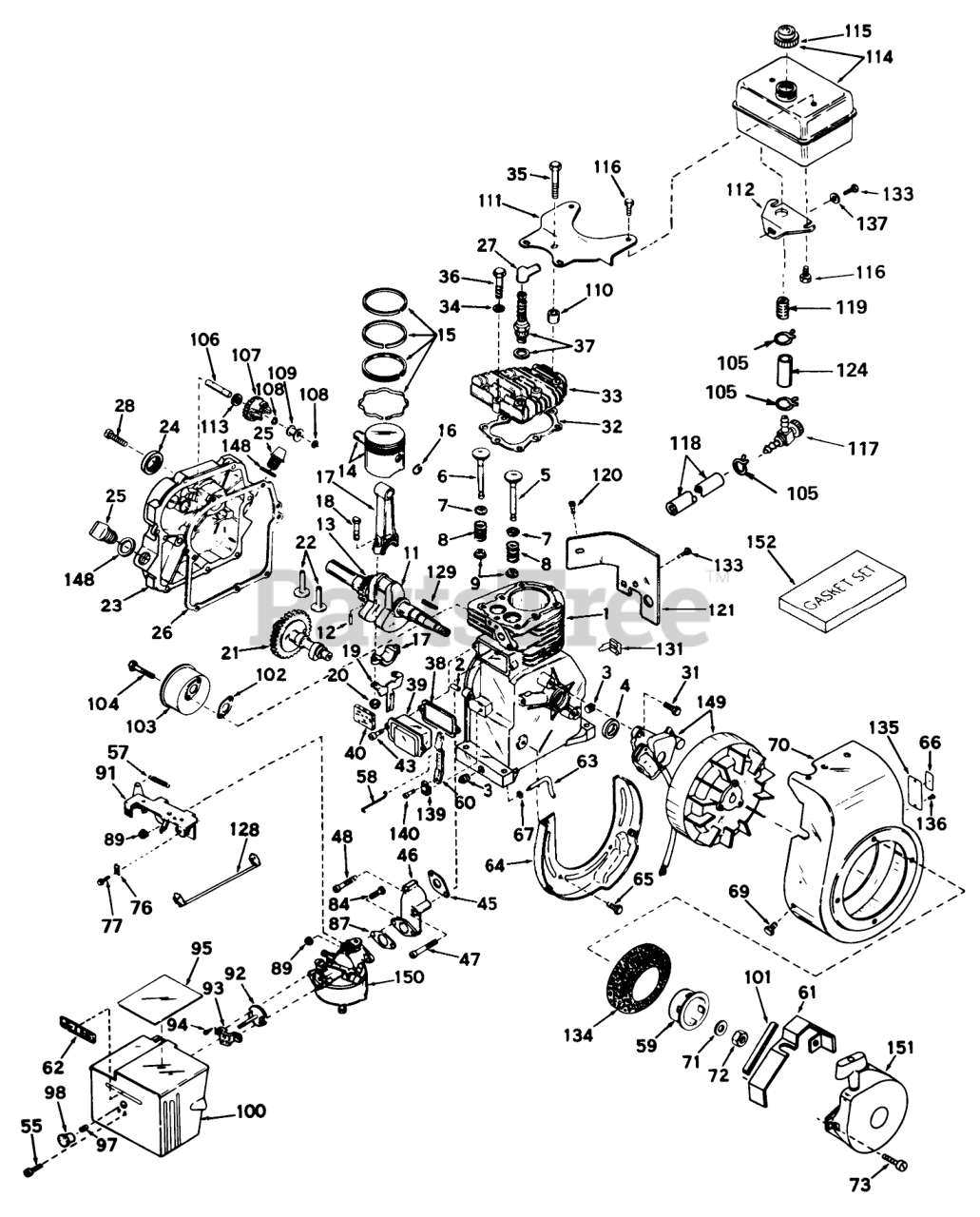

ENGINE H35-45228G TECUMSEH PRODUCTS COMPANY Parts Diagram

  • Title

1

Tecumseh 33164

Cylinder Assy. (Incl. Nos. 2, 3 & 4)
(Superseded to 33164A)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 29183

OIL SEAL

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Standard) (Incl. Nos. 7, 8 & 9)
(Superseded to 29314C)

$5.99

$

Usually ships in 3-12 days

0

5

Tecumseh 29316A

Valve, Intake (1/32" oversize) (Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313A

Valve, Exhaust (Standard) (Incl. Nos. 7, 8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315A

Valve, Exhaust (1/32 O.S.)(Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

11

Toro 3255A

Crankshaft Assy. (Incl. Nos. 12 & 13)

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 32538

Piston & Pin Assy. (Incl. 2 of No. 16) (Standard)
(Superseded to 32538B)

$

$

Not available

14

Tecumseh 32548

Piston & Pin Assy. (Incl. 2 of No. 16) (.010 oversize)
(Superseded to 32548B)

$

$

Not available

14

Tecumseh 32549

Piston & Pin Assy. (Incl. 2 of No. 16) (.020 oversize)
(Superseded to 32549B)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 28594

53020/22 GIL.HYDRO

$8.99

$

In Stock, only 2 left!

0

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 33149

Camshaft (Compression Release
(Superseded to 33149A)

$

$

Not available

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 30941C

Cover, Cylinder (Incl. Nos. 24, 25, 106 & 148)
(Superseded to 30941E)

$98.99

$

Usually ships in 3-12 days

0

24

Tecumseh 30256

Seal, Oil

$8.99

$

In Stock, only 1 left!

0

25

Tecumseh 27625

Plug-Fill, Oil

$2.49

$

In Stock, Qty 5

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates items included in Gasket set Part No. 33233.

$7.49

$

In Stock, only 4 left!

0

27

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 2 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Indicates items included in Gasket set Part No. 33233.

$16.99

$

In Stock, only 1 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, Qty 6

0

37

Tecumseh 21943

SPARK PLUG
(Superseded to 33636)

$5.99

$

In Stock, Qty 8

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket set Part No. 33233.

$7.49

$

In Stock, only 1 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. Nos. 38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 18

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Indicates items included in Gasket set Part No. 33233.

$1.99

$

In Stock, Qty 6

0

46

Tecumseh 28416

Pipe, Intake
(Superseded to 28416A)

$

$

Not available

47

Tecumseh 30647

Screw
(Superseded to 650664)

$1.99

$

In Stock, Qty 7

0

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 1 left!

0

55

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 15

0

57

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

59

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

61

Tecumseh 31680

Guard, Starter

$5.49

$

Usually ships in 3-12 days

0

62

Tecumseh 31683

Decal, Choke

$

$

Currently unavailable

63

Tecumseh 31334

Rod-Governor

$5.49

$

Usually ships in 3-12 days

0

64

Tecumseh 30658

Baffle, Blower Hsg.

$

$

Currently unavailable

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31681

Decal, Instruction
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, only 4 left!

0

70

Tecumseh 30655A

Housing, Blower

$

$

Currently unavailable

71

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29716

Screw

$1.49

$

In Stock, only 4 left!

0

76

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

84

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket set Part No. 33233.

$2.99

$

In Stock, only 2 left!

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

91

Tecumseh 33112

Control Assy., Remote Speed (Incl. No. 56)
(Superseded to 33112A)

$

$

Currently unavailable

92

Tecumseh 32397

Plate, Choke

$

$

Currently unavailable

93

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 1 left!

0

94

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

95

Tecumseh 31682

Decal, Operating

$

$

Currently unavailable

97

Tecumseh 32399

Spring, Compression

$

$

Currently unavailable

98

Tecumseh 32400

Knob, Choke

$

$

Not available

100

Tecumseh 32417

Capscrew

$

$

Currently unavailable

101

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates items included in Gasket set Part No. 33233.

$1.49

$

In Stock, Qty 5

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

107

Tecumseh 30591

Governor Gear ASM

$13.99

$

Usually ships in 3-12 days

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 5

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

110

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 28371A

Bracket, Fuel tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

113

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

114

Tecumseh 33120

Tank Assy., Fuel (Incl. Nos. 115 & 116)
(Superseded to 35584)

$45.99

$

In Stock, only 3 left!

0

115

Tecumseh 30998B

Cap, Fuel
(Superseded to 34210)

$8.49

$

In Stock, Qty 11

0

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, Qty 5

0

117

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

In Stock, Qty 11

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

119

Tecumseh 28819

Spring, Coil

$

$

Not available

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

124

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 5

0

128

Tecumseh 28468

Wire, Ground
(Superseded to 35349)

$

$

Not available

129

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

131

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

133

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

134

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

135

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

136

Tecumseh 29309

DRIVE STUD

$

$

Currently unavailable

137

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

148

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket set Part No. 33233.

$1.99

$

In Stock, only 2 left!

0

149

Tecumseh 610690A

Magneto

$

$

Currently unavailable

150

Tecumseh 630958B

Carburetor

$110.99

$

Usually ships in 3-12 days

0

151

Tecumseh 590473

Starter Assy., Rewind
(Superseded to 590602)

$

$

Not available

152

Tecumseh 33233

Gasket Set
(Superseded to 33233A)

$16.99

$

Usually ships in 3-12 days

0
