31302 - Toro Snow Hound Snow Thrower (SN: 003000001 - 003999999) (1973) HANDLE ASSEMBLY Parts Diagram

Snow Hound Snow Thrower

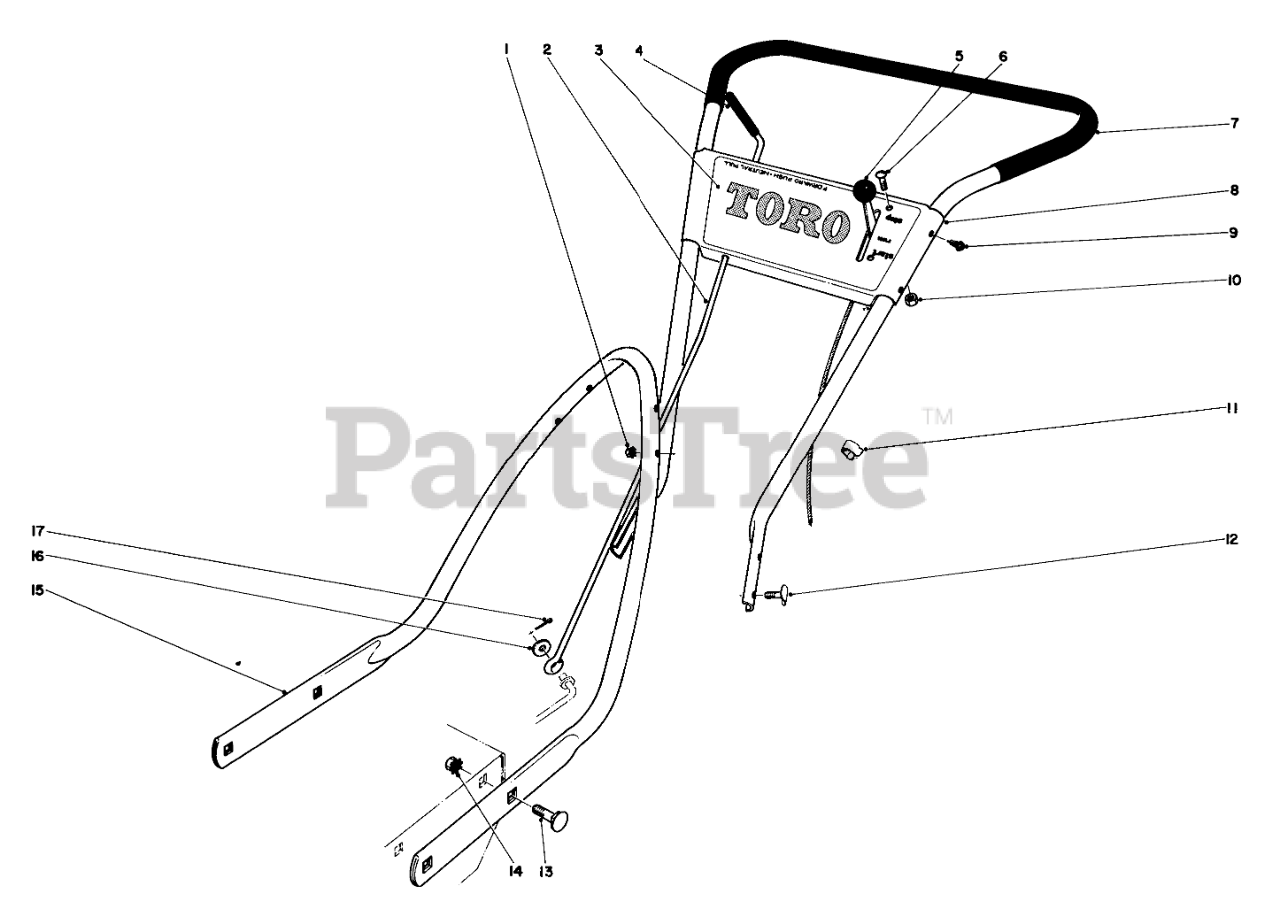

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

2

Toro 11-5090

Rod, Traction Control

$

$

Currently unavailable

3

Toro 17-1910

Decal

$

$

Currently unavailable

4

Toro 11-5110

Grip

$

$

Not available

5

Toro 11-4940

Control, Throttle

$

$

Not available

6

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

7

Toro 5-4049

Handle, Upper Assembly (Incl. Ref. 3 & 8)

$

$

Not available

8

Toro 5-4799

Plate, Escutcheon (Incl. Ref. No. 3)

$

$

Currently unavailable

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

11

Toro 218-404

Clip

$

$

Not available

12

Toro 3-2654

Bolt

$

$

Not available

13

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

14

Toro 32149-4

Nut

$

$

Currently unavailable

15

Toro 3-6046

Handle, Lower

$

$

Currently unavailable

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0
