31302 - Toro Snow Hound Snow Thrower (SN: 002000001 - 002999999) (1972) MAGNETO NO. 610690A Parts Diagram

Snow Hound Snow Thrower

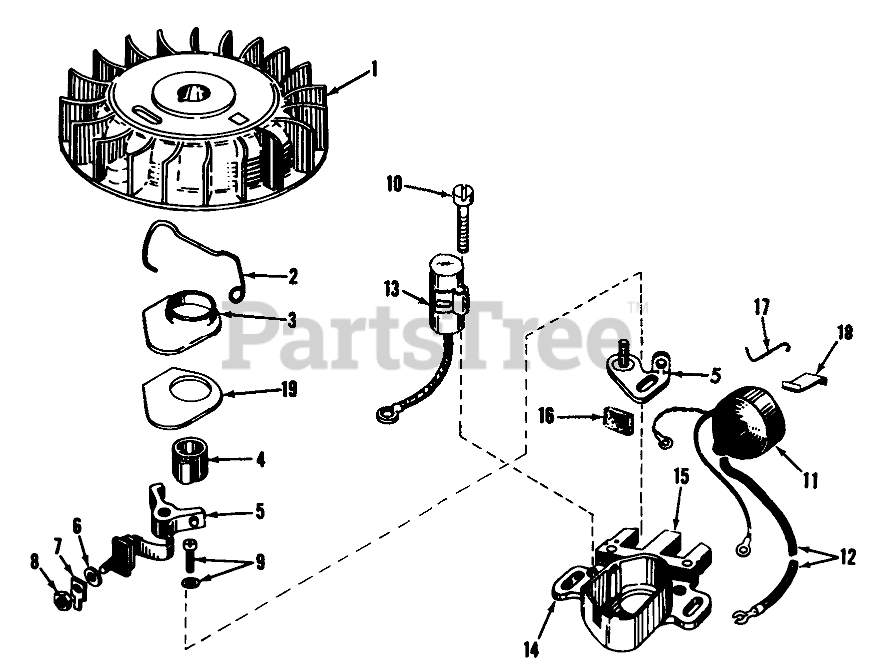

MAGNETO NO. 610690A Parts Diagram

  • Title

1

Tecumseh 31332

Flywheel

$

$

Currently unavailable

2

Tecumseh 30551

Spring Breaker Box

$

$

Not available

3

Tecumseh 30550

Cover, Dust
(Superseded to 610947)

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30552

Cam, Breaker

$

$

Not available

5

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 610385

Washer

$

$

Not available

7

Tecumseh 30843

Terminal
(Superseded to 33356)

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 610408

DECAL

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

$

$

Not available

10

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 30560

Coil Assy., (Incl. Ref. Nos. 12, 13, & 18)
(Superseded to 30560A)

$48.99

$

In Stock, only 1 left!

0

12

Tecumseh 30554

Wire, Lead

$

$

Not available

13

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 10

0

14

Tecumseh 30545

Core & Plate

$

$

Not available

15

Tecumseh 30561A

Stator Assy., (Incl. Nos. 2, 3, 5 thru 14 & 16 thru 19)
(Superseded to 30561B)

$

$

Not available

16

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

17

Tecumseh 31311

Clip, Coil

$

$

Not available

18

Tecumseh 29629

Spring Coil Wedge

$

$

Not available

19

Tecumseh 32052

Gasket Dust Cover

$

$

Not available
