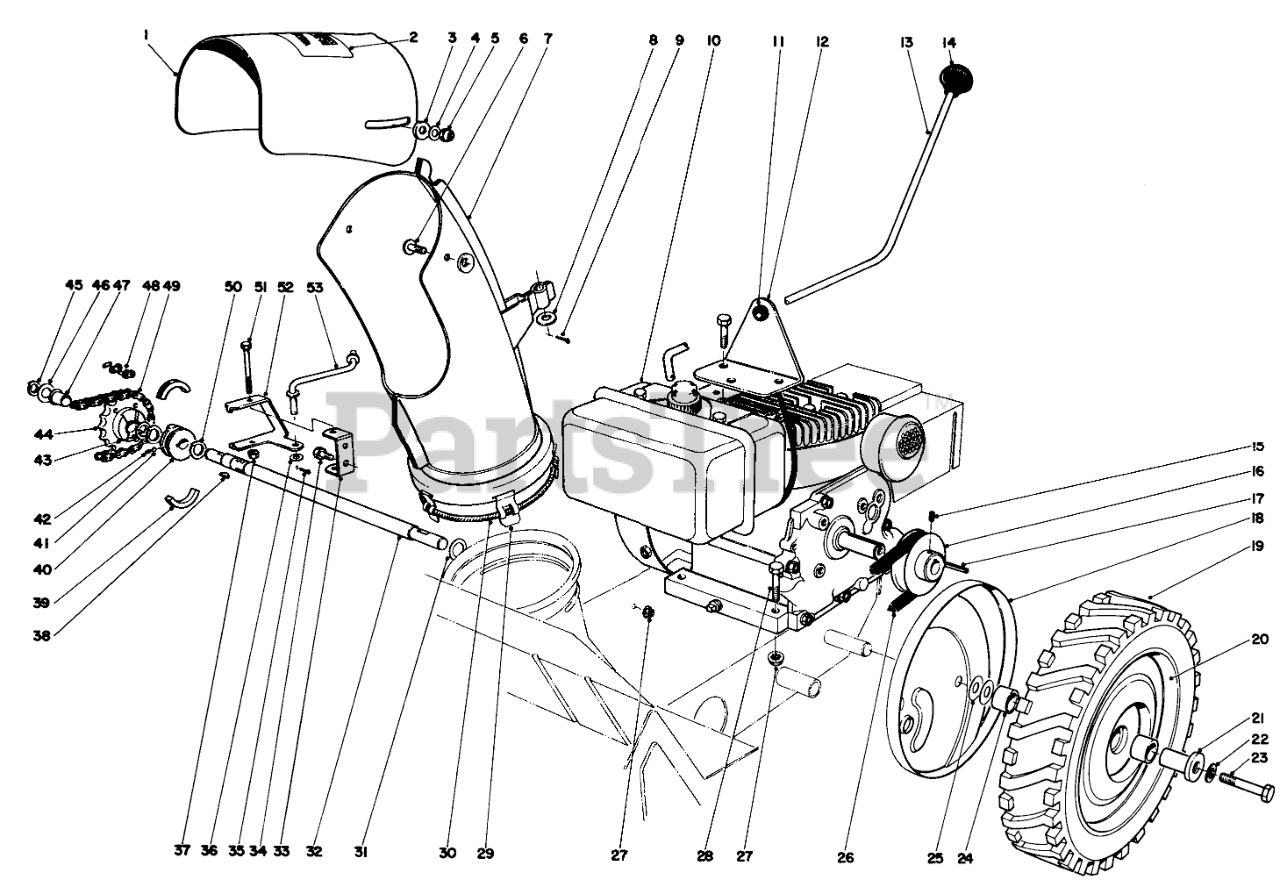

31302 - Toro Snow Hound Snow Thrower (SN: 002000001 - 002999999) (1972) ENGINE AND DRIVE ASSEMBLY Parts Diagram

Snow Hound Snow Thrower

ENGINE AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3-2596

Deflector

$

$

Not available

2

Toro 10-2980

Decal
(Superseded to 22-8730)

$

$

Not available

3

Toro 3290-249

Washer

$

$

Currently unavailable

4

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

6

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

7

Toro 11-5060

Chute, Upper

$

$

Currently unavailable

8

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

9

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

10

Toro 221-395

Engine

$

$

Currently unavailable

11

Toro 3-5975

Grommet

$

$

Currently unavailable

12

Toro 11-4970

Chute Control Bracket

$

$

Currently unavailable

13

Toro 11-5030

Chute Control Rod

$

$

Currently unavailable

14

Toro 233-10

KNOB-LEVER

$64.99

$

Usually ships in 3-6 days

0

15

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 3-6045

Pulley

$

$

Not available

17

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

18

Toro 4-8540

Wheel Cover

$

$

Not available

19

Toro 3-5955

TIRE

$

$

Not available

20

Toro 1-3899

Wheel (Incl. Ref. 24)

$

$

Currently unavailable

21

Toro 3-6006

Spindle Wheel

$

$

Not available

22

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

24

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

25

Toro 5-0744

WASHER

$

$

Not available

26

Toro 3-6044

BELT

$

$

Not available

27

Toro 3290-187

Locknut

$

$

Currently unavailable

28

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3-3885

Clip

$

$

Currently unavailable

30

Toro 3-3927

Garter Spring

$

$

Not available

31

Toro 2-1640

Washer

$

$

Currently unavailable

32

Toro 3-3921

Drive Shaft

$

$

Not available

33

Toro 3-6424

Pivot Support

$

$

Currently unavailable

34

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

35

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

36

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

38

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

39

Toro 3-5264

DOG

$

$

Not available

40

Toro 3-1631

Sliding Jaw

$

$

Currently unavailable

41

Toro 255-5

BALL-STEEL

$

$

Not available

42

Toro 2-4340

Spring

$

$

Currently unavailable

43

Toro 3-1223

Thrust Washer

$

$

Currently unavailable

44

Toro 3-9240

Sprocket Assy. (Incl. Ref. 47)

$

$

Not available

45

Toro 32120-91

Snap Ring

$

$

Currently unavailable

46

Toro 5-1078

Washer

$

$

Not available

47

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

48

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

49

Toro 3-6015

Chain

$

$

Not available

50

Toro 32120-41

5/8X039 EX HD RING

$

$

Currently unavailable

51

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

52

Toro 3-6005

Fork Shift

$

$

Not available

53

Toro 3-6021

Link Shift

$

$

Not available

Toro 3-4005

Funnel

Note: Not illustrated

$

$

Currently unavailable

Toro 11-5260

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
