31301 - Toro Snow Hound Snow Thrower (SN: 008000001 - 008999999) (1968) ENGINE MODEL NO. H35-45171F PARTS LIST Parts Diagram

Snow Hound Snow Thrower

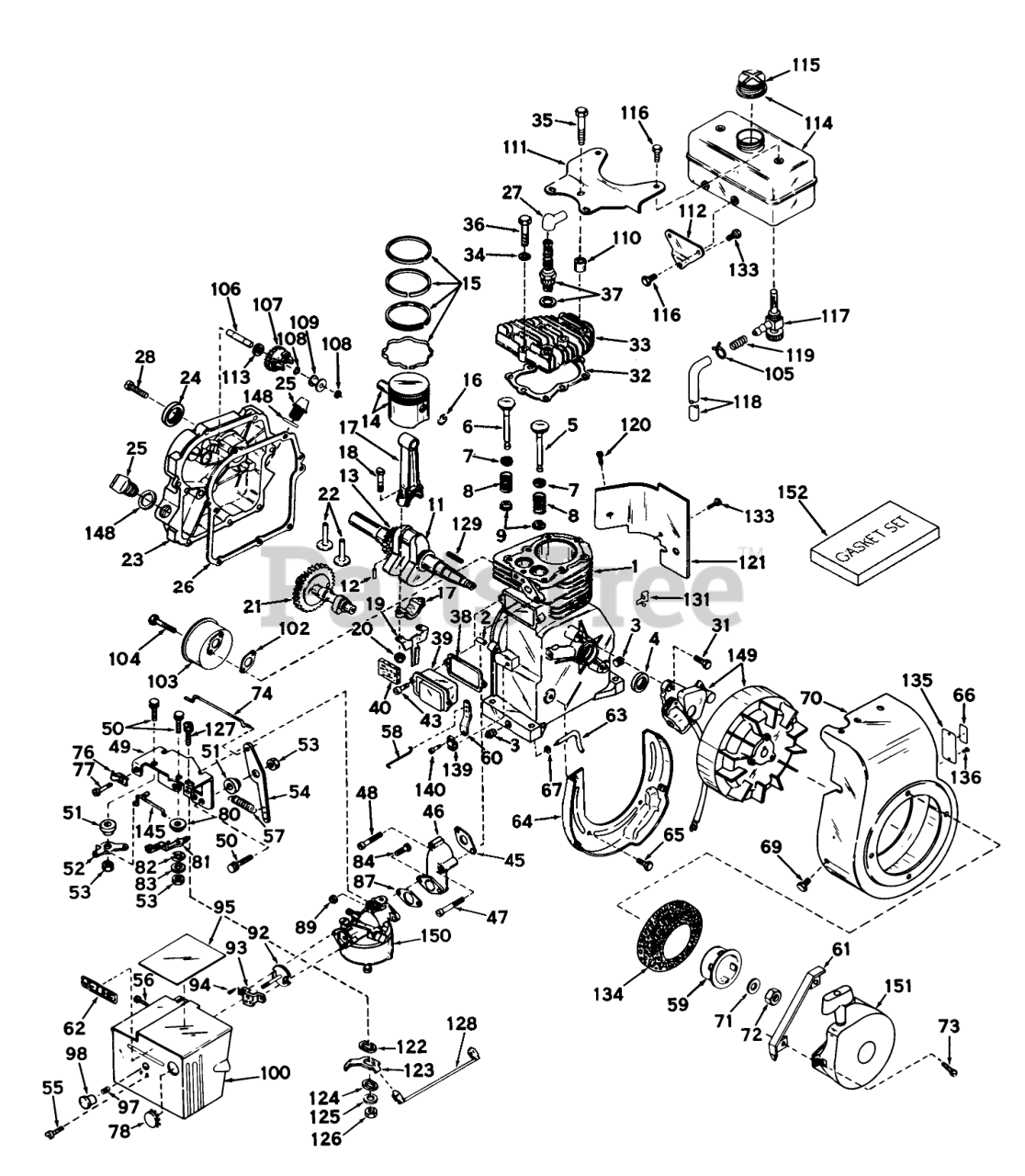

ENGINE MODEL NO. H35-45171F PARTS LIST Parts Diagram

  • Title

1

Tecumseh 31270

Cylinder Assy., (Incl. Nos. 2, 3 & 4)
(Superseded to 33164A)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 29183

OIL SEAL

Note: Indicates items included in Gasket Set No. 31346A.

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Standard)(Incl. Nos. 7, 8 & 9)
(Superseded to 29314C)

$5.99

$

Usually ships in 3-12 days

0

5

Tecumseh 29316A

Valve, Intake (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313A

Valve, Exhaust (Standard)(Incl. Nos. 7, 8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315A

Valve, Exhaust (1/32" oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 30946

Crankshaft Assy. (Incl. Nos. 12 & 13)
(Superseded to 32555B)

$137.99

$

Usually ships in 3-12 days

0

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 31307

Piston & Pin Assy. (Incl. 2 of No. 16)(Standard)
(Superseded to 32538B)

$

$

Not available

14

Tecumseh 31308

Piston & Pin Assy. (Incl. 2 of No. 16)(.010 oversize)
(Superseded to 32548B)

$

$

Not available

14

Tecumseh 31309

Piston & Pin Assy. (Incl. 2 of No. 16)(.020 oversize)
(Superseded to 32549B)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30809

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)
(Superseded to 30963B)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 28594

53020/22 GIL.HYDRO

$8.99

$

In Stock, only 2 left!

0

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 31317

Camshaft
(Superseded to 33149A)

$

$

Not available

22

Toro 2724

Hook-Battery

$

$

Currently unavailable

23

Tecumseh 30941A

Cover, Cylinder (Incl. Nos. 24 & 106)
(Superseded to 30941E)

$98.99

$

Usually ships in 3-12 days

0

24

Tecumseh 30256

Seal, Oil

Note: Indicates items included in Gasket Set No. 31346A.

$8.99

$

In Stock, only 1 left!

0

25

Tecumseh 27625

Plug-Fill, Oil

$2.49

$

In Stock, Qty 5

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates items included in Gasket Set No. 31346A.

$7.49

$

In Stock, only 4 left!

0

27

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 2 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Indicates items included in Gasket Set No. 31346A.

$16.99

$

In Stock, only 1 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 6023

Screw
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, Qty 6

0

37

Tecumseh 21943

SPARK PLUG
(Superseded to 33636)

$5.99

$

In Stock, Qty 8

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket Set No. 31346A.

$7.49

$

In Stock, only 1 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. Nos. 38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 18

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Indicates items included in Gasket Set No. 31346A.

$1.99

$

In Stock, Qty 6

0

46

Tecumseh 28413

INTAKE PIPE
(Superseded to 28416A)

$

$

Not available

47

Tecumseh 30647

Screw
(Superseded to 650664)

$1.99

$

In Stock, Qty 7

0

48

Tecumseh 30646

Screw

$8.99

$

In Stock, only 1 left!

0

49

Tecumseh 30821

Bracket, Speed Control

$

$

Currently unavailable

50

Tecumseh 30312

SCREW, HEX WASHER HD.

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$1.99

$

In Stock, only 2 left!

0

51

Tecumseh 29530

Bushing

$3.99

$

In Stock, only 1 left!

0

52

Tecumseh 30861

Lever, RPM Adjusting

$

$

Currently unavailable

53

Tecumseh 30529

Nut
(Superseded to 651016)

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$1.99

$

In Stock, Qty 5

0

54

Tecumseh 30873

Lever, Bell Crank

$

$

Currently unavailable

55

Tecumseh 14661

752 SICKLE BAR MOWE
(Superseded to 650257)

$1.49

$

In Stock, Qty 15

0

56

Tecumseh 650546

Screw, Rd. Hd. Sheet Metal
(Superseded to 650760)

$1.99

$

In Stock, Qty 7

0

57

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

59

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

Usually ships in 3-12 days

0

61

Tecumseh 31680

Guard, Starter

$5.49

$

Usually ships in 3-12 days

0

62

Tecumseh 31683

Decal, Choke

$

$

Currently unavailable

63

Tecumseh 31334

Rod-Governor

$5.49

$

Usually ships in 3-12 days

0

64

Tecumseh 30658

Baffle, Blower Hsg.

$

$

Currently unavailable

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31681

Decal, Instruction
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

69

Tecumseh 650556

Screw

$

$

Not available

70

Tecumseh 30655

Housing,Blower
(Superseded to 30655A)

$

$

Currently unavailable

71

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29716

Screw

$1.49

$

In Stock, only 4 left!

0

74

Tecumseh 30865

Link, Bell Crank

$

$

Not available

76

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

78

Tecumseh 31291

Plug

$

$

Currently unavailable

80

Tecumseh 30773

Bushing Control Lever
(Superseded to 30773A)

$

$

Not available

81

Tecumseh 31269

Lever, Control
(Superseded to 31269A)

$

$

Currently unavailable

82

Tecumseh 28558

Washer

$1.99

$

Usually ships in 3-12 days

0

83

Tecumseh 30369

Washer, Flat

$

$

Currently unavailable

84

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set No. 31346A.

$2.99

$

In Stock, only 1 left!

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

92

Tecumseh 32397

Plate, Choke

$

$

Currently unavailable

93

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 1 left!

0

94

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

95

Tecumseh 31682

Decal, Operating

$

$

Currently unavailable

97

Tecumseh 32399

Spring, Compression

$

$

Currently unavailable

98

Tecumseh 32400

Knob, Choke

$

$

Not available

100

Tecumseh 32417

Capscrew

$

$

Currently unavailable

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates items included in Gasket Set No. 31346A.

$1.49

$

In Stock, Qty 5

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 650538

Screw, Hex Hd. Cap
(Superseded to 650493)

$3.99

$

In Stock, Qty 7

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

107

Tecumseh 30591

Governor Gear ASM

$13.99

$

Usually ships in 3-12 days

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

110

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 28371

Bracket, Fuel Tank-Upper
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 28209

Bracket, Fuel Tank-Lower

$

$

Currently unavailable

113

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

114

Tecumseh 30656

Tank Assy., Fuel (Incl. No. 115)
(Superseded to 30656B)

$

$

Not available

115

Tecumseh 30998

Cap, Fuel Tank
(Superseded to 34210)

$8.49

$

In Stock, Qty 11

0

116

Tecumseh 650556

Screw

$

$

Not available

117

Tecumseh 29683

Fitting & Shut-off, Fuel

$14.99

$

In Stock, only 1 left!

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

119

Tecumseh 28819

Spring, Coil

$

$

Not available

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

122

Tecumseh 30092

Washer, Insulating

$

$

Currently unavailable

123

Tecumseh 30093

Terminal

$

$

Currently unavailable

124

Tecumseh 30094

Washer, Insulating

$

$

Currently unavailable

125

Tecumseh 30771

Washer, Flat
(Superseded to 650583)

$1.99

$

In Stock, only 2 left!

0

126

Tecumseh 30095

Nut
(Superseded to 30322)

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$1.99

$

Usually ships in 3-12 days

0

127

Tecumseh 30091

Screw, Hex Slotted Hd.
(Superseded to 650139)

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$1.99

$

In Stock, only 4 left!

0

128

Tecumseh 28468

Wire, Ground
(Superseded to 35349)

$

$

Not available

129

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

131

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

133

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

134

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

135

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

136

Tecumseh 29309

DRIVE STUD

$

$

Currently unavailable

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

145

Tecumseh 30774

Link, RPM Adjusting

$

$

Currently unavailable

148

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket Set No. 31346A.

$1.99

$

In Stock, only 2 left!

0

149

Tecumseh 610690A

Magneto

$

$

Currently unavailable

150

Tecumseh 630958B

Carburetor

$110.99

$

Usually ships in 3-12 days

0

151

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0

152

Tecumseh 31346A

Gasket Set
(Superseded to 33233A)

$16.99

$

Usually ships in 3-12 days

0
