31301 - Toro Snow Hound Snow Thrower (SN: 001000001 - 001999999) (1971) CARBURETOR NO. 630958B Parts Diagram

Snow Hound Snow Thrower

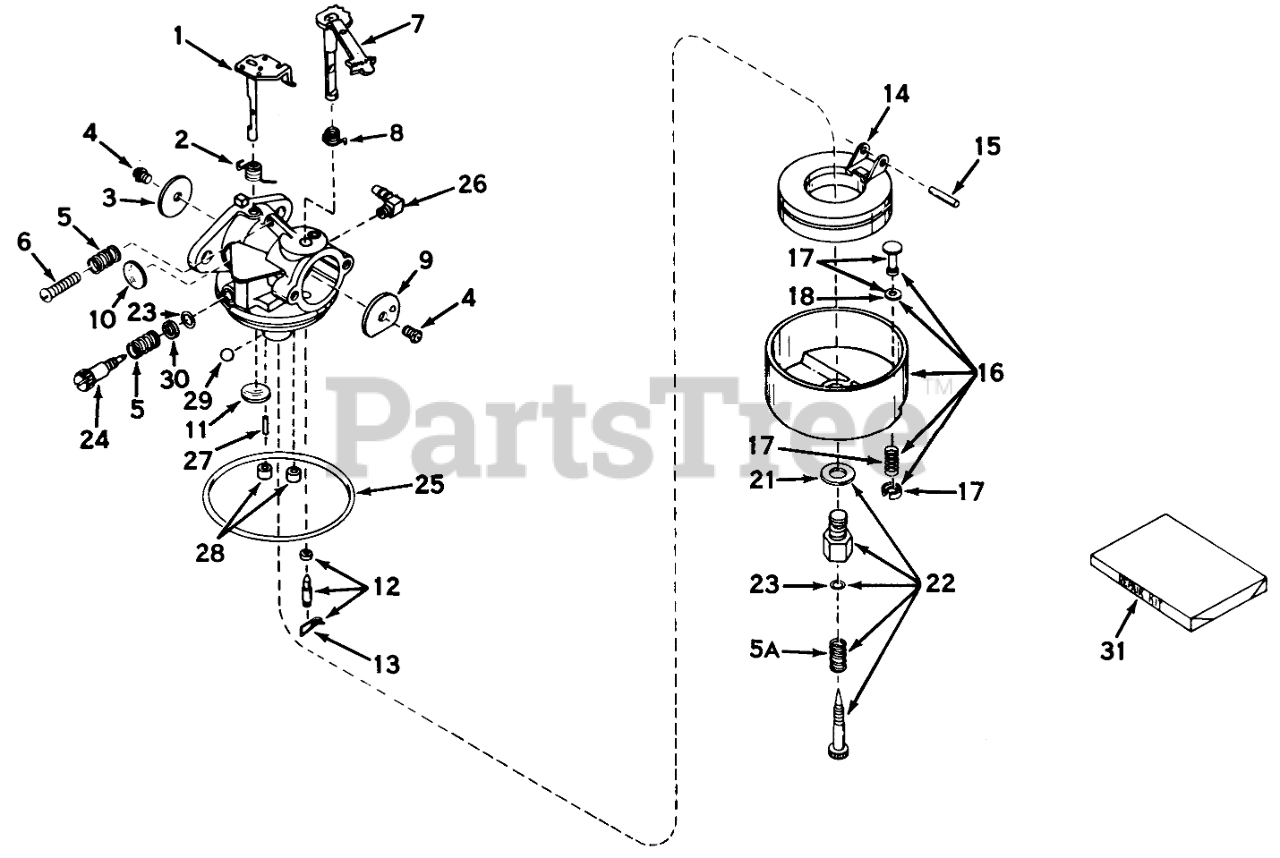

CARBURETOR NO. 630958B Parts Diagram

  • Title

1

Tecumseh 630983

Shaft & Lever Assy.
(Superseded to 631615)

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631279

Spring, Throtte Return
(Superseded to 631767)

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 5

0

5A

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 8

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 31841

Shaft & Lever Ass-y Choke
(Superseded to 31841A)

$9.49

$

Usually ships in 3-12 days

0

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

12

Tecumseh 631021

Inlet needle, Seat & Clip Assy. (Incl. Ref. #13)
(Superseded to 631021B)

Note: Included in Repair Kit part no. 31840

$6.99

$

In Stock, Qty 20+

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 631023

Float,Carburetor
(Superseded to 632019A)

$7.49

$

In Stock, Qty 7

0

15

Tecumseh 631024

Shaft-Float

Note: Included in Repair Kit part no. 31840

$1.99

$

In Stock, Qty 10

0

16

Tecumseh 631025

Bowl & Drain Assy., Float (Incl. Ref. #17)
(Superseded to 631951)

$17.99

$

In Stock, only 2 left!

0

17

Tecumseh 27136A

Bowl Assy., Bowl (Incl. Ref. #18)

$7.49

$

In Stock, only 1 left!

0

18

Tecumseh 27554

Gasket-Plunger, Drain

$1.49

$

In Stock, Qty 15

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

Note: Included in Repair Kit part no. 31840

$2.49

$

In Stock, only 2 left!

0

22

Tecumseh 31839

Adjustment Screw Assy., Main (Incl. Ref. #5A, 21 & 23)

Note: Included in Repair Kit part no. 31840

$15.99

$

In Stock, only 1 left!

0

23

Tecumseh 630740

"O"Ring

$2.49

$

Usually ships in 3-12 days

0

24

Tecumseh 631078

Screw, Idle Adj.
(Superseded to 631838)

Note: Included in Repair Kit part no. 31840

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in Repair Kit part no. 31840

$2.49

$

In Stock, Qty 17

0

26

Tecumseh 631038

Fitting Fuel Inlet
(Superseded to 632527)

$8.49

$

In Stock, only 1 left!

0

27

Tecumseh 631039

Pin

$

$

Currently unavailable

28

Tecumseh 630747

Plug, Cup

$

$

Currently unavailable

29

Tecumseh 631081

BalI, Steel

$

$

Currently unavailable

30

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 6

0

31

Tecumseh 31840

Kit-Repair

$20.99

$

In Stock, Qty 6

0
