313-980I095 - MTD Snow Thrower (1993) (Cenex) Complete Gear Housing And Spiral Assembly Parts Diagram

Snow Thrower

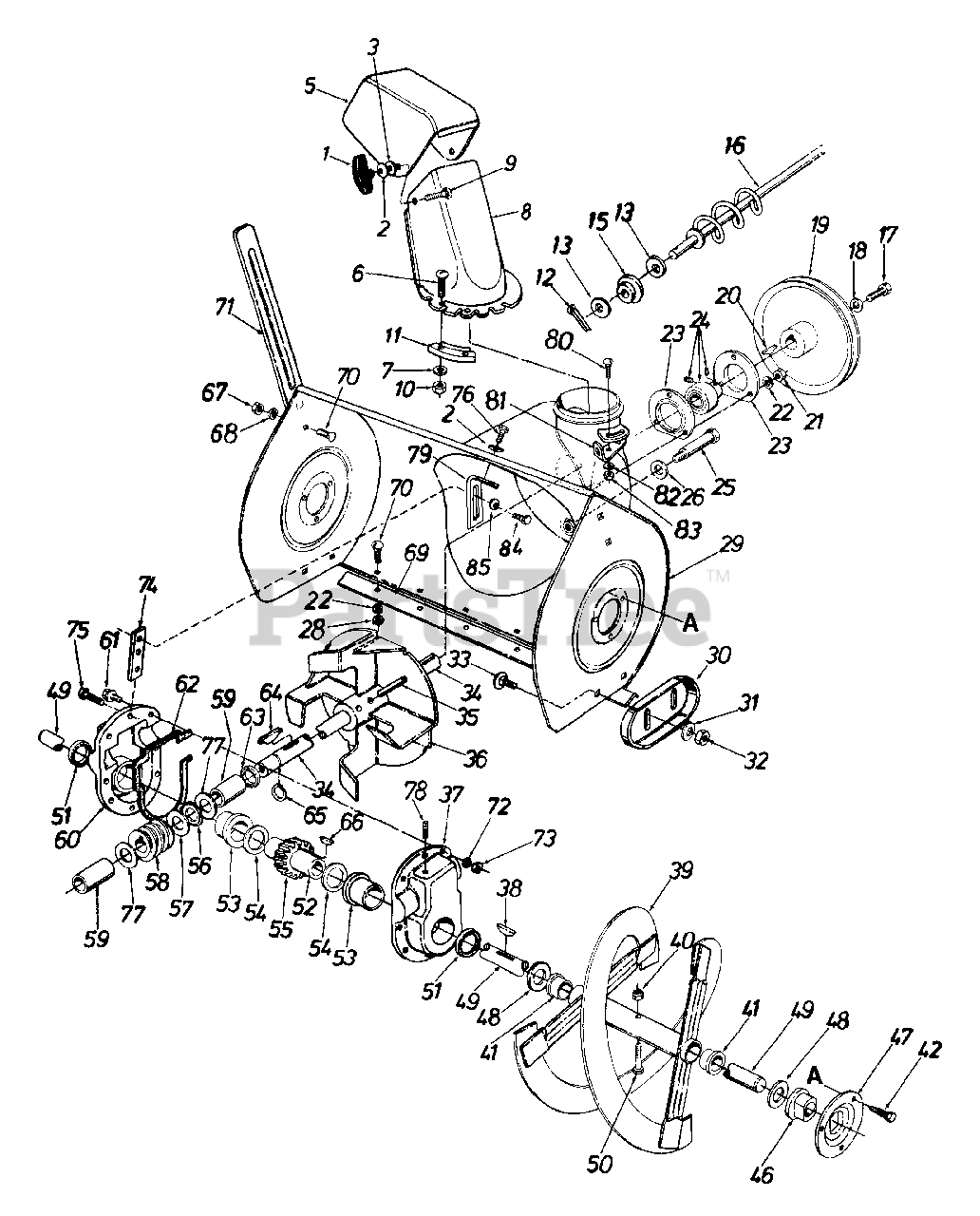

Complete Gear Housing And Spiral Assembly Parts Diagram

  • Title

1

MTD 09966

Hand Knob Ass'y,
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0242

Bell-Wash..345 I.D. x.88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0231

Fl. Wash..312 I.D. x 1.125 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

5

MTD 731-0846B

Top Chute
(Superseded to 731-0846C)

$52.99

$

In Stock, only 4 left!

0

6

MTD 710-0255

Truss Mach. Scr. 1/4-20 x. 75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0142

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

8

MTD 731-0840B

Chute
(Superseded to 931-0840B)

$84.99

$

Usually ships in 3-6 days

0

9

MTD 710-0276

Carr. Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

MTD 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

13

MTD 736-0140

Fl-Wash..385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

15

MTD 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

16

MTD 05980

Chute Crank Ass'y.

$

$

Not available

17

MTD 710-0371

Hex L-Scr. 5/16-18 x .88" Lg.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

18

MTD 736-0242

Bell-Wash..345 I.D. x.88

$4.49

$

In Stock, Qty 20+

0

19

MTD 756-0243

V-Pulley .875 I.D. x 10.12

$94.99

$

Usually ships in 3-6 days

0

20

MTD 714-0126

09 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 13

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 05244

Bearing Hsg. - Self Aligning Brg.
(Superseded to 05244B)

$23.99

$

In Stock, only 2 left!

0

24

MTD 741-0185

Self Aligning Brg..875 I.D.
(Superseded to 941-0185)

$66.99

$

In Stock, only 1 left!

0

25

MTD 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

26

MTD 736-0105

Bell-Wash..4001.0. x.88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 784-5011

Blower Hsg. Ass'y.

$

$

Not available

30

MTD 784-5038A

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

31

MTD 736-0105

Bell-Wash..400 I D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

33

MTD 710-0790

Carr. Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

34

MTD 738-0276

Blower Axle

$102.99

$

Usually ships in 3-6 days

0

35

MTD 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

36

MTD 05812

Blower Fan Ass'y.

Variations

MTD 05812-0637

No Longer Available FAN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 717-0297

Complete Gear Hsg. Half-L.H.
(Superseded to 753-0889)

Note: (Incl.Bearing)

$

$

Not available

38

MTD 714-0135

#91 Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

39

MTD 05461

Spiral Ass'y.- L.H.

$

$

Not available

MTD 05462

Spiral Ass'y.- R.H.

$

$

Not available

40

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

41

MTD 741-0494

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

42

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

46

MTD 741-0192

Flange Brg. w/Flats 1.0" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

47

MTD 05845

Bearing Hsg.-Spiral Hsg.
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 2 left!

0

48

MTD 736-0250

Fl-Wash. 1.06 I.D. x 1.75" O.D x .100

$4.49

$

In Stock, Qty 20+

0

49

MTD 738-0491

Spiral Axle

$

$

Not available

50

MTD 710-0891

Hex Bolt 5/16-18 x 1.75" Lg.

$7.49

$

In Stock, Qty 16

0

51

MTD 721-0146

Oil Seal 1.50" I. D
(Superseded to 921-0146)

$12.99

$

In Stock, only 1 left!

0

52

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

MTD 741-0182

Flange Brg 1.503 I.D.

$

$

Not available

54

MTD 736-0266

Fl-Wash..88 I.D. x 1.40 O.D.
(Superseded to 936-0266)

$

$

Not available

55

MTD 717-0300

Double Threaded Worm Gear
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

56

MTD 741-0184

Thrust Brg..88 I.D. x 1.44 O.D. x .078

$16.99

$

Usually ships in 3-6 days

0

57

MTD 736-0291

Fl-Wash..88 I.D. x 1.40 O.D.

$11.99

$

Usually ships in 3-6 days

0

58

MTD 717-0299

Double Threaded Worm - L.H.
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

59

MTD 741-0217

Sleeve Brg. 875" I.D.
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 9

0

60

MTD 717-0298

Complete Gear Hsg. Half- R.H.
(Superseded to 753-0889)

Note: (Incl. Ref. Nos. 51 & 53)

$

$

Not available

61

MTD 710-0376

Hex Bolt 5/16-18 x 1.0 Lg.

$3.99

$

In Stock, Qty 20+

0

62

MTD 721-0144

Gasket
(Superseded to 921-0144)

$11.99

$

In Stock, only 1 left!

0

63

MTD 721-0145

Oil Seal .875" I.D.
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

64

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 13

0

65

MTD 716-0111

Snap Ring-.875 I.D.

$6.99

$

In Stock, only 4 left!

0

66

MTD 714-0135

091 Woodruff Key 1/4 x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

67

MTD 712-0267

Hex Nut 5/16" I.D.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

68

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

69

MTD 05378

Shave Plate - 33"
(Superseded to 05378-0637)

Variations

MTD 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

70

MTD 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

71

MTD 05139A

Drift Cutter
(Superseded to 790-00181-0637)

Note: Optional Parts

Variations

MTD 05139A-0498

BLADE-GUIDE (DRIFT - OLD CUB YELLOW (0498)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0665

BLADE-GUIDE (DRIFT - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0674

BLADE-GUIDE (DRIFT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0716

BLADE-GUIDE (DRIFT - CUB YELLOW-99 (0716)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

72

MTD 736-0271

Wave Wash 5/16" I.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

73

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

74

MTD 784-5075

Gear Hsg. Support Plate

$

$

Not available

75

MTD 710-0528

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

76

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x 75" Lg.

$4.49

$

In Stock, Qty 20+

0

77

MTD 736-0291

Fl-Wash 88 I.D. x 1.40 O.D.

$11.99

$

Usually ships in 3-6 days

0

78

MTD 737-0175

Filler Plug

$6.99

$

In Stock, only 4 left!

0

79

MTD 784-5076

Gear Hsg. Support Brkt.
(Superseded to 784-5076-0637)

Variations

MTD 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

80

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 784-5123

Chute Crank Bracket
(Superseded to 784-5123-0637)

Variations

MTD 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

82

MTD 736-0242

Bell-Wash..345 I.D. x 88"

$4.49

$

In Stock, Qty 20+

0

83

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

84

MTD 710-0412

Hex Bolt 1/4-28" I.D. x .75" Lg.

$5.99

$

In Stock, Qty 9

0

85

MTD 736-0270

Bell-Wash..28" I.D. x.75" O.D.

$3.99

$

In Stock, Qty 20+

0

MTD 717-0296

Gear Box Assembly Comp.

$

$

Not available
