313-612E205 - MTD Snow Thrower (1993) (Mid States Distributor) Handle Assembly Parts Diagram

Snow Thrower

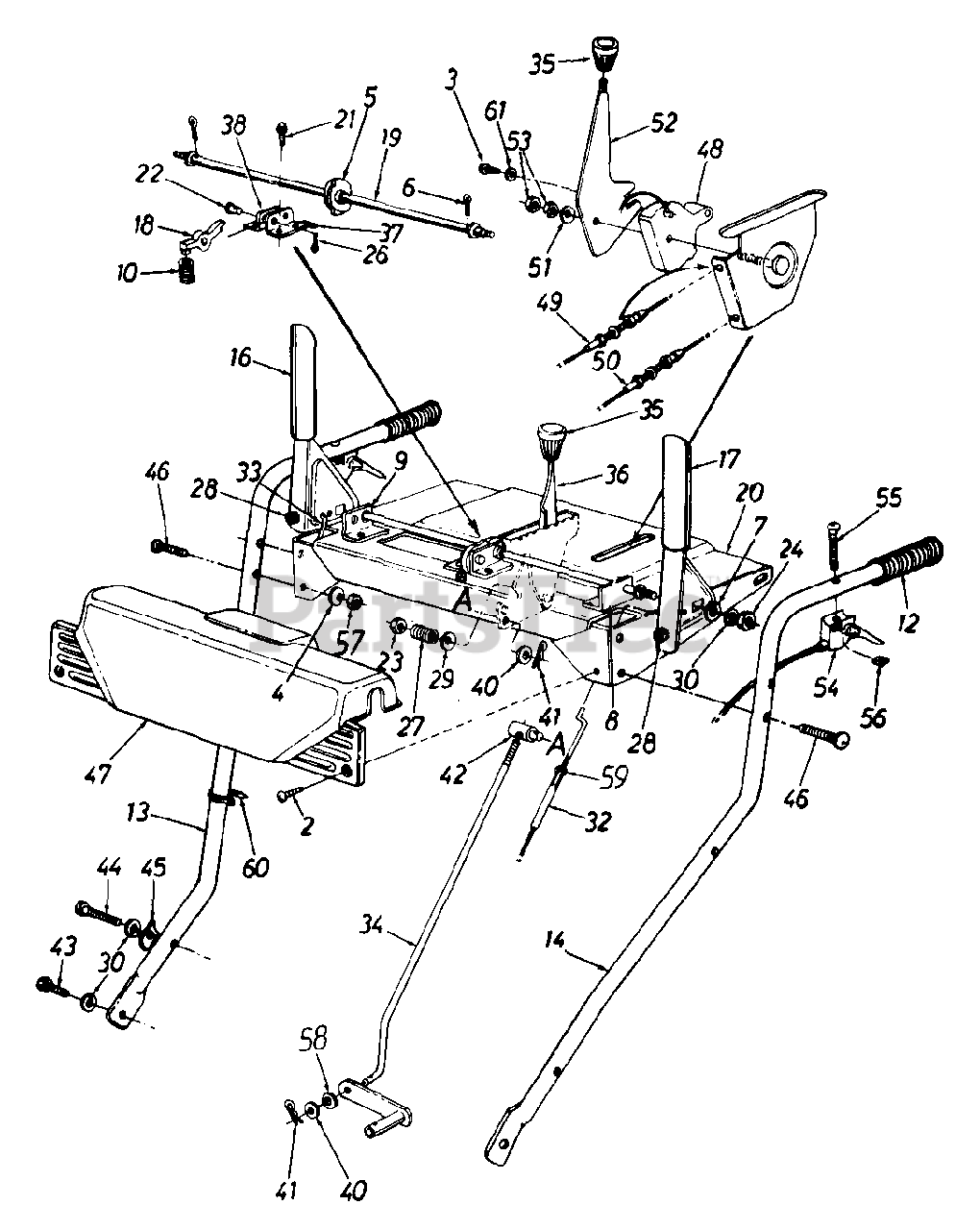

Handle Assembly Parts Diagram

  • Title

2

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5

$4.49

$

In Stock, only 2 left!

0

3

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0242

Bell-Wash. .325" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

5

MTD 748-0362

Cam Handle Lock

Note: New Part

$7.99

$

Usually ships in 3-6 days

0

6

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

7

MTD 736-0509

Washer .72" O.D.

Note: (Special); New Part

$6.99

$

In Stock, only 1 left!

0

8

MTD 784-5681

Handle Support Brkt.- L.H.

Note: New Part

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

9

MTD 784-5682

Handle Support Brkt.- R.H.
(Superseded to 784-5682-0637)

Note: New Part

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

10

MTD 732-0437

Compression Spring

$10.99

$

In Stock, only 1 left!

0

12

MTD 720-0274

Grip

$11.99

$

In Stock, only 1 left!

0

13

MTD 749-0910

Handle - R.H.
(Superseded to 749-0910C-0637)

$

$

Not available

14

MTD 749-0911

Handle - L.H.

$

$

Not available

16

MTD 684-0036

Engagement Handle - R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

17

MTD 684-0037

Engagement Handle - L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

18

MTD 748-0363

Pawl Handle Lock
(Superseded to 948-0363)

Note: New Part

$16.99

$

Usually ships in 3-6 days

0

19

MTD 747-0877

Rod Cam

Note: New Part

$22.99

$

Usually ships in 3-6 days

0

20

MTD 684-0032A

Handle Panel Support

Note: New Part

Variations

MTD 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 711-0946

Clevis Pin .437" Dia. x .65" Lg.

$

$

Not available

23

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

?25

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

26

MTD 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

27

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

28

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

29

MTD 736-0105

Bell-Wash..38" I.0. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?31

MTD 736-0175

Spring Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

32

MTD 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

33

MTD 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

34

MTD 747-0798

Shift Rod
(Superseded to 747-0798A)

$38.99

$

Usually ships in 3-6 days

0

35

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

36

MTD 784-0297

Shift Handle

$

$

Not available

37

MTD 784-5679

Handle Brkt.- L.H.
(Superseded to 784-5679-0637)

Note: New Part

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

38

MTD 784-5680

Handle Support Brkt.- R.H.
(Superseded to 784-5680-0637)

Note: New Part

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

40

MTD 736-0264

Fl-Wash..344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

41

MTD 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

42

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

43

MTD 710-0538

Hex Bolt 5/16-18 x .62" Lg.

Note: (Special)

$4.49

$

In Stock, Qty 9

0

44

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg. (Gr. 5)

$5.49

$

In Stock, Qty 15

0

45

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-1250

Curved Carr. Bolt 5/16-18 x 1.5" Lg.

$4.99

$

In Stock, Qty 5

0

47

MTD 731-1315A

Handle Panel
(Superseded to 731-1391)

Note: New Part

$43.99

$

Usually ships in 3-6 days

0

48

MTD 731-1313

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

49

MTD 746-0896

Chute Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

50

MTD 746-0901

Chute Control Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

51

MTD 736-0425

Bell-Wash. .325" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 13

0

52

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

53

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

54

MTD 746-0900

Track Steer Cable w/Trigger
(Superseded to 753-0707)

$74.99

$

In Stock, Qty 5

0

55

MTD 710-1233

Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg.

$4.99

$

In Stock, Qty 11

0

56

MTD 712-0127

Flat Weld Nut #10-24 Thd.

$3.49

$

In Stock, Qty 13

0

57

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0271

Spr. Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

MTD 712-0121

Hex Nut #10-24 Thd.

Note: (Incl. w/Ref. 32 & 33)

$4.49

$

In Stock, Qty 20+

0

60

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

61

MTD 736-0506

Washer 1.25" O.D.
(Superseded to 736-0506A)

Note: (Special)

$

$

Not available
