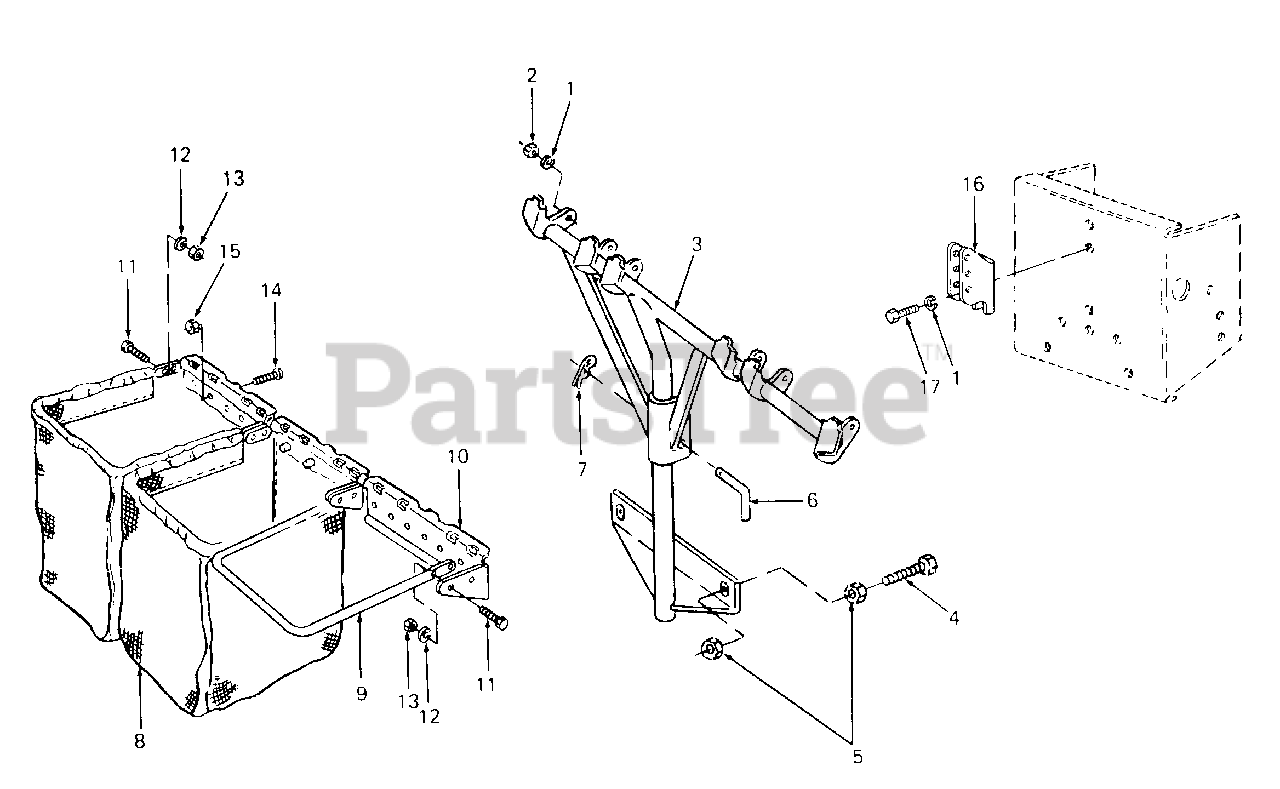

313 (190-313-100) - Cub Cadet 38" & 42" Triple Rear Bagger att Rear Bagger II Parts Diagram

38" & 42" Triple Rear Bagger

Rear Bagger II Parts Diagram

  • Title

1

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 6

0

3

Cub Cadet 703-1739

Tube Assy, Catcher Support
(Superseded to 703-1739-0637)

Variations

Cub Cadet 703-1739-0637

Support Tube Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 X 1.25 Lg
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

6

Cub Cadet 711-3285

Pin, Right Angle Clevis

$34.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 714-0117

Pin, Internal Cotter, 5/8 Dia

$4.49

$

In Stock, Qty 16

0

8

Cub Cadet 764-0251

Bag, Grass Catcher
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0

9

Cub Cadet 749-0745

Frame, Catcher Bag
(Superseded to 749-0745A-0637)

$

$

Not available

10

Cub Cadet 17201

Bracket, Bag Frame Hanger
(Superseded to 17201A-0637)

Variations

Cub Cadet 17201-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 X .75 Lg

$5.99

$

In Stock, Qty 9

0

12

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

13

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0192

Screw, Truss Mach, #10-24 X .38 Lg

$3.99

$

In Stock, Qty 12

0

15

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 13026

Bracket, Hitch
(Superseded to 13026-0637)

Variations

Cub Cadet 13026-0637

Hitch Bracket - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3001

Screw,Hex Cap.3/8-16 X .88 Lg GR5

$7.49

$

In Stock, Qty 9

0
