313-180-032 - MTD Snow Thrower (1993) (Pro Hardware) General Assembly Parts Diagram

Snow Thrower

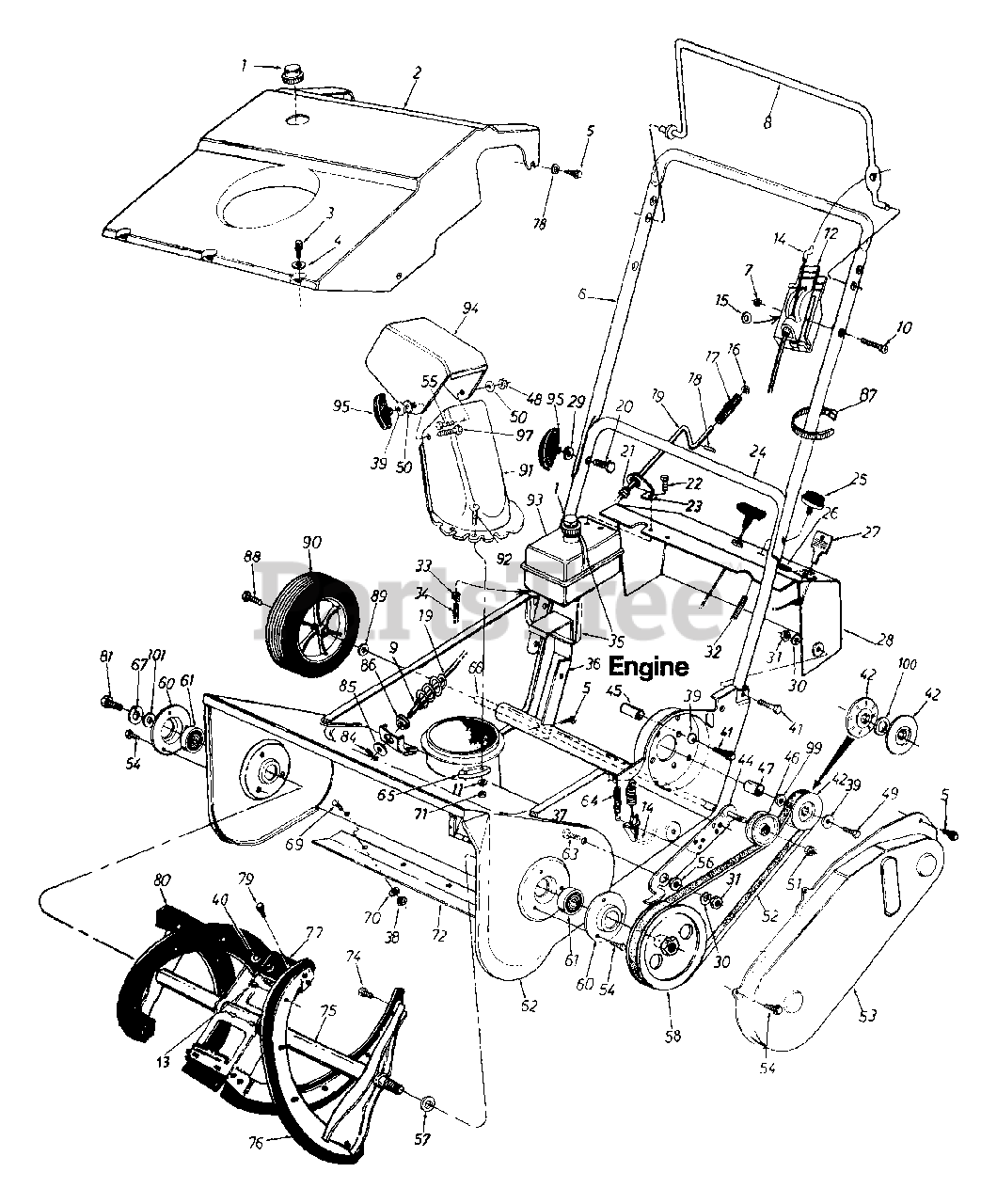

General Assembly Parts Diagram

  • Title

1

MTD 751-0353

Gas Tank Cap
(Superseded to TC-410240)

$9.49

$

Usually ships in 3-12 days

0

2

MTD 731-0702

21" Shroud

$

$

Not available

3

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

4

MTD 736-0370

Spr.-Wash. .206" I.D. x .448"

$

$

Not available

5

MTD 710-0892

Hex L-Wash. Hd. AB-Tap 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

6

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

8

MTD 747-0824

Control Handle Ass'y.- L.H.
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

9

MTD 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

10

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

11

MTD 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

12

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

13

MTD 728-0180

Pop Rivet .187" Dia.
(Superseded to 928-0180)

$

$

Not available

14

MTD 746-0910

Clutch Cable 35" Lg.
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 16

0

15

UNKNOWN

$

$

Not available

16

MTD 726-0100

Push Cap 3/8" Rod

$4.49

$

In Stock, only 1 left!

0

17

MTD 720-0201A

Knob - 3/8" Dia. Hole

$10.99

$

In Stock, Qty 5

0

18

MTD 715-0138

Roll Pin 1/8" Dia. x .63" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

19

MTD 784-5344

Chute Crank Ass'y.

$

$

Not available

20

MTD 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

21

MTD 735-0218A

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0895

Hex AB-Tap Scr. 1/4 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

23

MTD 784-5178

Upper Chute Crank Brkt.
(Superseded to 784-5178A)

$

$

Not available

24

MTD 749-0796

Lower Handle

Variations

MTD 749-0796-0637

No Longer Available HANDLE-LWR - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 751-0354

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

26

MTD 731-0732

Plastic Plug

$

$

Not available

27

MTD 725-0954

Plastic Key (Tech. Eng.)
(Superseded to TC-35062)

$3.99

$

In Stock, only 2 left!

0

28

MTD 784-5168B

Dash Panel Ass'y.

Variations

MTD 784-5168B-0638

Dash Panel Ass'y. - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

MTD 736-0451

Saddle Wash. .320" I.D. x .937" O.D.

$4.49

$

In Stock, Qty 11

0

30

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD 723-0354

Primer Hose - 11" Lg.
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 9

0

33

MTD 726-0205

Hose Clamp - 1/2" Dia.

$3.99

$

In Stock, Qty 18

0

34

MTD 751-0535-15

Gas Line - 15" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

35

MTD 726-0225

Cable Tie - 17.75" Lg.

$

$

Not available

36

MTD 784-5177

Engine Support Brkt.

Variations

MTD 784-5177-0637

No Longer Available BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

37

UNKNOWN

$

$

Not available

38

MTD 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

39

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-1017

Torx AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

41

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

MTD 756-0416A

3/8" "V"-Pulley Half .625" I.D. x 6.0" O.D.
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

44

MTD 784-5180B

Idler Brake Brkt. Ass'y.
(Superseded to 753-05156)

Variations

MTD 784-5180B-0637

KIT:IDLER SINGLE S - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 750-0589

Spacer .325" I.D. x .625" O.D. x .875"
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

46

MTD 756-0313

Fl-Idler w/Flanges 2.12" O.D.

$26.99

$

In Stock, Qty 6

0

47

MTD 748-0201

Spacer .635" I.D. x .89" O.D. x .57"
(Superseded to 948-0201)

$

$

Not available

48

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

49

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

50

MTD 736-0231

Fl-Wash. .344" I.D. x 1.25"

$4.99

$

In Stock, Qty 20+

0

51

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

52

MTD 754-0367

"V"-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

53

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

54

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

55

MTD 710-0451

Carriage Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

56

MTD 748-0234

Shld. Spacer .50" Dia. x .27"

$4.49

$

In Stock, Qty 20+

0

57

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

58

MTD 756-0550

3/8" "V"-Pulley 1/2-20 L.H. x 6"

$

$

Not available

60

MTD 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

MTD 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 741-0600

Ball Brg.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

62

MTD 784-5325D

21" Blower Hsg. Ass'y

Variations

MTD 784-5325D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5325D-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5325D-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5325D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5325D-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

$

$

63

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

64

MTD 732-0357

Extension Spring 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

65

MTD 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

66

MTD 711-0848

Wheel Axle 1/2" O.D. x 20.6" Lg.

$

$

Not available

67

MTD 736-0329

L-Wash. 1/4" I.D."
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

69

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

71

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

72

MTD 731-1033

Shave Plate

$47.99

$

In Stock, Qty 14

0

74

MTD 710-0896

Hex Wash B-Tap Scr. 1/4 x .62"

Note: (Spec.)

$4.49

$

In Stock, Qty 20+

0

75

MTD 784-5485

Auger Ass'y. 21"
(Superseded to 984-04027A)

Variations

MTD 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

MTD 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

MTD 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

76

MTD 731-0781A

Rubber Spiral - L.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

77

MTD 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 10

0

78

UNKNOWN

$

$

Not available

79

MTD 710-1003

Hex Wash. B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

80

MTD 731-0780A

Rubber Spiral - R.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

81

MTD 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

84

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

85

MTD 736-0133

Fl-Wash. .406" I.D. x 1.25"

$5.49

$

In Stock, Qty 7

0

86

MTD 741-0403

Hex Bushing .385" I.D.

$

$

Not available

87

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

88

MTD 710-0773

Hex Tap Scr. 3/8-24 x .5" Lg.

$7.49

$

In Stock, only 3 left!

0

89

MTD 736-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

90

MTD 734-1176

Wheel & Tire Ass'y. 7" x 1.5"

$

$

Not available

91

MTD 731-0915A

Lower Chute
(Superseded to 731-0915C)

$

$

Not available

92

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

93

MTD 751-0352

Fuel Tank - One Qt.
(Superseded to TC-32660A)

$

$

Not available

94

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

95

MTD 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

97

MTD 710-0276

Carriage Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 11

0

99

MTD 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$4.49

$

In Stock, Qty 14

0

100

MTD 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

101

MTD 736-0176

Fl-Wash. .25" I.D. x .93"

$4.99

$

In Stock, only 4 left!

0

MTD 390-697

3 HP 110V Electric Start

Note: (Optional Equipment)

$

$

Currently unavailable
