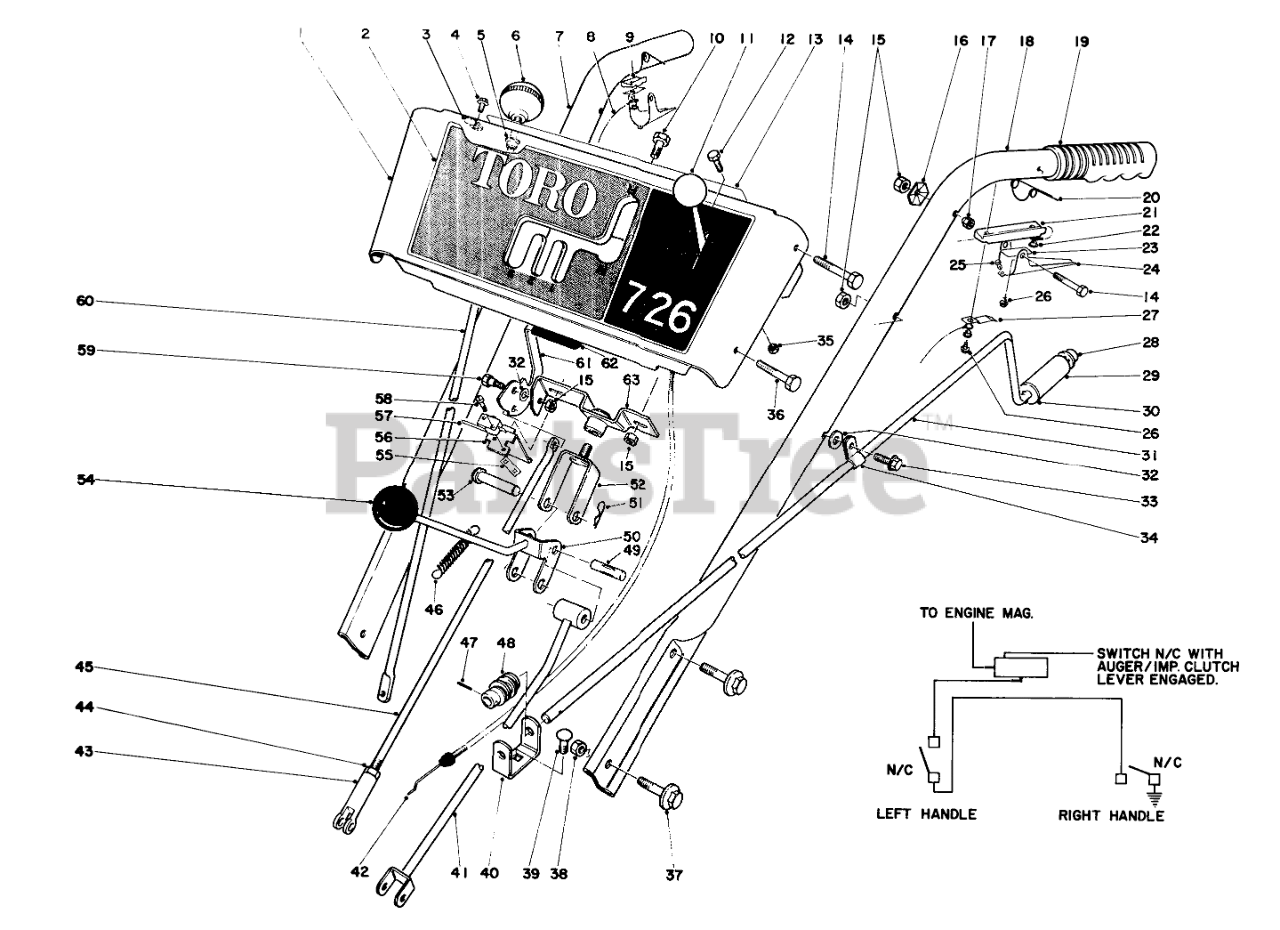

31263 (726) - Toro Snow Thrower (SN: 004000001 - 004999999) (1974) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 5-9939

Escutcheon Plate (Incl. Ref. 2 & 13)
(Superseded to 40-8470)

$

$

Not available

2

Toro 17-6650

Decal-Escutcheon

$

$

Currently unavailable

3

Toro 20-2810

PLASTIC CLIP

$

$

Not available

4

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 256-240

NYLINER #6LI-FF TYPE 7

$8.49

$

Usually ships in 3-6 days

0

6

Toro 233-10

KNOB-LEVER

$61.99

$

Usually ships in 3-6 days

0

7

Toro 20-1040

Handle Right

$

$

Currently unavailable

8

Toro 20-2120

WIRE HARNESS

$

$

Not available

9

Toro 17-5680

Insulator

$

$

Not available

10

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

12

$0.99

$

In Stock, Qty 10

0

13

Toro 11-8390

Decal

$

$

Not available

14

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

16

Toro 3290-257

Washer

$

$

Not available

17

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

18

Toro 20-1030

Handle Left
(Superseded to 59-0730)

$

$

Not available

19

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

20

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

21

Toro 20-2110

Insulator

$

$

Not available

22

Toro 17-5700

WASHER INSULATOR

$9.49

$

Usually ships in 3-6 days

0

23

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

24

Toro 17-5710

Safety Lever

$

$

Not available

25

Toro 3290-358

1/4 PLASTIC RIVET

$

$

Not available

26

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 7

0

27

Toro 17-6510

CONTACT BRACKET

$9.49

$

Usually ships in 3-6 days

0

28

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

29

Toro 20-2060

CHUTE CONTROL GRIP

$

$

Not available

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

34

Toro 2412-10

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

35

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

36

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

37

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

38

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

39

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

40

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

41

Toro 11-8100

Trunnion

$

$

Not available

42

Toro 8-7790

Throttle Contrl

$

$

Not available

43

Toro 5-0865

Clevis
(Superseded to 39-4640)

$59.99

$

Usually ships in 3-6 days

0

44

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

45

Toro 20-2310

DRAG LINK

$

$

Not available

46

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

47

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

48

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

49

Toro 3284-2

3/8 X 1-1/4 ROL

$

$

Not available

50

Toro 20-3050

Rod Shift
(Superseded to 26-9370)

$186.99

$

Usually ships in 3-6 days

0

51

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

52

Toro 8-7910

Pivot Bracket
(Superseded to 29-6490)

$

$

Not available

53

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

54

$13.99

$

In Stock, only 1 left!

0

55

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

56

Toro 20-2100

Switch Bracket

$

$

Currently unavailable

57

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

58

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

59

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

60

Toro 20-2330

Wheel Clutch Rod

$

$

Not available

61

Toro 17-6620

Auger Clutch Handle

$

$

Not available

62

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

63

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available
