31263 (526) - Toro Snow Thrower (SN: 003000001 - 003999999) (1973) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

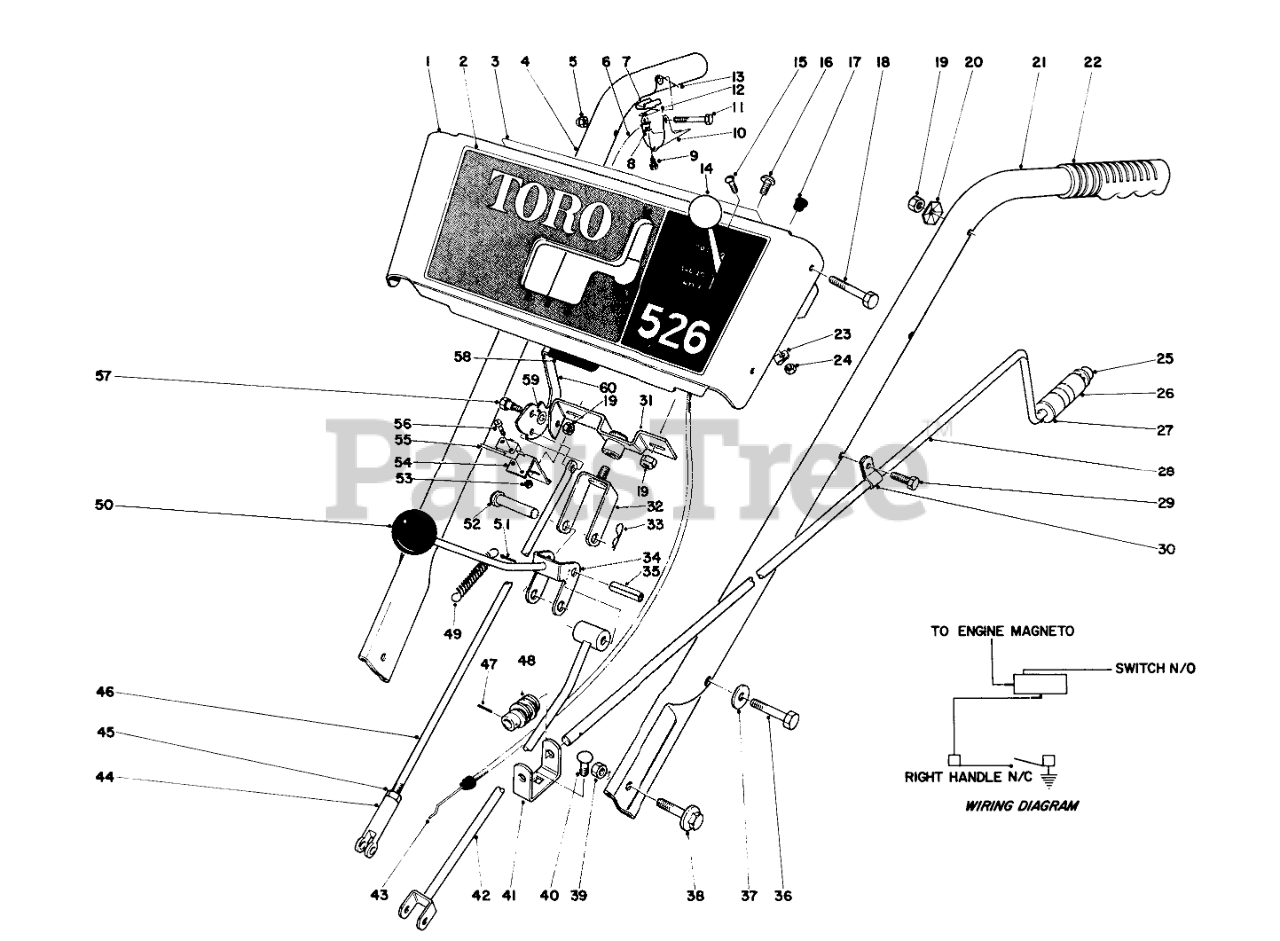

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-8309

Escutcheon Plate (Incl. Ref. #2 and 3)

$

$

Currently unavailable

2

Toro 17-6640

Decal-Escutcheon

$

$

Currently unavailable

3

Toro 11-8380

Decal

$

$

Currently unavailable

4

Toro 17-6760

Handle Right

$

$

Currently unavailable

5

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

6

Toro 17-7920

Wire Harness

$

$

Currently unavailable

7

Toro 17-5680

Insulator

$

$

Not available

8

Toro 17-5700

WASHER INSULATOR

$9.49

$

Usually ships in 3-6 days

0

9

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 7

0

10

Toro 17-5710

Safety Lever

$

$

Not available

11

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

13

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

14

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

15

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

16

Toro 3258-157

Screw, Machine

$

$

Not available

17

Toro 2410-22

Plug

$

$

Currently unavailable

18

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

20

Toro 3290-257

Washer

$

$

Not available

21

Toro 17-8740

Handle Left

$

$

Currently unavailable

22

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

23

Toro 2412-18

Clip
(Superseded to 2412-51)

$

$

Not available

24

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

25

Toro 3290-302

Speed Nut

$

$

Currently unavailable

26

Toro 6-0030

Chute Control Grip
(Superseded to 20-2060)

$

$

Not available

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

29

Toro 32140-82

Hex Hd. Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 6

0

30

Toro 2412-10

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

31

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

32

Toro 8-7910

Pivot Bracket
(Superseded to 29-6490)

$

$

Not available

33

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

34

Toro 11-9090

Rod Shift
(Superseded to 26-9370)

$186.99

$

Usually ships in 3-6 days

0

35

Toro 32121-42

PIN-ROLL

$2.99

$

In Stock, only 2 left!

0

36

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

38

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

39

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

40

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

41

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

42

Toro 11-8100

Trunnion

$

$

Not available

43

Toro 8-7800

Control-Throttle

$

$

Not available

44

Toro 5-0865

Clevis
(Superseded to 39-4640)

$59.99

$

Usually ships in 3-6 days

0

45

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

46

Toro 8-8030

Drag Link
(Superseded to 20-2310)

$

$

Not available

47

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

48

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

49

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

50

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

51

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

52

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

53

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

54

Toro 17-6630

Bracket Switch

$

$

Currently unavailable

55

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

56

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

57

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

58

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

59

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

60

Toro 17-6620

Auger Clutch Handle

$

$

Not available
