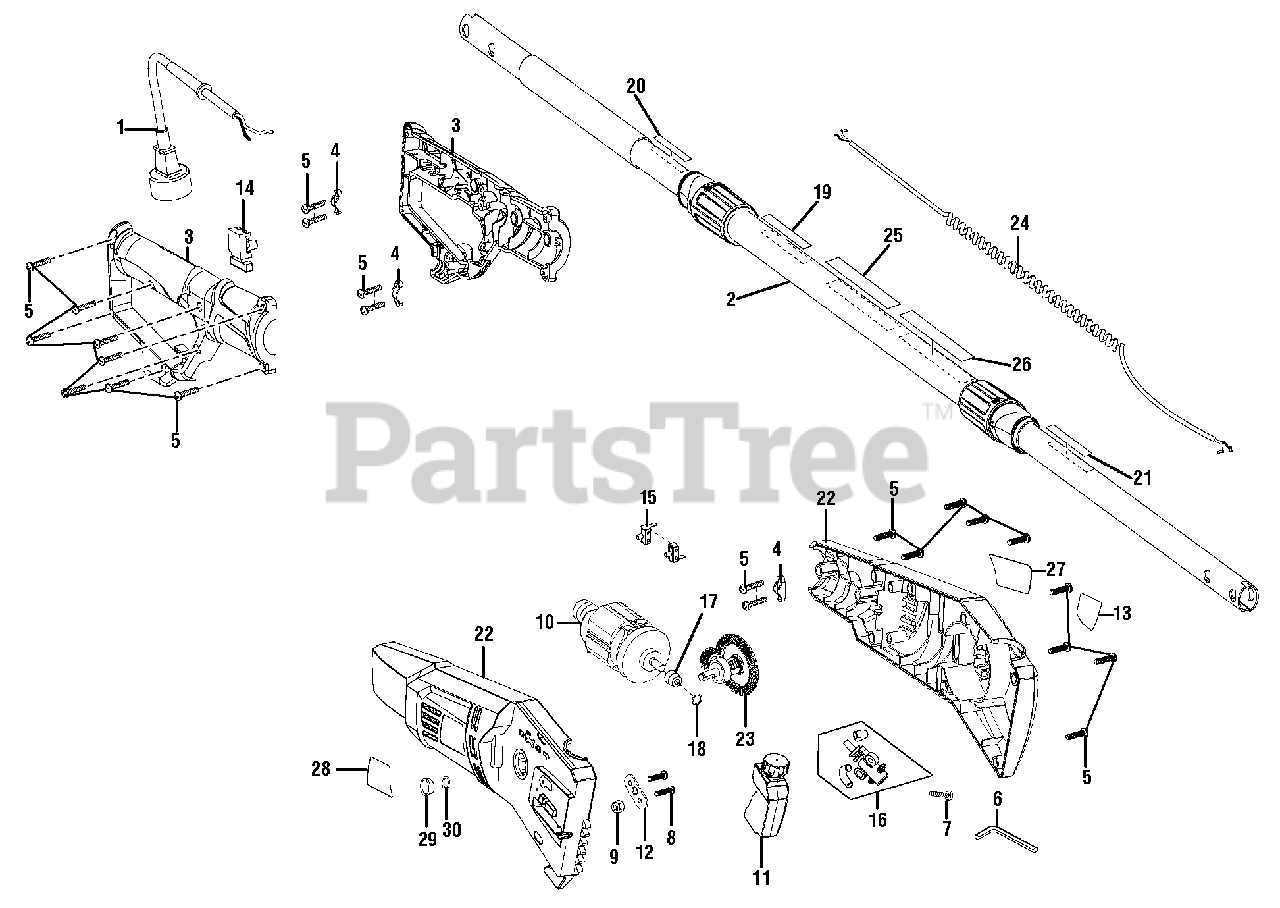

31254 EG - Homelite Expert Gardner Electric Pole Saw General Assembly (Part 2) Parts Diagram

Expert Gardner Electric Pole Saw

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 993663001

Power Cord

$

$

Currently unavailable

2

Homelite 993664001

Pole Assembly

Note: (Inc. Key Nos. 20-21 & 25-26)

$

$

Currently unavailable

3

Homelite 993665001

Handle Assembly

$

$

Currently unavailable

4

Homelite 993592001

Cord Clamp

$

$

Currently unavailable

5

Homelite 993674001

Screw (M4 x 12 mm)
(Superseded to 3220313G)

$0.99

$

In Stock, Qty 5

0

6

Homelite 993661001

Hex Key (M5)

$

$

Currently unavailable

7

Homelite 993622001

Screw (M4.2 x12 mm)

$

$

Currently unavailable

8

Homelite 993644001

Screw (M3 x 10 mm)

$

$

Currently unavailable

9

Homelite 993642001

Hex Nut (M6)

$

$

Currently unavailable

10

Homelite 993668001

Motor Assembly

$

$

Currently unavailable

11

Homelite 993669001

Oil Tank Assembly

$

$

Currently unavailable

12

Homelite 993643001

Pressure Plate

$

$

Currently unavailable

13

Homelite 941588061

Data Label (English)

$

$

Currently unavailable

14

Homelite 993593001

Main Switch

$

$

Currently unavailable

15

Homelite 993666001

Brush Assembly

$

$

Currently unavailable

16

Homelite 993667001

Oil Pump Assembly

$

$

Currently unavailable

17

Homelite 993616001

Pinion

$

$

Currently unavailable

18

Homelite 993617001

Retaining Ring

$

$

Currently unavailable

19

Homelite 940657051

Warning Icon Label

$

$

Not available

20

Homelite 941103012

Stop Label (Lower)

$

$

Currently unavailable

21

Homelite 941103013

Stop Label (upper)

$

$

Currently unavailable

22

Homelite 993670001

Housing Assembly

$

$

Currently unavailable

23

Homelite 993671001

Output Shaft Assembly

$

$

Currently unavailable

24

Homelite 993597001

Spring Cord Assembly

$

$

Currently unavailable

25

Homelite 941850009

Warning Label

$

$

Currently unavailable

26

Homelite 941107005

Warning Label (Spanish)

$

$

Currently unavailable

27

Homelite 940114465

Logo Label (Left)

$

$

Currently unavailable

28

Homelite 940114464

Logo Label (Right)

$

$

Currently unavailable

29

Homelite 993647001

Bushing

$

$

Currently unavailable

30

Homelite 993648001

Felt Ring

$

$

Currently unavailable

Homelite 993660001

Scabbard

Note: Not Shown

$

$

Currently unavailable

Homelite 990000777

Operator's Manual

Note: Not Shown

$

$

Not available
