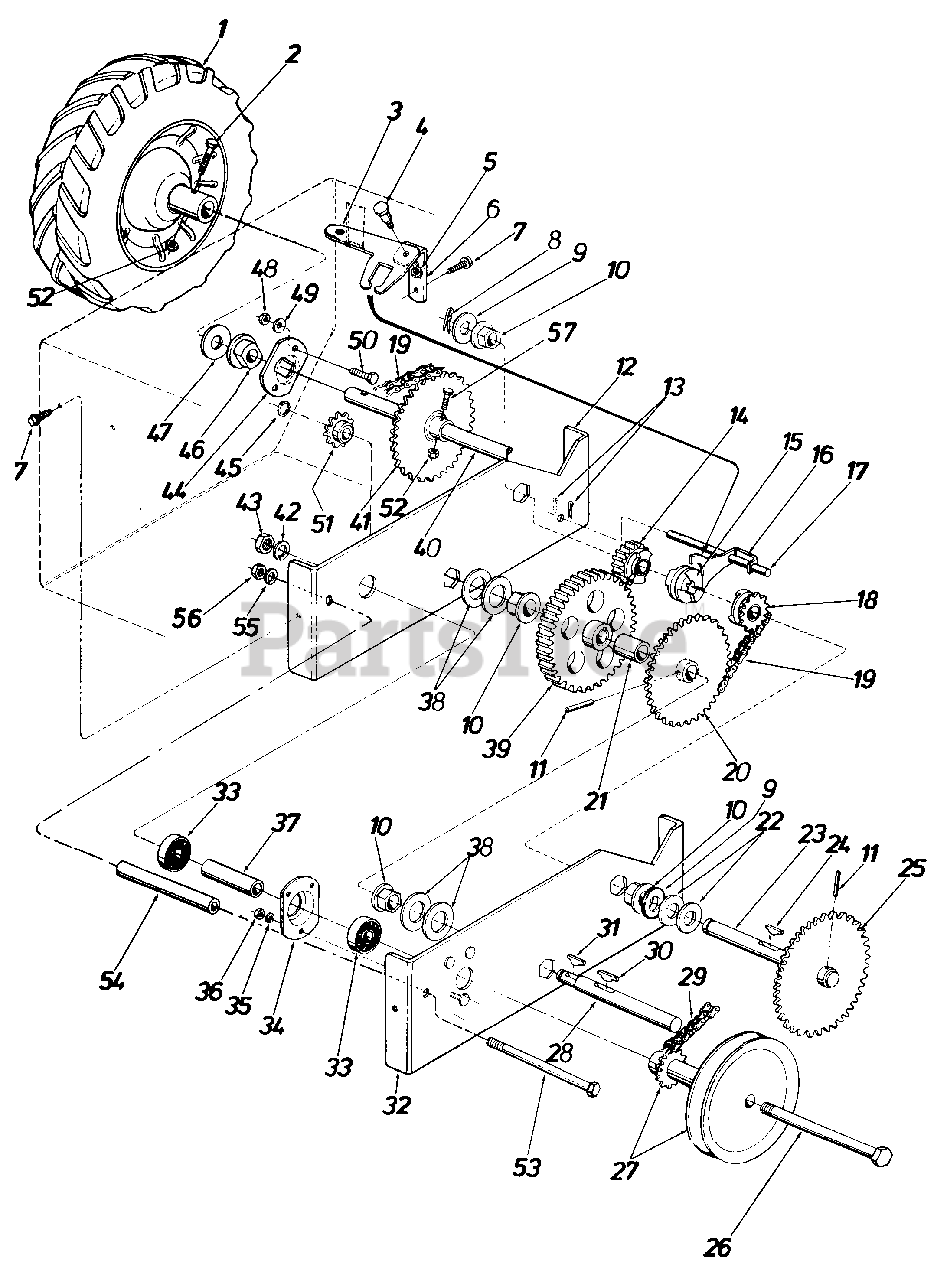

31250S - MTD Snow Thrower (1985) Snow Parts Diagram

Snow Thrower

Snow Parts Diagram

  • Title

1

MTD 734-0988

Wheel Ass'y. Comp. 12.5 x 3.5 R.H.

$

$

Currently unavailable

MTD 734-0987

Wheel Ass'y. Comp. 12.5 x 3.5 L.H.

Note: (Not Shown)

$

$

Currently unavailable

2

MTD 710-0624

Hex Bolt 5/16-24 x 1.50" Lg. H .T.

$5.99

$

Usually ships in 3-6 days

0

3

MTD 05962

Shifting Bracket

$

$

Currently unavailable

4

MTD 738-0140

Shld. Scr. .438" Dia. x .180 Lg.

$5.99

$

In Stock, Qty 15

0

5

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

6

MTD 05808

Shifting Bracket Support

$

$

Currently unavailable

7

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50

$3.49

$

Usually ships in 3-6 days

0

8

MTD 714-0111

Cotter Pin 3/32 Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 13

0

9

MTD 736-0187

Fl-Wash. .64 I.D. x 1.25 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

10

MTD 748-0229

Hex Flange Brg. .63 I.D.
(Superseded to 948-0229)

$

$

Not available

11

MTD 715-0114

H-Spring Pin Spiral 1/4" Dia. x 1.50 Lg.

$9.49

$

In Stock, Qty 20+

0

12

MTD 05792

Drive Housing Bracket R.H.

$

$

Currently unavailable

13

MTD 714-0104

Internal Cotter Pin 3/8 Dia.

$4.49

$

In Stock, Qty 20+

0

14

MTD 748-0163

Spur Gear 21 Teeth

$

$

Currently unavailable

15

MTD 748-0161

Clutch Collar

$

$

Currently unavailable

16

MTD 05054

Shifting Yoke

$

$

Currently unavailable

17

MTD 738-0315

Rod

$

$

Not available

18

MTD 748-0164

Sprocket 10 Teeth

$

$

Currently unavailable

19

MTD 713-0263

#41 Chain 1/2" Pitch x 33 Links

$

$

Not available

MTD 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

20

MTD 05093

28 Teeth Sprocket Hub Ass'y.

$

$

Currently unavailable

21

MTD 750-0229

Spacer .62 I.D. x .88 O.D. x 1.030
(Superseded to 950-0229)

$

$

Not available

22

MTD 736-0237

Fl-Wash. .64 I.D. x 1.25 O.D. x .100

$4.49

$

In Stock, Qty 20+

0

23

MTD 738-0459

Shifting Shaft

$

$

Not available

24

MTD 714-0137

Hi-Pro Key 3/16 x 3/4" Dia. x 1 .062

$

$

Not available

25

MTD 05137

32 Teeth Sprocket Hub Ass'y.

$

$

Currently unavailable

26

MTD 710-0506

Hex Scr. 1/2-20 x 5.50" Lg.

$10.99

$

In Stock, only 2 left!

0

27

MTD 756-0325

5.25" O.D. Pulley with 9 Teeth Sprocket

$

$

Currently unavailable

28

MTD 738-0564

Shaft

$

$

Currently unavailable

29

MTD 713-0265

#41 Chain 1/2 Pitch x 47 Links

$

$

Not available

MTD 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

30

MTD 714-0126

Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 16

0

31

MTD 714-0129

Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

32

MTD 05789

Drive Housing Bracket Ass'y. L.H.

$

$

Currently unavailable

33

MTD 741-0133

Ball Bearing .500 I.D. x 1.38 O.D. x .438

$35.99

$

Usually ships in 3-6 days

0

34

MTD 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

35

MTD 736-0329

L-Wash. 1/4 Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

MTD 750-0295

Spacer .52 I.D. x .62 O.D. x 2.69

$

$

Not available

38

MTD 736-0250

Fl-Wash. 1.06 I.D. x 1.75 O.D. x .100

$4.49

$

In Stock, Qty 20+

0

39

MTD 748-0162

Spur Gear 62 Teeth

$

$

Currently unavailable

40

MTD 738-0460

Wheel Axle

$

$

Not available

41

MTD 713-0261

32 Teeth Sprocket Hub Ass'y.

$

$

Currently unavailable

42

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

43

MTD 712-0200

Hex Ins. Jam L-Nut l/z-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

44

MTD 10470

Bearing Plate

$

$

Not available

45

MTD 716-0145

External C-Ring
(Superseded to 716-0397)

$

$

Not available

46

MTD 741-0199

Flange Bearing w/Flats .753 I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

47

MTD 736-0287

Fl-Wash. .81 I.D. x 1.25 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

48

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

50

MTD 710-0451

Carriage Bolt 5/16-18 x .75n Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 713-0337

8 Teeth Sprocket #41 Chai n

$

$

Not available

52

MTD 712-0273

Hex Jam L-Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

53

MTD 710-0190

Hex Bolt 5/16-18 x 4.0" Lg.

$7.99

$

Usually ships in 3-6 days

0

54

MTD 750-0324

Spacer 3.25" Lg.

$

$

Currently unavailable

55

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-0624

Hex Bolt 5/16-24 x 1.5" Lg.

$5.99

$

Usually ships in 3-6 days

0
