31229 - Gravely Mower Lift for 4-Wheel Tractor Mower Housing & Frame Parts Diagram

Mower Lift for 4-Wheel Tractor

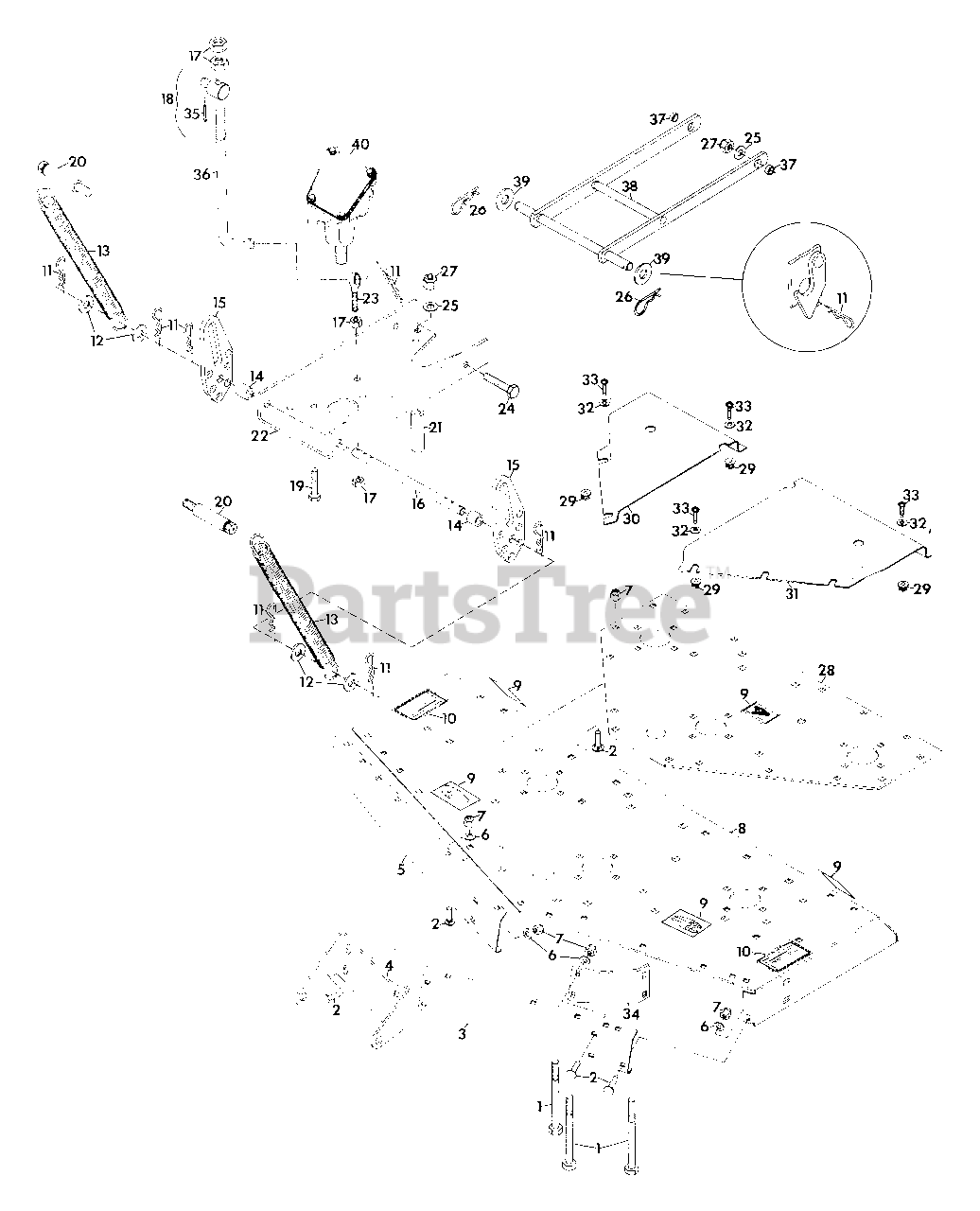

Mower Housing & Frame Parts Diagram

  • Title

1

Gravely 180192

Bolt Hex 1/2-13 x 3.500
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

2

Gravely 126390

Bolt 3/8-16 x .875 RD HD SQ NK
(Superseded to 06215800)

$3.99

$

Usually ships in 4-12 days

0

3

31344

Plate, Front Cover L.H.

$

$

Not available

4

31353

Bracket, Roller Front

$

$

Not available

5

31343

Plate, Front Cover R.H.

$

$

Not available

6

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 456004

Nut, Lock; 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

31330

Weldment, 60 Inch Deck

$

$

Not available

9

Gravely 31767

Decals, Height Adj. & Belt Layout

$

$

Not available

10

18549

Decal, Danger

$

$

Not available

11

15691

Cotter, Hair Pin

$

$

Not available

12

Gravely 131016

Washer, Flat .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

13

31689

Spring

$

$

Not available

14

31380

Spacer, Rod

$

$

Not available

15

31381

Plate, Leveling

$

$

Not available

16

31379

Rod, Support Plate

$

$

Not available

17

Gravely 120238

Nut, Jam 1/2-13 Hex
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

18

11317

Assembly, Mower Lift Pivot

$

$

Not available

19

Gravely 180173

Bolt, Hex; 1/2-13 x 1.000
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

20

31688

Pin Latch

$

$

Not available

21

Gravely 31367

Spacer

$

$

Currently unavailable

22

31373

Plate; Support

$

$

Not available

23

19350

Bolt, Eye

$

$

Not available

24

Gravely 180179

Bolt Hex 1/2-13 x 1.750
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 120396

Washer, Flat .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

26

10405

Pin, Hair

$

$

Not available

27

Gravely 435507

Nut, Lock; 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

28

31342

Plate, Deck Support

$

$

Not available

29

11777

Grommet, Plastic

$

$

Not available

30

31384

Cover, Belt R.H.

$

$

Not available

31

31385

Cover, Belt L.H.

$

$

Not available

32

Gravely 120392

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 160536

Screw, Mach 1/4-20 x .625 RD HD
(Superseded to 06113400)

$

$

Not available

34

31354

Baffle, Front

$

$

Not available

35

Gravely 142485

Pin, Groove; .125 x .625
(Superseded to 06706000)

$

$

Not available

36

Gravely 31387

Rod, Lift

$

$

Not available

37

31378

Bushing

$

$

Not available

38

31374

Weldment, Pivot Arm

$

$

Not available

39

Gravely 423315

Washer, Flat .813 x 1.375 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

40

See Mower Drive for Components

See Mower Drive for Components

$

$

Not available
