31229 - Gravely Mower Lift for 4-Wheel Tractor Mower Gage Wheels, Rollers, And Supports Parts Diagram

Mower Lift for 4-Wheel Tractor

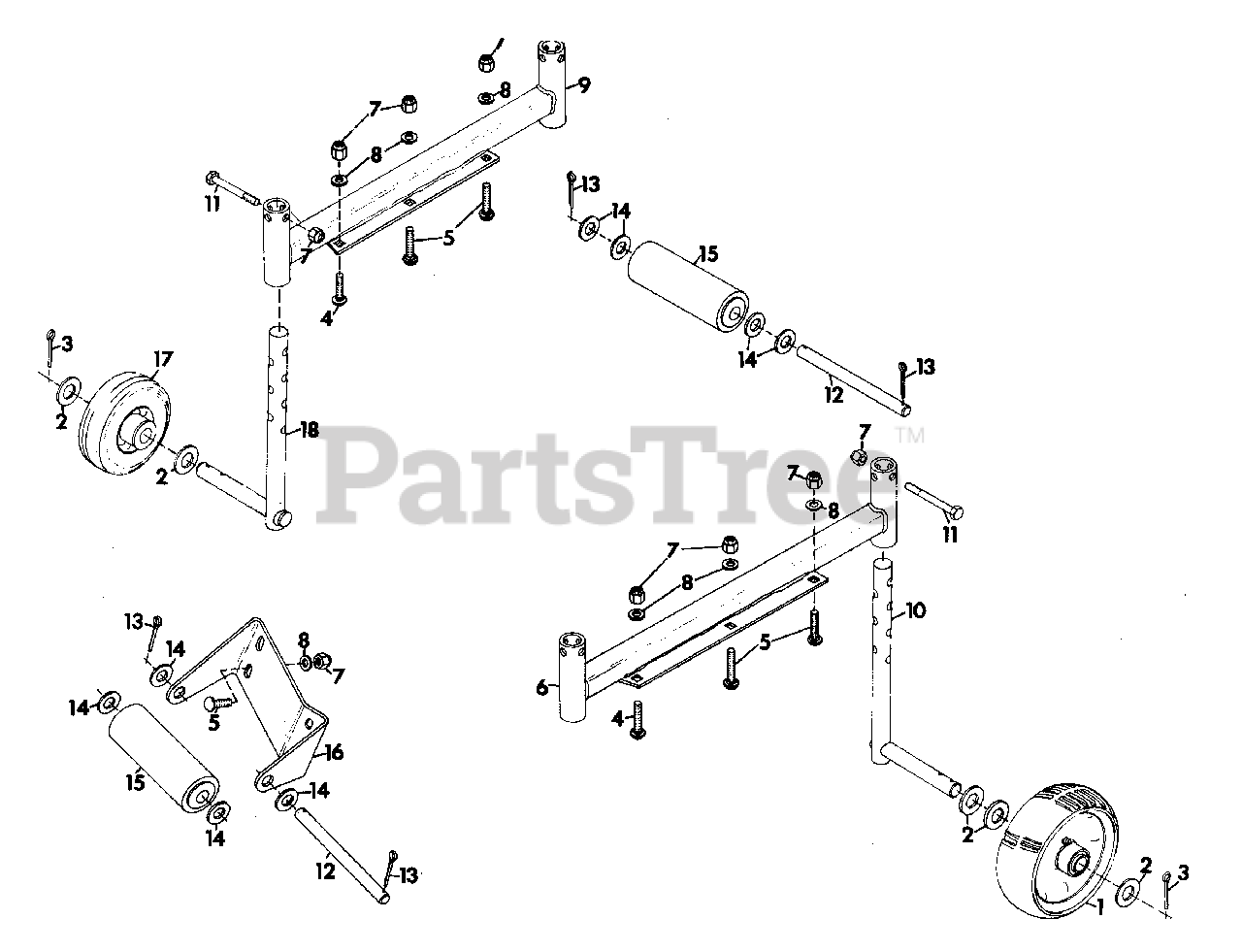

Mower Gage Wheels, Rollers, And Supports Parts Diagram

  • Title

1

31386

Gage Wheel 8.250

$

$

Not available

2

Gravely 423315

Washer Flat .813 x 1.375 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 137204

Pin, Cotter; 1/8 x 1.500
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 120915

Bolt 3/8-16 x 1.000 RD HD SQ NK

$

$

Not available

5

Gravely 126390

Bolt 3/8-16 x .875 RD HD SQ NK
(Superseded to 06215800)

$3.99

$

Usually ships in 4-12 days

0

6

31632

Support Left

$

$

Not available

7

Gravely 456004

Nut, Lock; 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

31633

Support Right

$

$

Not available

10

31347

Axle for 8.250 Gage Wheel

$

$

Not available

11

Gravely 180130

Bolt, Hex 3/8-16 x 2.000
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

12

24795

Shaft, Center Roller

$

$

Not available

13

Gravely 120123

Pin, Cotter 1/8 x 1.250
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 131016

Washer, Flat .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

15

31390

Roller, Gage

$

$

Not available

16

31353

Bracket, Roller Front

$

$

Not available

17

11386

Gage Wheel 6.000

$

$

Not available

18

31350

Axle for 6.000 Gage Wheel

$

$

Not available
