31210 - Toro 20" Snowhound Snow Thrower Attachment (SN: 001000001 - 001999999) (1971) 20" SNOWHOUND P. H. ASSEMBLY Parts Diagram

20" Snowhound Snow Thrower Attachment

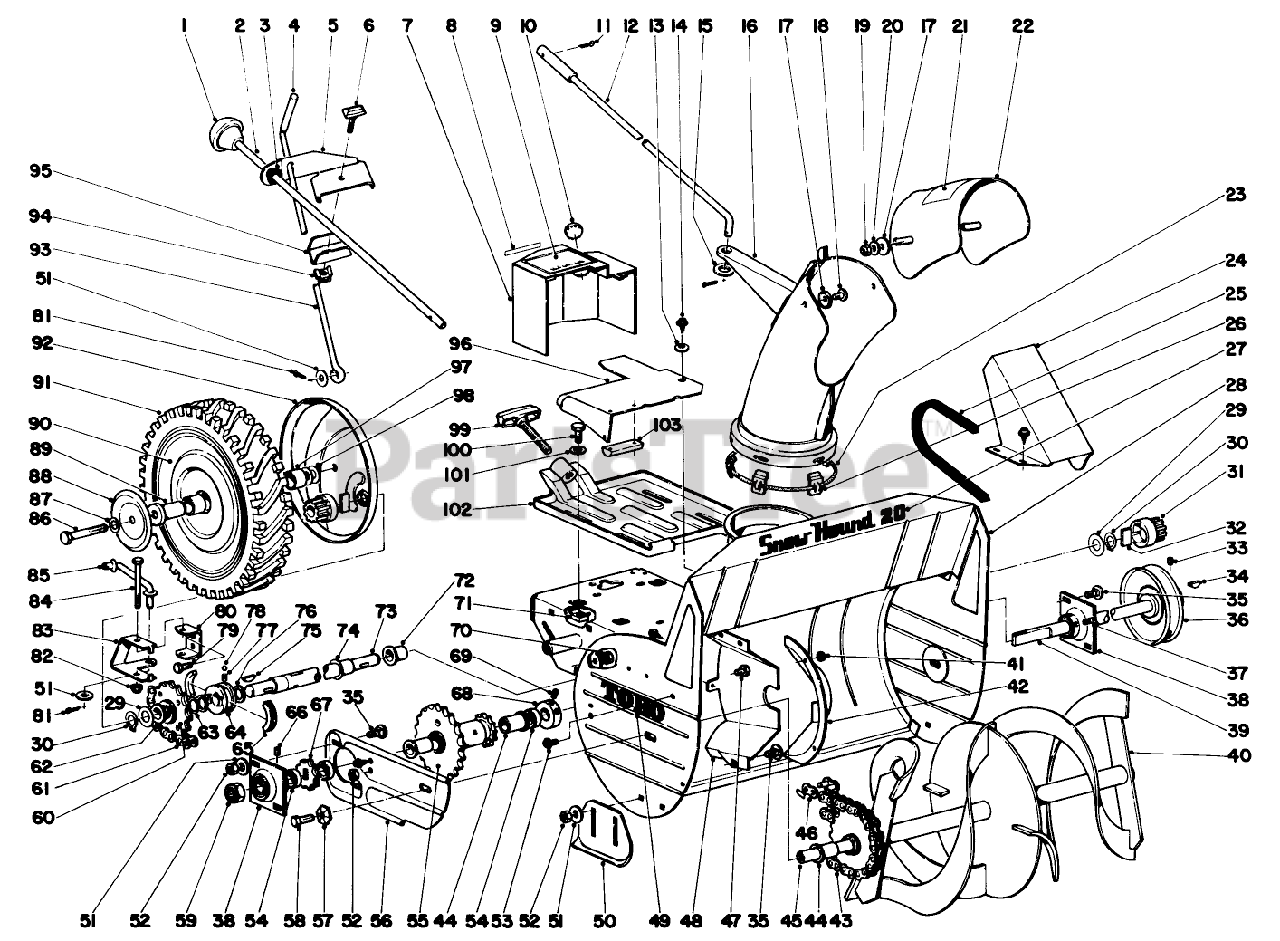

20" SNOWHOUND P. H. ASSEMBLY Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 3-6018

Control Rod Upper Chute

$

$

Currently unavailable

3

Toro 3-5975

Grommet

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Toro 3-6052

Bracket-Control

$

$

Currently unavailable

6

Toro 2-0470

Clamp Assembly

$

$

Currently unavailable

7

Toro 5-4420

Shroud-With Decal

$

$

Currently unavailable

8

Toro 5-4416

Decal Choke

$

$

Currently unavailable

9

Toro 5-4415

Decal-Start & Choke Inst.

$

$

Currently unavailable

10

Toro 2410-25

Plug Button

$

$

Currently unavailable

11

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

12

Toro 3-7393

Rod-Chute

$

$

Currently unavailable

13

Toro 3290-227

Washer

$

$

Currently unavailable

14

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

15

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

16

Toro 3-7392

Chute

$

$

Currently unavailable

17

Toro 3290-249

Washer

$

$

Currently unavailable

18

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

19

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3-1666

Decal

$

$

Currently unavailable

22

Toro 3-2596

Deflector

$

$

Not available

23

Toro 3-3927

Garter Spring

$

$

Not available

24

Toro 3-6058

Shroud Belt

$

$

Currently unavailable

25

$

$

Not available

26

$

$

Currently unavailable

27

Toro 3-6301

Decal

$

$

Not available

28

Toro 3-7438

Frame Incl. Ref. #72

$

$

Currently unavailable

29

Toro 5-1078

Washer

$

$

Not available

30

Toro 32120-91

Snap Ring

$

$

Currently unavailable

31

Toro 1-3669

Pinion Kit

$

$

Currently unavailable

32

Toro 2-3620

RATCHET DOG

$

$

Not available

33

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

34

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

35

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

36

Toro 3-2590

Pulley

$

$

Not available

37

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, only 2 left!

0

38

Toro 251-178

Bushing Flange Mounted

$

$

Not available

39

Toro 3-7383

Drive Shaft

$

$

Not available

40

Toro 3-7373

Rotor Incl. Ref. #44

$

$

Not available

41

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

42

Toro 3-7396

Guard-Rotor Chain

$

$

Not available

43

Toro 3-6014

Chain

$

$

Not available

44

Toro 256-146

Bushing

$

$

Not available

45

Toro 3-5997

ROTOR SHAFT

$

$

Not available

46

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

47

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

48

Toro 3-7397

Guard, Chain

$

$

Not available

49

Toro 3-1058

Decal

$

$

Not available

50

Toro 3-3866

Skid
(Superseded to 40-8160-01)

$23.99

$

In Stock, Qty 20+

0

51

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

53

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

54

Toro 3-7384

COSHAFT SPACER

$

$

Not available

55

Toro 3-7378

Sprocket (Incl. Ref. 7)

$

$

Not available

56

Toro 3-7387

Support-Bearing

$

$

Not available

57

Toro 3290-224

LOCKWASHER-PYRAMID

$36.99

$

Usually ships in 3-6 days

0

58

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

59

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

60

Toro 3-9240

Drive Sprocket Assembly

$

$

Not available

61

Toro 3-4015

Chain

$

$

Currently unavailable

62

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

63

Toro 3-1223

Thrust Washer

$

$

Currently unavailable

64

Toro 3-1631

Sliding Jaw

$

$

Currently unavailable

65

$

$

Not available

66

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

67

Toro 5-1076

Sprocket

$

$

Not available

68

Toro 3-5315

Collar

$

$

Not available

69

Toro 3246-3

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

70

Toro 3290-187

Locknut

$

$

Currently unavailable

71

$8.49

$

Usually ships in 3-6 days

0

72

Toro 34066

Bushing

$

$

Currently unavailable

73

Toro 3-3921

Drive Shaft

$

$

Not available

74

Toro 2-1640

Washer

$

$

Currently unavailable

75

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 7

0

76

Toro 32120-41

5/8X039 EX HD RING

$

$

Currently unavailable

77

Toro 2-4340

Spring

$

$

Currently unavailable

78

Toro 255-5

BALL-STEEL

$2.49

$

Usually ships in 3-6 days

0

79

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

80

Toro 3-6424

Pivot Support

$

$

Currently unavailable

81

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

82

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

83

Toro 3-6005

Fork Shift

$

$

Not available

84

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

85

Toro 3-6021

Link Shift

$

$

Not available

86

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

87

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

88

Toro 2-6700

Hub Cap

$

$

Currently unavailable

89

Toro 3-6006

Spindle Wheel

$

$

Not available

90

Toro 1-3899

Wheel Incl. Ref. #97

$

$

Currently unavailable

91

$

$

Not available

92

Toro 4-8540

Wheel Cover

$

$

Not available

93

Toro 3-6031

Control Rod Traction

$

$

Not available

94

Toro 3290-198

Retaining Nut

$

$

Currently unavailable

95

Toro 3-7395

Strap, Clamp

$

$

Currently unavailable

96

Toro 3-7382

Chain Guard

$

$

Currently unavailable

97

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

98

Toro 5-0744

WASHER

$

$

Not available

99

Toro 3-7454

Clamp Assy.

$

$

Currently unavailable

100

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

101

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

102

Toro 4-2010

Adapter Plate

$

$

Currently unavailable

103

Toro 3-6312

Chain Guide

$

$

Not available
