31201x98A - Murray 31" Lawn Tractor (1999) Engine Mount Parts Diagram

31" Lawn Tractor

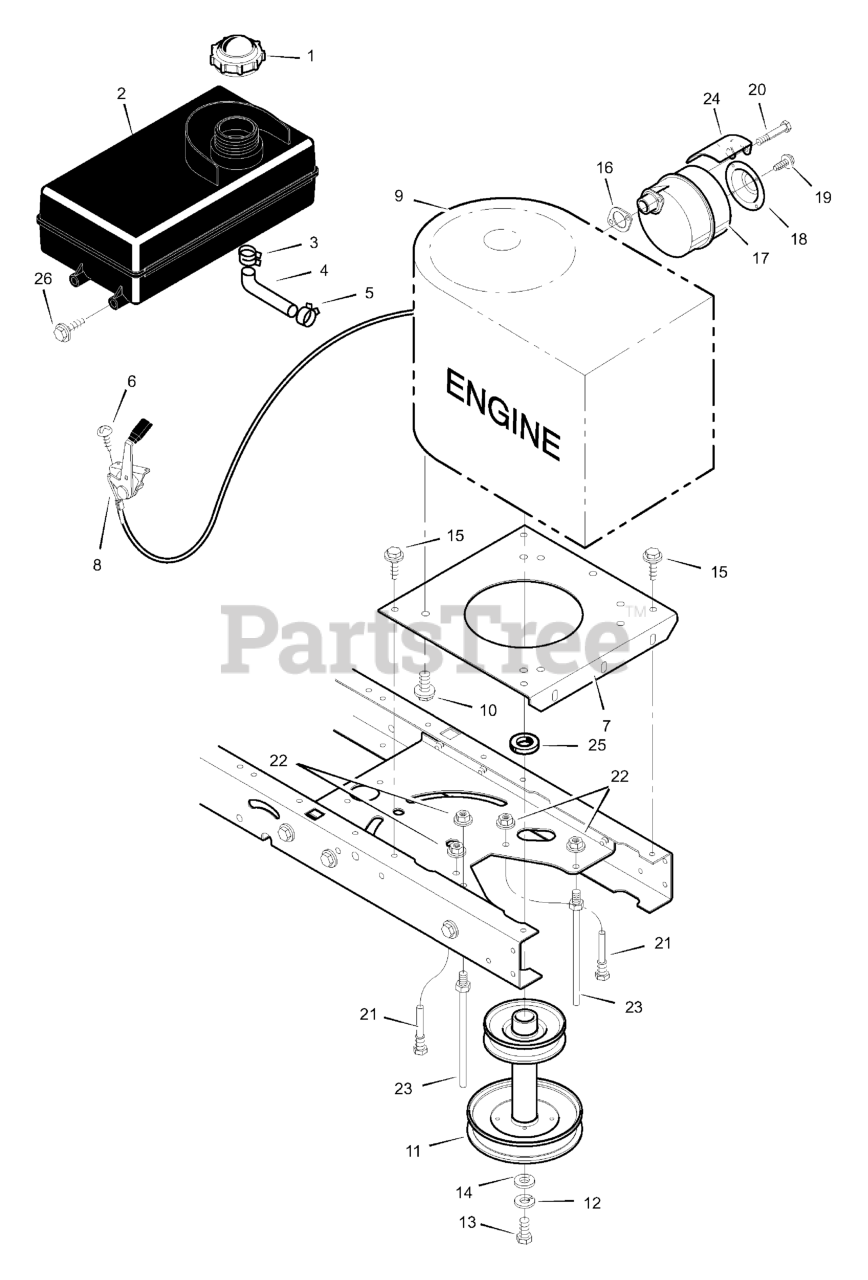

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

$10.99

$

In Stock, Qty 7

0

2

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 2 left!

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 023717

Fuel Line

$7.99

$

In Stock, Qty 20+

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 091989

Throttle Control

$

$

Not available

9

Engine

$

$

Not available

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 5

0

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

17

Murray 091271

Muffler

$52.99

$

Usually ships in 2-12 days

0

18

Murray 094099 Z

Deflector, Muffler

$

$

Currently unavailable

19

Murray 26X208MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 01X134MA

Bolt, Hex

$10.99

$

Usually ships in 2-12 days

0

21

Murray 093349MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79 Z

Nut, Flange

$

$

Currently unavailable

23

Murray 094066MA

Guide, Belt

$14.99

$

In Stock, only 2 left!

0

24

Murray 091277MA

Shield, Heat

$6.99

$

Usually ships in 2-12 days

0

26

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

25

Murray 093077MA

Spacer

$15.99

$

In Stock, only 1 left!

0
