31201x51C - Murray 30" Lawn Tractor (2001) Mower Housing Parts Diagram

30" Lawn Tractor

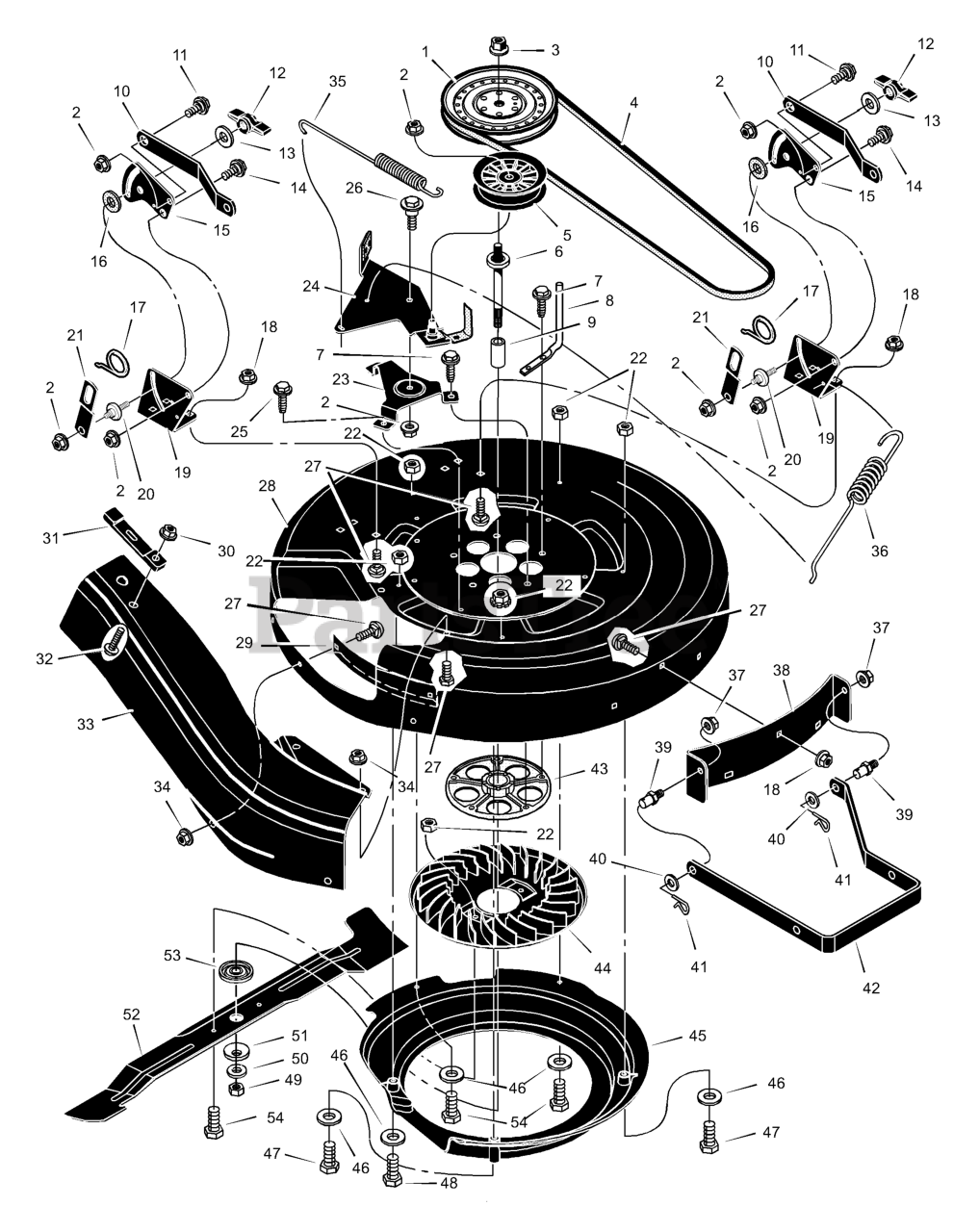

Mower Housing Parts Diagram

  • Title

1

Murray 690432MA

Pulley

$

$

Not available

2

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

3

Murray 15X121

Nut

$9.99

$

In Stock, Qty 7

0

4

Murray 037X74MA

Belt, Blade

$36.99

$

Usually ships in 2-12 days

0

5

Murray 690387MA

Pulley, Idler

$

$

Not available

6

Murray 094129

Mandrel

$21.99

$

In Stock, Qty 11

0

7

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

8

Murray 92424

Guide, Belt

$49.99

$

Usually ships in 2-12 days

0

9

Murray 094130MA

Spacer

$5.99

$

In Stock, Qty 12

0

10

Murray 094055E701MA

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

11

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 1 left!

0

12

Murray 094068MA

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

13

Murray 017X45MA

Washer

$

$

Not available

14

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

15

Murray 690379E700

Plate, Suspension

$27.99

$

Usually ships in 2-12 days

0

16

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

17

Murray 166X43MA

Spring

$4.99

$

In Stock, only 2 left!

0

18

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Murray 690378E700

Bracket, Rear Deck

$33.99

$

Usually ships in 2-12 days

0

20

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

21

Murray 94053

Link, Lift

$

$

Currently unavailable

22

Murray 15X116MA

Nut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

23

Murray 690427E700

Bracket, Idler Arm

$62.99

$

Usually ships in 2-12 days

0

24

Murray 690647

Assembly, Idler Arm & Pad

$18.99

$

In Stock, only 1 left!

0

25

Murray 26X249MA

Screw

$

$

Not available

26

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

27

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

28

Murray 690530E700

Housing, Blade

$

$

Currently unavailable

29

Murray 690399E700

Baffle

$

$

Not available

30

Murray 015X89MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

31

Murray 054695MA

Strap, Rubber

$10.99

$

Usually ships in 2-12 days

0

32

Murray 01X139MA

Screw

$3.49

$

In Stock, Qty 5

0

33

Murray 690367MA

Extension, Chute

$95.99

$

Usually ships in 2-12 days

0

34

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

35

Murray 165X118MA

Spring, PTO

$10.99

$

Usually ships in 2-12 days

0

36

Murray 165X140

Spring, Extension

$

$

Not available

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 690380E700

Bracket, Front Deck

$27.99

$

Usually ships in 2-12 days

0

39

Murray 094067MA

Pin, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

40

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

41

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

42

Murray 690381E700

Hanger, Front

$

$

Currently unavailable

43

Murray 094305

Housing, Jackshaft

$112.99

$

Usually ships in 2-12 days

0

44

Murray 690359MA

Fan, Assist

$

$

Not available

45

Murray 690360

SCREW
(Superseded to 84001963)

$3.99

$

In Stock, Qty 20+

0

46

Murray 017X37MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

47

Murray 001X94

Bolt

$

$

Not available

48

Murray 001X90MA

Bolt
(Superseded to 703588)

$3.99

$

In Stock, only 1 left!

0

49

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 10

0

50

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

51

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 18

0

52

Murray 690398E701MA

Blade
(Superseded to 1002068E701MA)

$45.99

$

Usually ships in 2-12 days

0

53

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, only 2 left!

0

54

Murray 01X121

Bolt

$

$

Not available
