312006x78B - Murray 30" Lawn Tractor (2006) Mower Housing Suspension Parts Diagram

30" Lawn Tractor

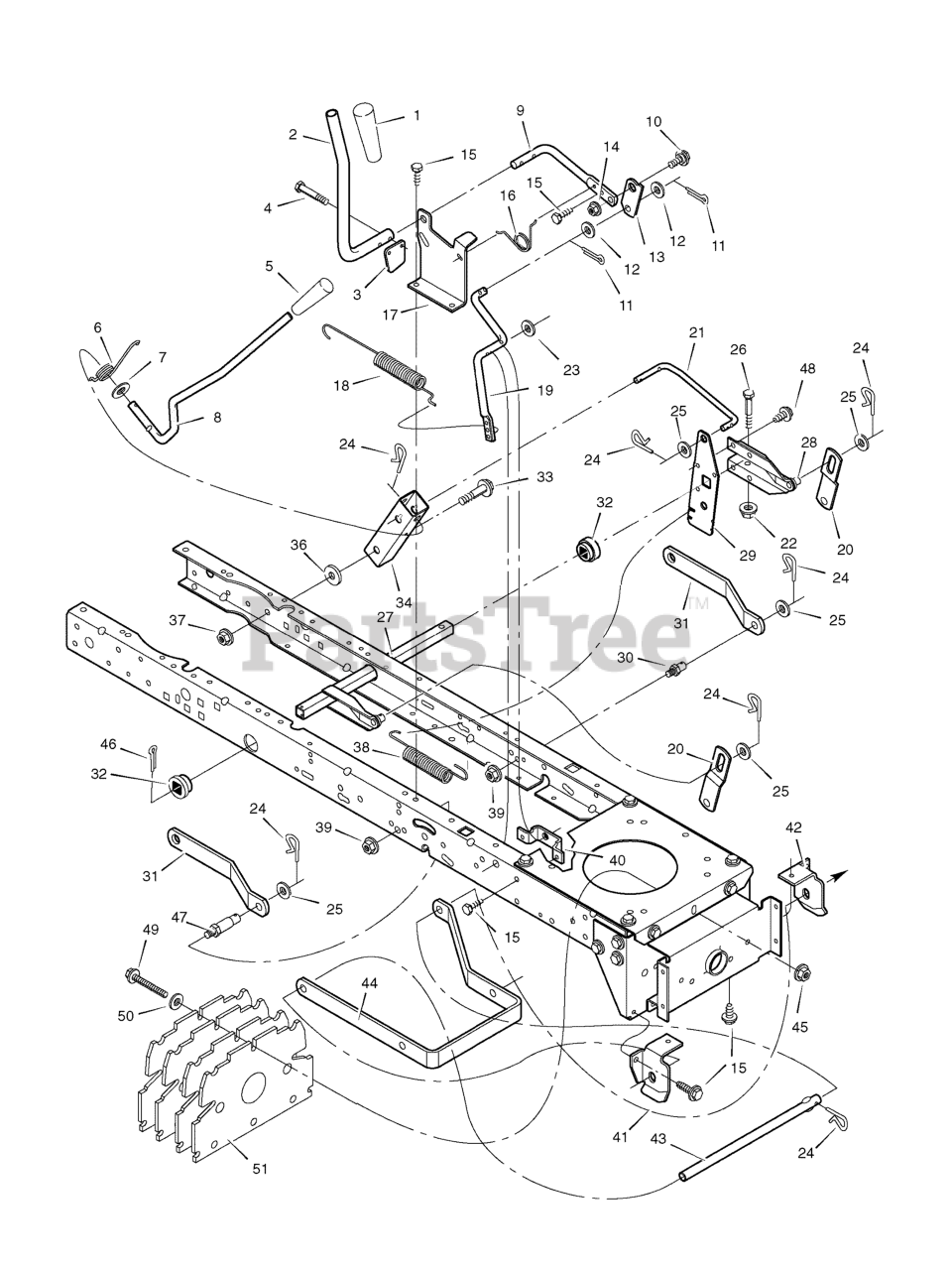

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 092698MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

2

Murray 094157ZMA

Handle, PTO

$40.99

$

Usually ships in 2-12 days

0

3

Murray 094022ZMA

Pad, Switch

$3.99

$

In Stock, only 3 left!

0

4

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

5

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

6

Murray 166X40MA

Spring

$6.49

$

Usually ships in 2-12 days

0

7

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

8

Murray 690533MA

Handle, Lift

$40.99

$

In Stock, only 1 left!

0

9

Murray 094017ZMA

Lever, PTO

$64.99

$

Usually ships in 2-12 days

0

10

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094004ZMA

Link, PTO

$16.99

$

Usually ships in 2-12 days

0

14

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 166X39MA

Spring

$5.49

$

Usually ships in 2-12 days

0

17

Murray 094018E701MA

Bracket, PTO

$10.99

$

Usually ships in 2-12 days

0

18

Murray 165X116MA

Spring

$8.49

$

Usually ships in 2-12 days

0

19

Murray 690394E701MA

Crank, PTO

$38.99

$

Usually ships in 2-12 days

0

20

Murray 094053E701MA

Link, Lift

$35.99

$

In Stock, only 1 left!

0

21

Murray 95285MA

Link, Lift Handle

$

$

Not available

22

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

23

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

24

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

26

Murray 001X74MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

27

Murray 690386E701MA

Arm Assembly, Right Lift

$51.99

$

Usually ships in 2-12 days

0

28

Murray 094180E701MA

Arm, Right Lift

$18.99

$

Usually ships in 2-12 days

0

29

Murray 094030E701MA

Plate, Lift Arm

$26.99

$

Usually ships in 2-12 days

0

30

Murray 094067MA

Pin
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

31

Murray 094055E701MA

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

32

Murray 094065MA

Bushing, Lift Tube

$4.49

$

Usually ships in 2-12 days

0

33

Murray 009X53MA

Bolt, Shoulder

$6.99

$

Usually ships in 2-12 days

0

34

Murray 094015E701MA

Bracket, Pivot

$70.99

$

Usually ships in 2-12 days

0

36

Murray 17X191MA

Washer

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 165X117MA

Spring

$15.99

$

In Stock, only 1 left!

0

39

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

40

Murray 094005E701MA

Bracket, PTO
(Superseded to 7300796ZMA)

$8.99

$

Usually ships in 2-12 days

0

41

Murray 094026E701MA

Hanger, Right Deck

$22.99

$

Usually ships in 2-12 days

0

42

Murray 094027E701MA

Hanger, Left Deck

$22.99

$

Usually ships in 2-12 days

0

43

Murray 094158ZMA

Rod, Hanger

$28.99

$

Usually ships in 2-12 days

0

44

Murray 1002067E701MA

Hanger, Front

$59.99

$

Usually ships in 2-12 days

0

45

Murray 015X89MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

46

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

47

Murray 690382MA

Pin, Threaded Shoulder

$9.99

$

Usually ships in 2-12 days

0

48

Murray 026X49MA

Screw

$4.49

$

In Stock, only 2 left!

0

49

Murray 01X106MA

Bolt, Hex
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

50

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

51

Murray 690370E701MA

Plate, Weight

Note: (4 Required)

$27.99

$

Usually ships in 2-12 days

0
