312006x51A (7800523) - Murray 30" Lawn Tractor (2009) Mower Housing Suspension Parts Diagram

30" Lawn Tractor

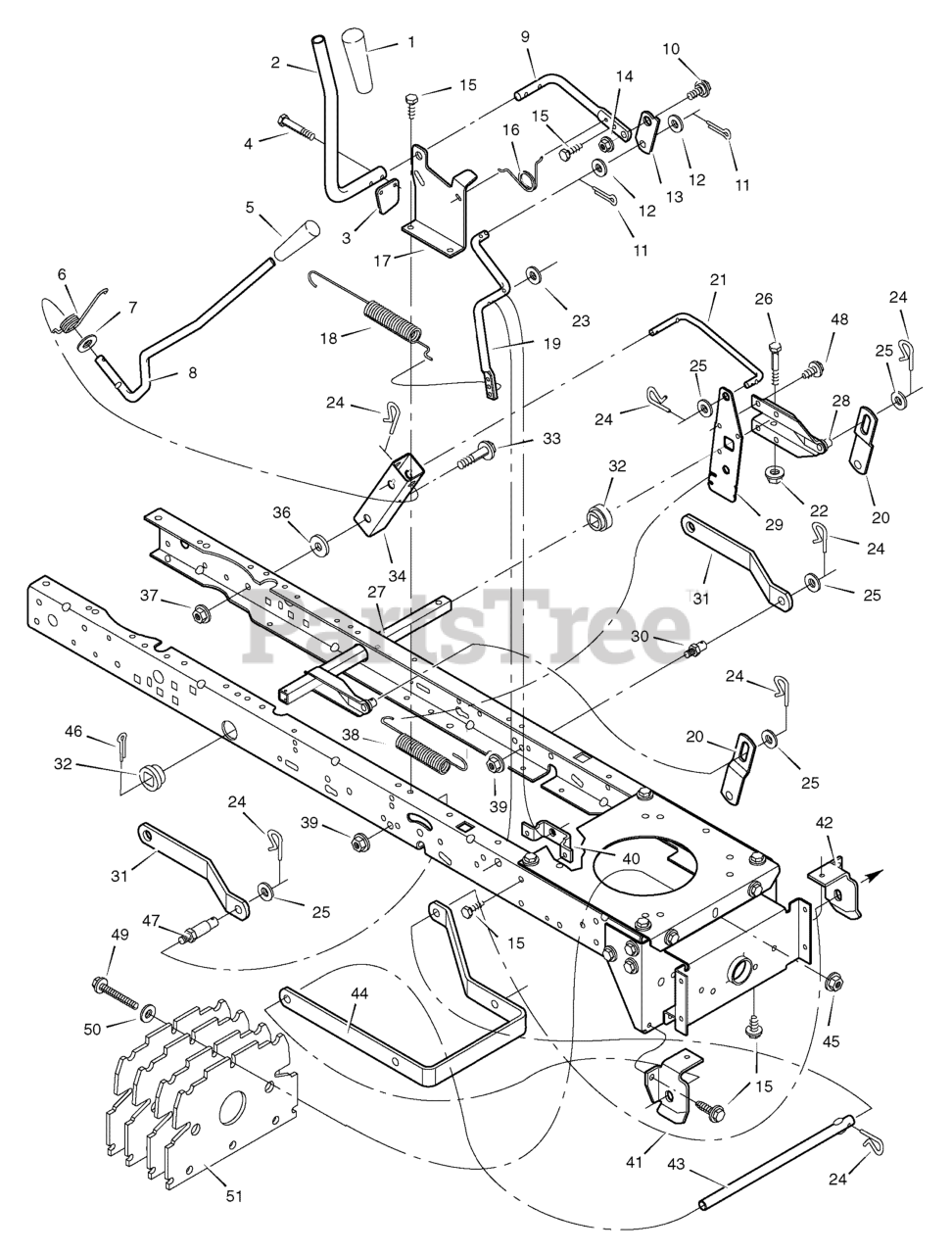

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 1741757MA

GRIP

$5.99

$

Usually ships in 2-12 days

0

2

Murray 094157ZMA

HANDLE, PTO

$40.99

$

Usually ships in 2-12 days

0

3

Murray 094022ZMA

PAD, Switch

$3.99

$

In Stock, only 3 left!

0

4

Murray 0025X3MA

SCREW, Hex

$4.99

$

Usually ships in 2-12 days

0

5

Murray 1741756MA

GRIP

$5.99

$

Usually ships in 2-12 days

0

6

Murray 166X40MA

SPRING

$6.49

$

Usually ships in 2-12 days

0

7

Murray 17X103MA

WASHER

$4.99

$

In Stock, only 2 left!

0

8

Murray 690533MA

HANDLE, Lift

$40.99

$

In Stock, only 1 left!

0

9

Murray 094017ZMA

LEVER, PTO

$64.99

$

Usually ships in 2-12 days

0

10

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 5

0

11

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 017X57MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

13

Murray 690277MA

LINK, PTO

$63.99

$

In Stock, only 1 left!

0

14

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 26X249MA

SCREW

$

$

Not available

16

Murray 166X39MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

17

Murray 7300821TMA

BRACKET, PTO

$12.99

$

Usually ships in 2-12 days

0

18

Murray 165X116MA

SPRING

$8.49

$

Usually ships in 2-12 days

0

19

Murray 690394E701MA

CRACK, PTO

$38.99

$

Usually ships in 2-12 days

0

20

Murray 7300791ZMA

LINK, Lift

$20.99

$

Usually ships in 2-12 days

0

21

Murray 95285MA

LINK, Lift Handle

$

$

Not available

22

Murray 15X118MA

NUT, Flange

$4.49

$

Usually ships in 2-12 days

0

23

Murray 017X57MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

24

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Murray 017X91MA

WASHER

$5.49

$

In Stock, Qty 11

0

26

Murray 001X74MA

BOLT, Hex

$3.49

$

Usually ships in 2-12 days

0

27

Murray 690386E701MA

ARM ASSEMBLY, Right Lift

$51.99

$

Usually ships in 2-12 days

0

28

Murray 7400254ZYP

LIFTER TUBE ASSEMBLY

$54.99

$

Usually ships in 2-12 days

0

29

Murray 7300837ZMA

Plate, Lift Arm

$22.99

$

Usually ships in 2-12 days

0

30

Murray 094067MA

PIN
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

31

Murray 7300826ZMA

BRACKET, Rear Suspension
(Superseded to 7300826BMYP)

$15.99

$

Usually ships in 2-12 days

0

32

Murray 094065MA

Bushing, Lift Tube

$4.49

$

Usually ships in 2-12 days

0

33

Murray 009X53MA

BOLT, Shoulder

$6.99

$

Usually ships in 2-12 days

0

34

Murray 7300819ZMA

BRACKET, Pivot

$12.99

$

Usually ships in 2-12 days

0

36

Murray 17X191MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 165X117MA

SPRING

$15.99

$

In Stock, only 1 left!

0

39

Murray 015X68MA

NUT, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

40

Murray 7300796ZMA

BRACKET, PTO

$8.99

$

Usually ships in 2-12 days

0

41

Murray 7300861ZMA

HANGER, Right Deck

$10.99

$

Usually ships in 2-12 days

0

42

Murray 7300860ZMA

HANGER, Left Deck

$

$

Not available

43

Murray 094158ZMA

ROD, Hanger

$28.99

$

Usually ships in 2-12 days

0

44

Murray 7300784ZMA

HANGER, Front

$71.99

$

Usually ships in 2-12 days

0

45

Murray 015X89MA

NUT, Flange

$4.49

$

Usually ships in 2-12 days

0

46

Murray 030X49MA

PIN, Cotter

$4.49

$

In Stock, Qty 11

0

47

Murray 690382MA

PIN, Threaded Shoulder

$9.99

$

Usually ships in 2-12 days

0

48

Murray 026X49MA

SCREW

$4.49

$

In Stock, only 2 left!

0

49

Murray 01X106MA

BOLT, Hex
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

50

Murray 017X38MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

51

Murray 7300848ZMA

PLATE, Weight

Note: (4 Required)

$45.99

$

Usually ships in 2-12 days

0
