312006x51A (7800523) - Murray 30" Lawn Tractor (2009) Grass Bagger Parts Diagram

30" Lawn Tractor

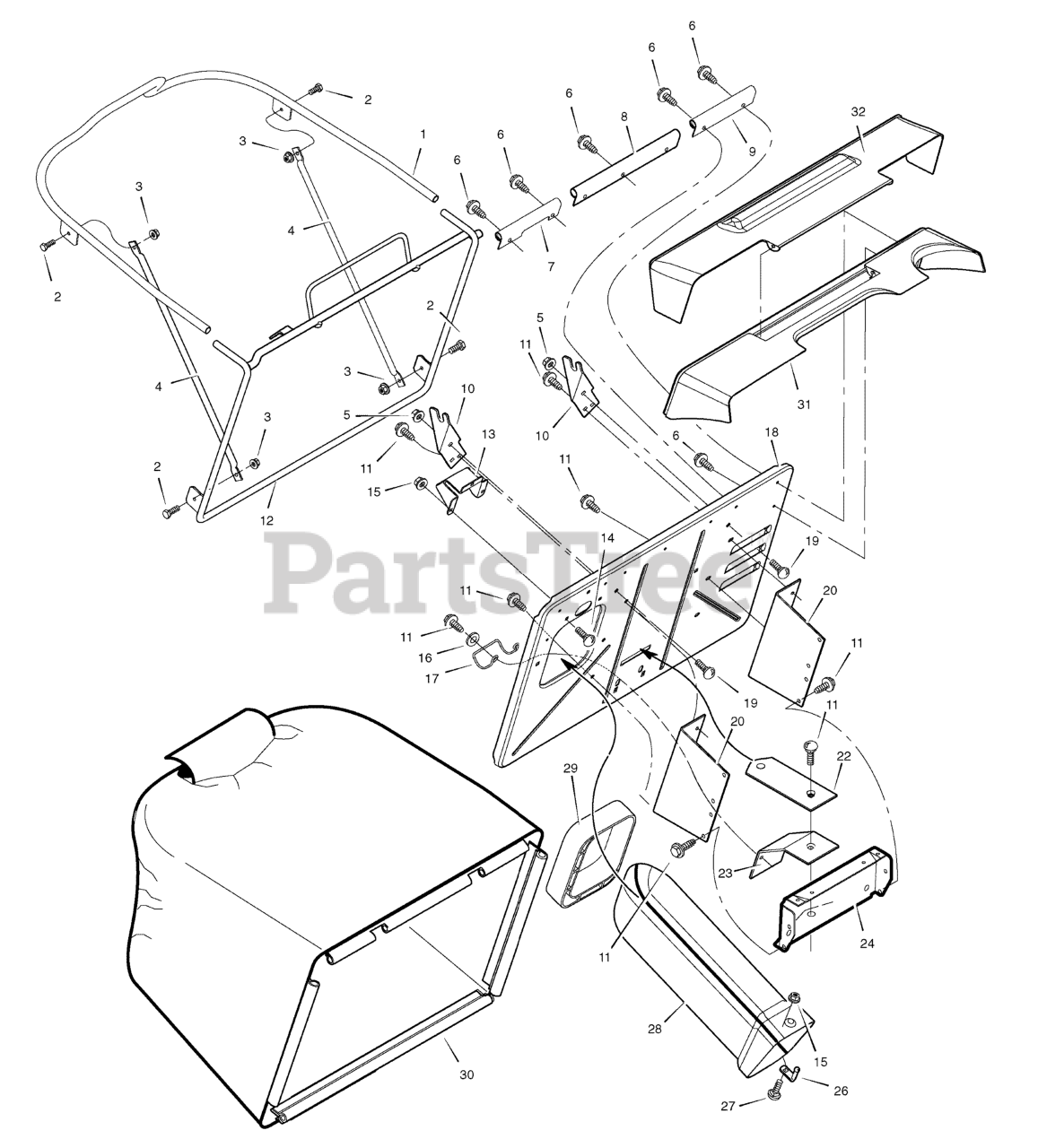

Grass Bagger Parts Diagram

  • Title

1

Murray 690404MA

TUBE, Top

$490.99

$

Usually ships in 2-12 days

0

2

Murray 01X121MA

BOLT
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

3

Murray 15X116MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Murray 690433MA

STRUT, Bag

$18.99

$

Usually ships in 2-12 days

0

5

Murray 7090585MA

NUT, Flange

$3.99

$

In Stock, Qty 7

0

6

Murray 0193X1MA

FASTENER, Panel

$3.99

$

In Stock, only 1 left!

0

7

Murray 690491MA

SEAL, Bag (Right End)

$7.49

$

Usually ships in 2-12 days

0

8

Murray 690492MA

SEAL, Bag (Center)

$7.49

$

Usually ships in 2-12 days

0

9

Murray 690493MA

SEAL, Bag (Left End)

$7.49

$

Usually ships in 2-12 days

0

10

Murray 7300785ZMA

HINGE

$18.99

$

Usually ships in 2-12 days

0

11

Murray 26X249MA

SCREW

$

$

Not available

12

Murray 885167YP

ASSEMBLY, Bag Frame

$250.99

$

Usually ships in 2-12 days

0

13

Murray 7300768ZMA

BRACKET, Switch

$25.99

$

Usually ships in 2-12 days

0

14

Murray 002X82MA

BOLT, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

15

Murray 015X89MA

NUT, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 17X185MA

WASHER
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

17

Murray 690402MA

LATCH, Spring

$5.49

$

Usually ships in 2-12 days

0

18

Murray 885165YP

PANEL, Rear

$125.99

$

Usually ships in 2-12 days

0

19

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

20

Murray 7300731ZMA

BRACKET, Bagger Mounting

$49.99

$

Usually ships in 2-12 days

0

22

Murray 7300835ZMA

PLATE, Hitch

$14.99

$

Usually ships in 2-12 days

0

23

Murray 7300757ZMA

BRACKET, Lower Mounting

$47.99

$

Usually ships in 2-12 days

0

24

Murray 7300864ZMA

PLATE, Hitch

$41.99

$

Usually ships in 2-12 days

0

26

Murray 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

27

Murray 002X39MA

BOLT, Carriage

$3.49

$

In Stock, only 1 left!

0

28

Murray 690368MA

TUBE, Connecting

$98.99

$

Usually ships in 2-12 days

0

29

Murray 690429MA

GROMMET, Extension Tube

$15.99

$

Usually ships in 2-12 days

0

30

Murray 690438MA

BAG, Grass

$

$

Not available

31

Murray 885163YP

BAGGER COVER, Front

$39.99

$

Usually ships in 2-12 days

0

32

Murray 885164YP

BAGGER COVER, Rear

$60.99

$

Usually ships in 2-12 days

0
