312006x50B-SW - Murray 30" Lawn Tractor (2006) Grass Bagger Parts Diagram

30" Lawn Tractor

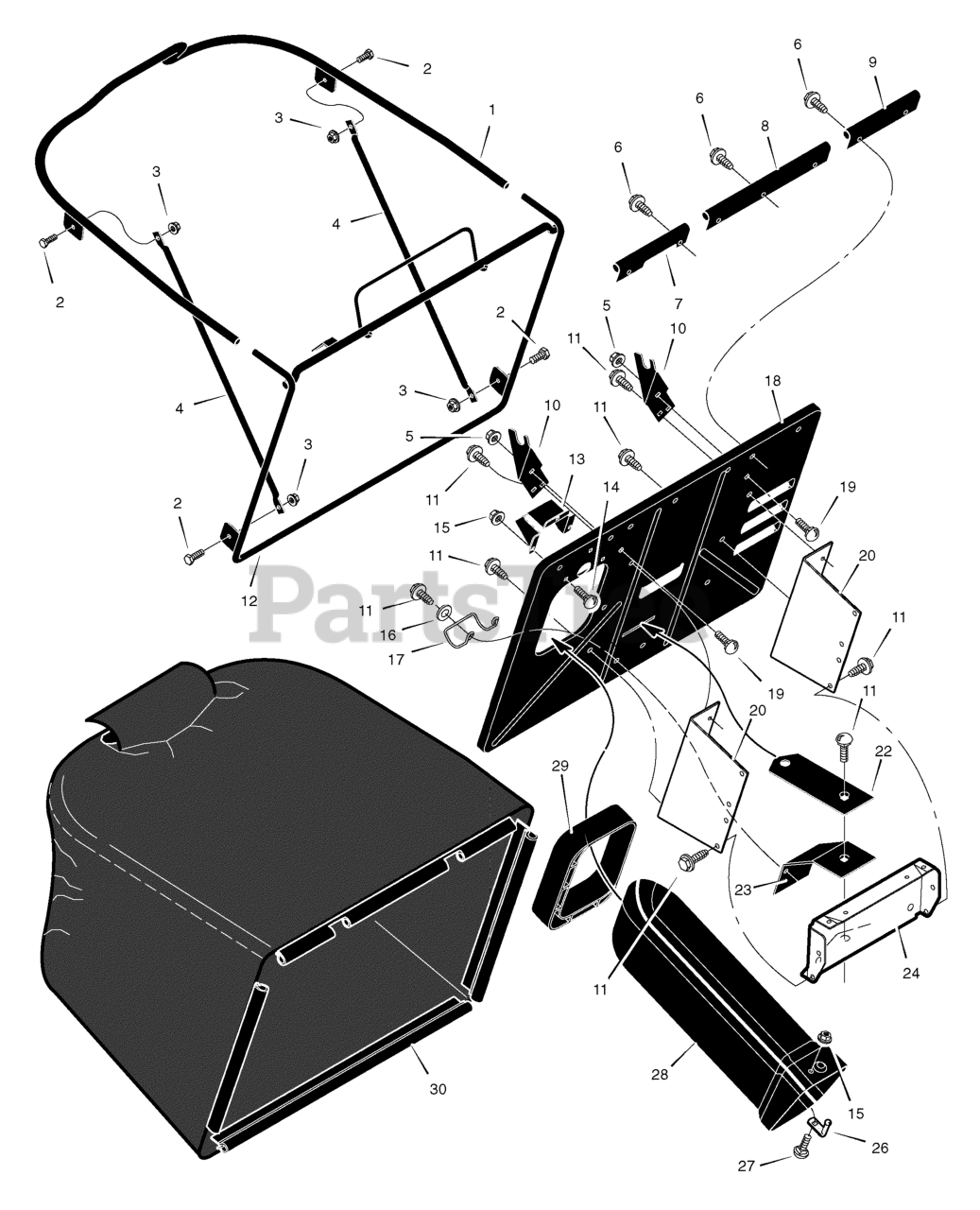

Grass Bagger Parts Diagram

  • Title

1

Murray 690404MA

Tube, Top

$490.99

$

Usually ships in 2-12 days

0

2

Murray 01X121MA

Bolt
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

3

Murray 15X116MA

Nut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Murray 690433MA

Strut, Bag

$18.99

$

Usually ships in 2-12 days

0

5

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 0193X2MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

7

Murray 690491MA

Seal, Bag (Right End)

$7.49

$

Usually ships in 2-12 days

0

8

Murray 690492MA

Seal, Bag (Center)

$7.49

$

Usually ships in 2-12 days

0

9

Murray 690493MA

Seal, Bag (Left End)

$7.49

$

Usually ships in 2-12 days

0

10

Murray 690356E701MA

Hinge

$6.99

$

Usually ships in 2-12 days

0

11

Murray 26X249MA

Screw

$

$

Not available

12

Murray 690403MA

Assembly, Bag Frame

$307.99

$

Usually ships in 2-12 days

0

13

Murray 690400E701MA

Bracket, Switch

$27.99

$

Usually ships in 2-12 days

0

14

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

15

Murray 015X89MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 17X185MA

Washer
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

17

Murray 690402MA

Latch, Spring

$5.49

$

Usually ships in 2-12 days

0

18

Murray 690362E701MA

Pan, Rear

$170.99

$

Usually ships in 2-12 days

0

19

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

20

Murray 690355E701MA

Bracket, Bagger Mounting

$30.99

$

Usually ships in 2-12 days

0

22

Murray 1001000E701MA

Plate, Hitch

$9.49

$

Usually ships in 2-12 days

0

23

Murray 1001001E701MA

Bracket, Lower Mounting

$13.99

$

Usually ships in 2-12 days

0

24

Murray 1001002E701MA

Plate, Hitch

$

$

Not available

26

Murray 054563MA

Pin, Latch

$23.99

$

In Stock, only 2 left!

0

27

Murray 002X39MA

Bolt, Carriage

$3.49

$

In Stock, only 1 left!

0

28

Murray 690368MA

Tube, Connecting

$98.99

$

Usually ships in 2-12 days

0

29

Murray 690429MA

Grommet, Extension Tube

$15.99

$

Usually ships in 2-12 days

0

30

Murray 690438MA

Bag, Grass

$

$

Not available
