312006x190B (7800290) - Briggs & Stratton 30" Lawn Tractor (2007) Chassis & Hood Parts Diagram

30" Lawn Tractor

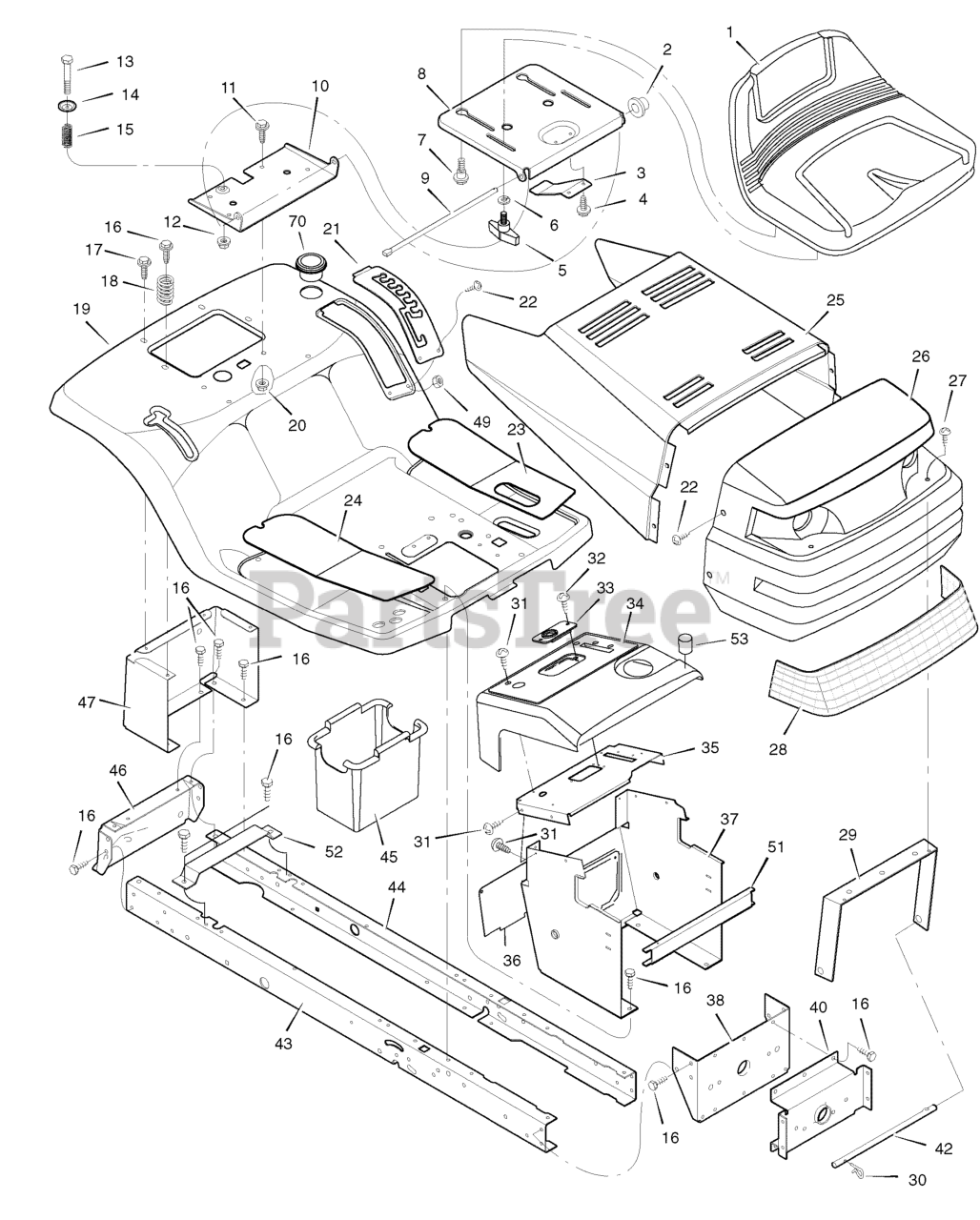

Chassis & Hood Parts Diagram

  • Title
1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E701MA

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$3.99

$

Usually ships in 2-12 days

0

15

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

$267.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094151E701MA

Plate, Index

$16.99

$

Usually ships in 2-12 days

0

22

$5.49

$

In Stock, only 1 left!

0

23

Murray 1001582MA

Mat, Left

$24.99

$

Usually ships in 2-12 days

0

24

Murray 1001578MA

Mat, Right

$23.99

$

Usually ships in 2-12 days

0

$273.99

$

Usually ships in 2-12 days

0

26

Murray 092350MA

Grille

Note: (Includes Ref. No. 28)

$

$

Not available

27

Murray 26X239MA

Screw, 1/2 x .75

$4.49

$

Usually ships in 2-12 days

0

28

Murray 092344MA

Lens

Note: (Includes Ref. No. 26)

$79.99

$

Usually ships in 2-12 days

0

29

Murray 092448MA

Brace, Grille

$

$

Not available

30

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094214MA

Bearing, Steering

$4.99

$

Usually ships in 2-12 days

0

34

$101.99

$

Usually ships in 2-12 days

0

35

Murray 094211MA

Plate, Dash

$26.99

$

Usually ships in 2-12 days

0

36

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095323E701MA

Support, Dash

$142.99

$

Usually ships in 2-12 days

0

38

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

42

Murray 092332ZMA

Rod, Pivot

$27.99

$

Usually ships in 2-12 days

0

43

Murray 1001928E701MA

Frame, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701MA

Frame, Left
(Superseded to 1001269E701MA)

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701MA

Plate, Hitch

$

$

Not available

47

Murray 690434E701MA

Panel, Rear

$85.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

51

$16.99

$

Usually ships in 2-12 days

0

52

Murray 690482E701MA

Support, Battery

$

$

Not available

53

$3.49

$

Usually ships in 2-12 days

0

55

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray 1740335

Instruction Book

$

$

Currently unavailable

--

Murray 1740359

Manual, Parts

$

$

Currently unavailable
