312002x11B - Murray 30" Lawn Tractor (2005) Mower Housing Parts Diagram

30" Lawn Tractor

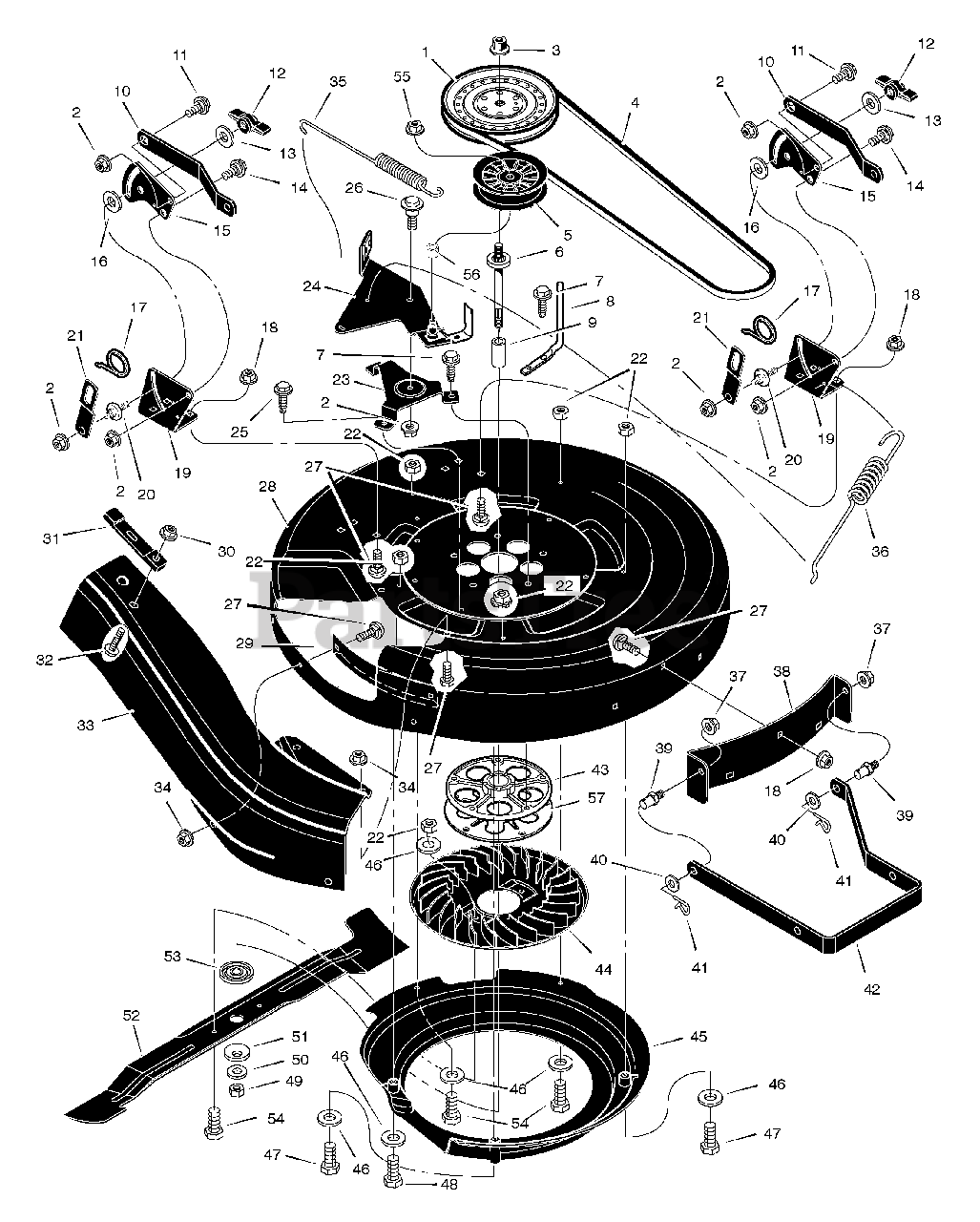

Mower Housing Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray MU015X84

NUT, Flange

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray MU037X74

BELT, Blade

$

$

Currently unavailable

5

Murray MU690387

PULLEY, Idler

$

$

Currently unavailable

6

Murray MU094129

Mandrel

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Murray MU092424

GUIDE, Belt

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Murray MU094055E701

BRACKET, Rear Suspension

$

$

Currently unavailable

11

Murray MU009X52

BOLT, Shoulder

$

$

Currently unavailable

12

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Murray MU009X51

BOLT, Shoulder

$

$

Currently unavailable

15

Murray MU690379E700

Plate, Suspension

$

$

Currently unavailable

16

Murray MU094137

Pad, Friction

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Murray MU015X79

NUT, Flange

$

$

Currently unavailable

19

Murray MU690378E700

BRACKET, Rear Deck

$

$

Currently unavailable

20

Murray MU095194

PIN, Hanger

$

$

Currently unavailable

21

$

$

Currently unavailable

$

$

Currently unavailable

23

Murray MU690427E700

BRACKET, Idler Arm

$

$

Currently unavailable

24

Murray MU1002076

ASSEMBLY, Idler Arm & Pad

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Murray MU009X39

BOLT, Shoulder

$

$

Currently unavailable

27

Murray MU002X64

BOLT, Carriage

$

$

Currently unavailable

28

Murray MU690530E700

Housing, Blade

$

$

Currently unavailable

$

$

Currently unavailable

30

Murray MU015X89

NUT, Flange

$

$

Currently unavailable

31

Murray MU054695

Strap, Rubber

$

$

Currently unavailable

32

$

$

Currently unavailable

33

$

$

Currently unavailable

$

$

Currently unavailable

35

Murray MU165X118

SPRING, PTO

$

$

Currently unavailable

36

Murray MU165X140

SPRING, Extension

$

$

Currently unavailable

37

Murray MU015X84

NUT, Flange

$

$

Currently unavailable

38

Murray MU690380E700

BRACKET, Front Deck

$

$

Currently unavailable

39

Murray MU094067

PIN, Threaded Shoulder

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Murray MU0031X4

PIN, Hair

$

$

Currently unavailable

42

Murray MU1002067E700

HANGER, Front

$

$

Currently unavailable

43

Murray MU1401275

Housing, Jackshaft

$

$

Currently unavailable

44

Murray MU690359

Fan, Assist

$

$

Currently unavailable

45

Murray MU1001237E701

Housing, Fan

$

$

Currently unavailable

46

$

$

Currently unavailable

47

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

50

$

$

Currently unavailable

51

Murray MU17X166

WASHER, Belleville

$

$

Currently unavailable

$

$

Currently unavailable

53

Murray MU092466

Adapter, Blade

$

$

Currently unavailable

54

$

$

Currently unavailable

55

Murray MU015X98

NUT, Flange

$

$

Currently unavailable

56

$

$

Currently unavailable

57

Murray MU1001952E701MA

Plate, Jackshaft Support

$

$

Currently unavailable

1-57

Murray MU776110

Blade Housing, Complete

$

$

Currently unavailable
