312002x11A - Murray 31" Lawn Tractor (2004) Engine Mount Parts Diagram

31" Lawn Tractor

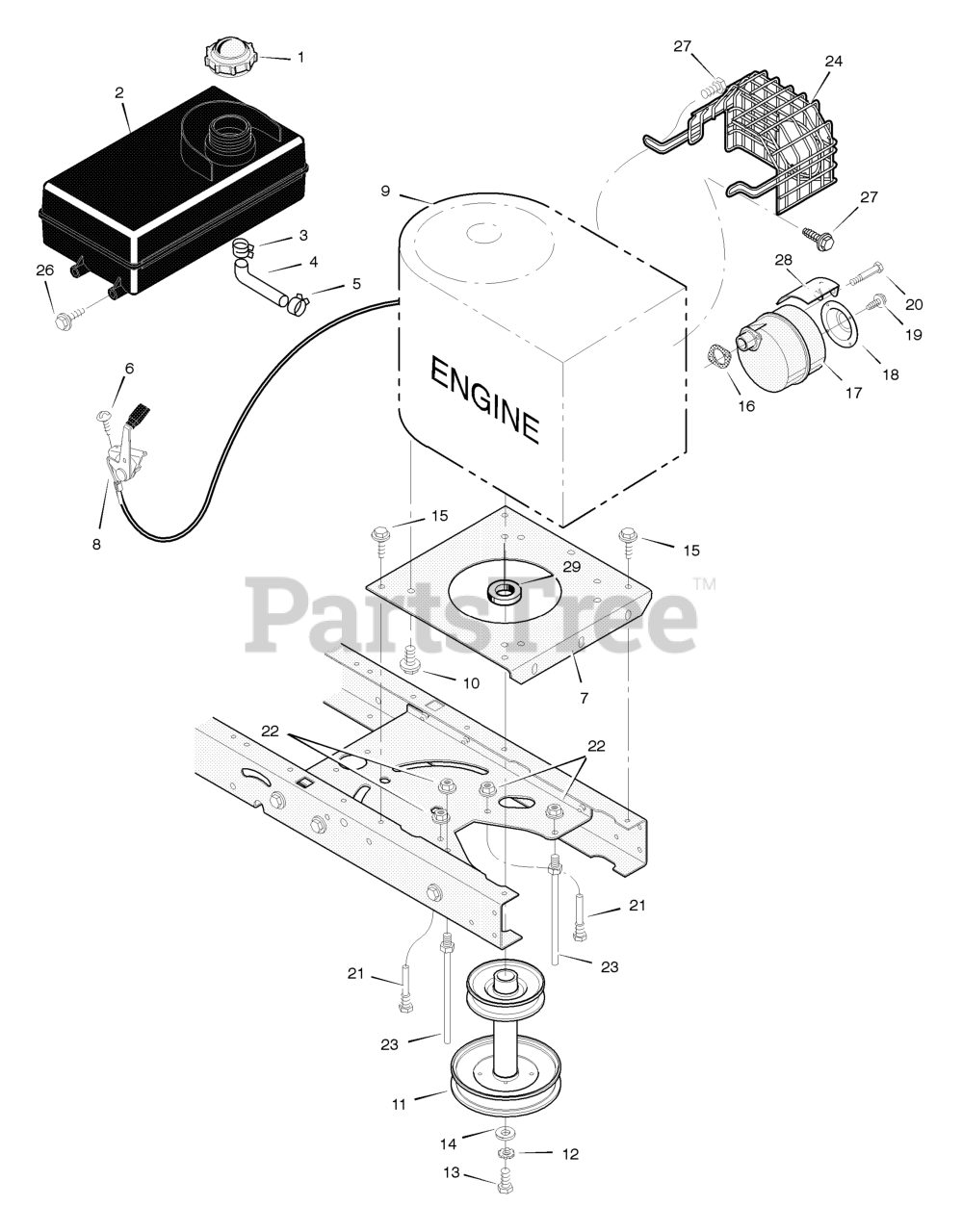

Engine Mount Parts Diagram

  • Title

1

Murray MU092317

Fuel Cap

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

2

Murray MU690280

Fuel Tank

$

$

Currently unavailable

3

Murray MU095197

Hose Clamp

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

4

Murray MU7601033

FUEL LINE (Must cut to length)

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

5

Murray MU095197

Hose Clamp

$

$

Currently unavailable

6

Murray MU26X201

SCREW

$

$

Currently unavailable

7

Murray MU094006E701

Plate, Engine

$

$

Currently unavailable

8

Murray MU092371

Throttle Control

$

$

Currently unavailable

9

Engine, Briggs & Stratton *

$

$

Not available

10

Murray MU0025X7

BOLT, Engine Mount

$

$

Currently unavailable

11

Murray MU690439 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray MU019X35

LOCKWASHER

$

$

Currently unavailable

13

Murray MU01X140

BOLT, Hex

$

$

Currently unavailable

14

Murray MU17X170

WASHER

$

$

Currently unavailable

15

Murray MU26X249

SCREW

$

$

Currently unavailable

16

Murray MU692236

Gasket

$

$

Currently unavailable

17

Murray MU091271

Muffler

$

$

Currently unavailable

18

Murray MU1001350

Deflector, Muffler

$

$

Currently unavailable

19

Murray MU26X208

SCREW

$

$

Currently unavailable

20

Murray MU01X134

BOLT, Hex

$

$

Currently unavailable

21

Murray MU093349

GUIDE, Belt

$

$

Currently unavailable

22

Murray MU015X79

NUT, Flange

$

$

Currently unavailable

23

Murray MU094066

GUIDE, Belt

$

$

Currently unavailable

24

Murray MU10015950 Z

SHIELD, Heat

$

$

Currently unavailable

26

Murray MU26X253

SCREW

$

$

Currently unavailable

27

Murray MU26X263

SCREW

$

$

Currently unavailable

28

Murray MU091277

SHIELD, Heat

$

$

Currently unavailable

29

Murray MU093077

SPACER, Engine

$

$

Currently unavailable
